AcousticCoverage Series
AcousticCoverage™ is designed to offer sound system designers and installers a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical paging or BGM class products. Achieveing remarkable performance for the cost, AcousticCoverage is ideally suited for wide area deployments such as office buildings, healthcare facilities, transportation terminals, and other cost sensitive installations.
High quality transducers provide exceptional clarity through the critical voice range.
Ported baffle for increased low frequency extension.*
Low saturation 70/100V transformers with 8 ohm bypass.
Advanced voicing filter sets using Intrinsic Correction™ via Q-SYS™ Platform.
Available in White (RAL 9010).
SELECT A MODEL
| AC-C4T | AC-C6T | AC-C8T | |
|---|---|---|---|
| Frequency Range, -10 dB (Hz) |
70 Hz - 16 KHz | 65 Hz - 20 KHz | 52 Hz - 20 KHz |
| Nominal Coverage | 140° conical | 110° conical | 100° conical |
| Rated noise power1 | 16 W | 30 W | 80 W |
| Broad-band sensitivity2 | 89 dB | 89 dB | 89 dB |
| Driver | 4.5-inch polypropylene cone with rubber surround | 6.5-inch polypropylene cone with rubber surround | 8-inch polypropylene cone with rubber surround |
| Transformer Taps |
70 V: 16, 8, 4, 2, 1 W 100 V: 16, 8, 4, 2, 1 W 8Ω Externally Selectable |
70 V: 30, 15, 7.5, 3.7, 1.9 W 100V: 30, 15, 7.5, 3.8, 1 W 8Ω Externally Selectable |
70 V: 60, 30, 15, 7.5, 3.8 W 100 V: 60, 30, 15, 7.5 W 8Ω Externally Selectable |
| Input Connectors | Euroblock connector with parallel output terminals | Euroblock connector with parallel output terminals | Euroblock connector with parallel output terminals |
| Dimensions (WD) inches | 8.4 × 7.9 in | 10.24 × 8.4 in | 12.4 × 11.3 in |
| Dimensions (WD) mm | 214 × 201 mm | 260 × 213 mm | 381 × 381 mm |
| Net Weight | 4.9 lb / 2.22 kg | 7.6 lb / 3.5 kg | 11.5 lb / 5.2 kg |

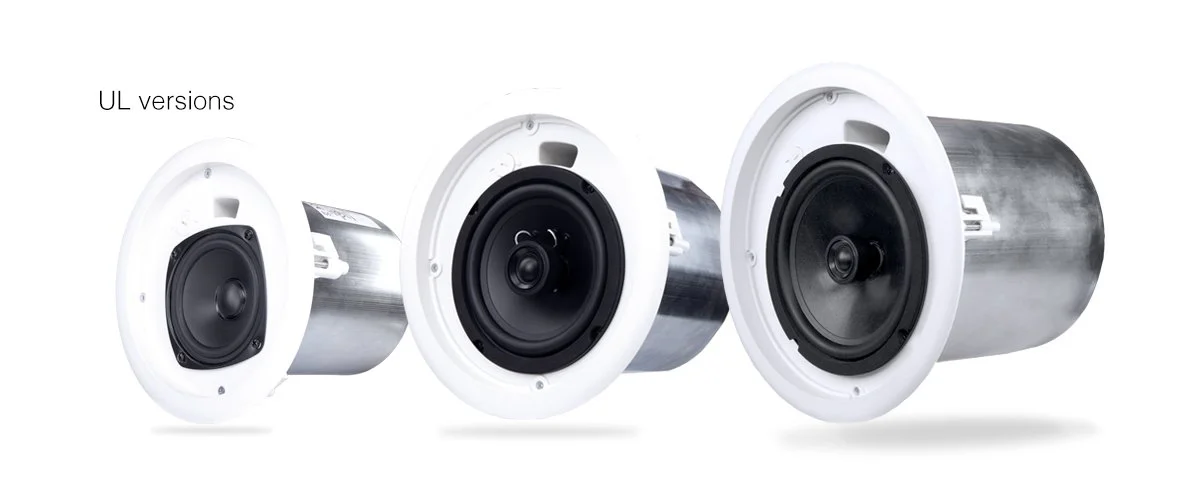

| UL Rated | Yes | Yes | Yes |
