QIO Series
Q-SYS Network Bluetooth® Audio Wall Plates
The Q-SYS QIO Series of network audio extenders enable interoperability with non-networked audio I/O to expand the power of Q-SYS across more devices. The QIO Series QIO-WP-BT network Bluetooth® audio wall plate brings wireless audio integration to Q-SYS, enabling reliable Bluetooth® media streaming, broadcast audio via Auracast™, and wireless call bridging within a native Q-SYS endpoint, making it ideal for hospitality, education, live entertainment spaces, as well as collaboration applications where simple user pairing, clean installation, and Q-SYS integration matter most.
Features & Benefits
Connect your Bluetooth® devices to Q-SYS for system-wide audio streaming
Support two-way calls for wireless audio bridging for UC applications
Supports Auracast™, a Bluetooth® technology that enables wireless assistive listening and broadcast audio use cases
Bluetooth® 5.4 module supports compatibility with the latest mobile devices and laptops
NFC tap-to-pair sensor for quick & easy Bluetooth pairing of supported devices

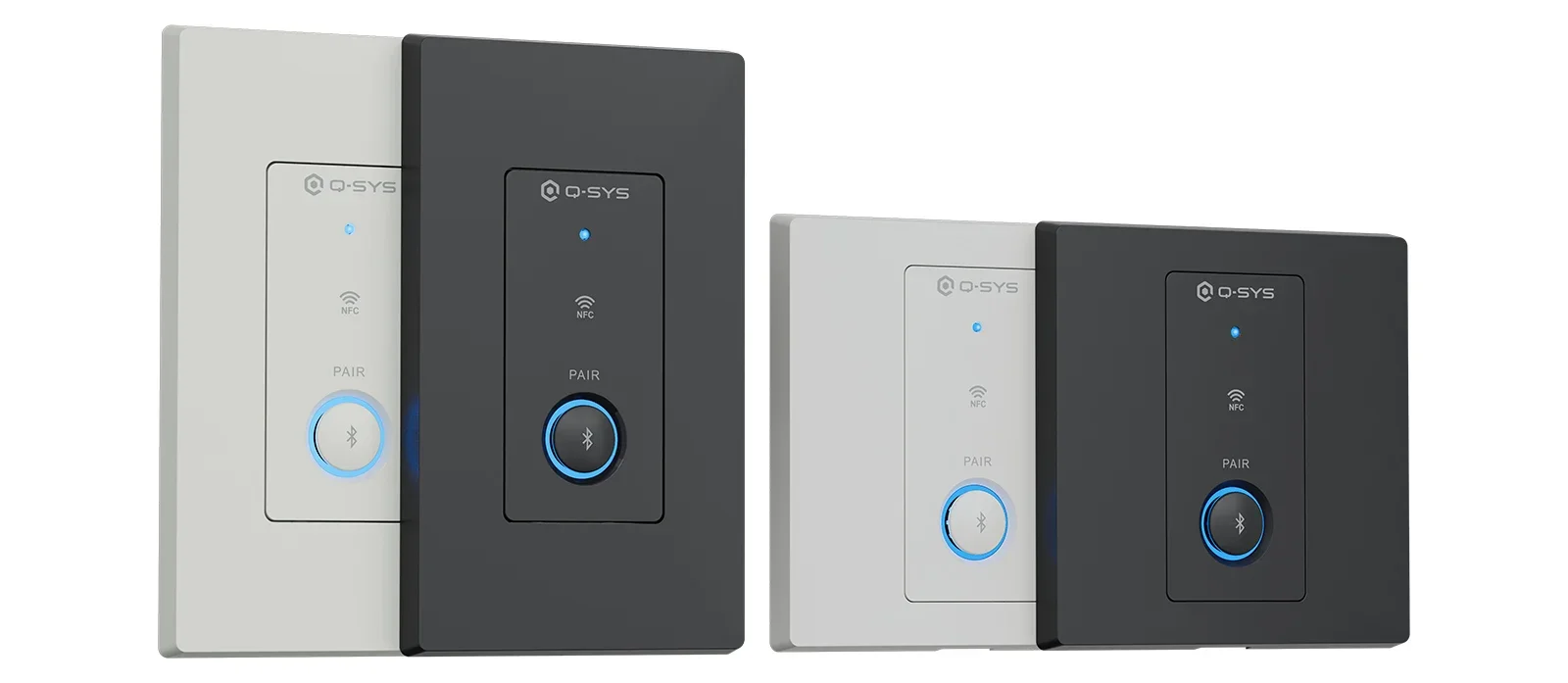

Available US (1-gang) or EU/UK (75mm square) versions fit into standard electrical backboxes with Decora style faceplates
White (RAL 9003) and black (RAL 9011) faceplates both included
Control pairing permissions, auto-connect settings, idle timeouts, and more
Can be monitored and managed by using Q-SYS Reflect, with one simple connection from your Q-SYS Core to the Q-SYS Reflect cloud
Add the right I/O where you need it: With QIO Series Bluetooth® audio wall plates, you can integrate today’s Bluetooth® enabled devices into Q-SYS for reliable media streaming, broadcast audio via Auracast™, and wireless call bridging.
Native Q-LAN Bluetooth audio connectivity: The network Bluetooth audio wall plate can receive two Q-LAN audio channels to stream stereo media from a mobile device into a networked audio system, and it can use the Bluetooth® hands-free profile to carry bi-directional audio to wirelessly bridge calls into a room’s networked audio system.
Customizable to your environment: The QIO Series features modular devices that can be combined to fit your unique I/O requirements for centralized, distributed and hybrid processing architectures. By separating I/O from processing hardware, the QIO Series enables you to interface with non-networked audio and control devices precisely where they’re needed.
Integrated audio, video and control: QIO Series network I/O expanders are driven by the Q-SYS Full Stack AV Platform, which unifies data, devices and a cloud-first open architecture to deliver a fully integrated audio, video and control solution that offers simpler integration and software-based scalability.

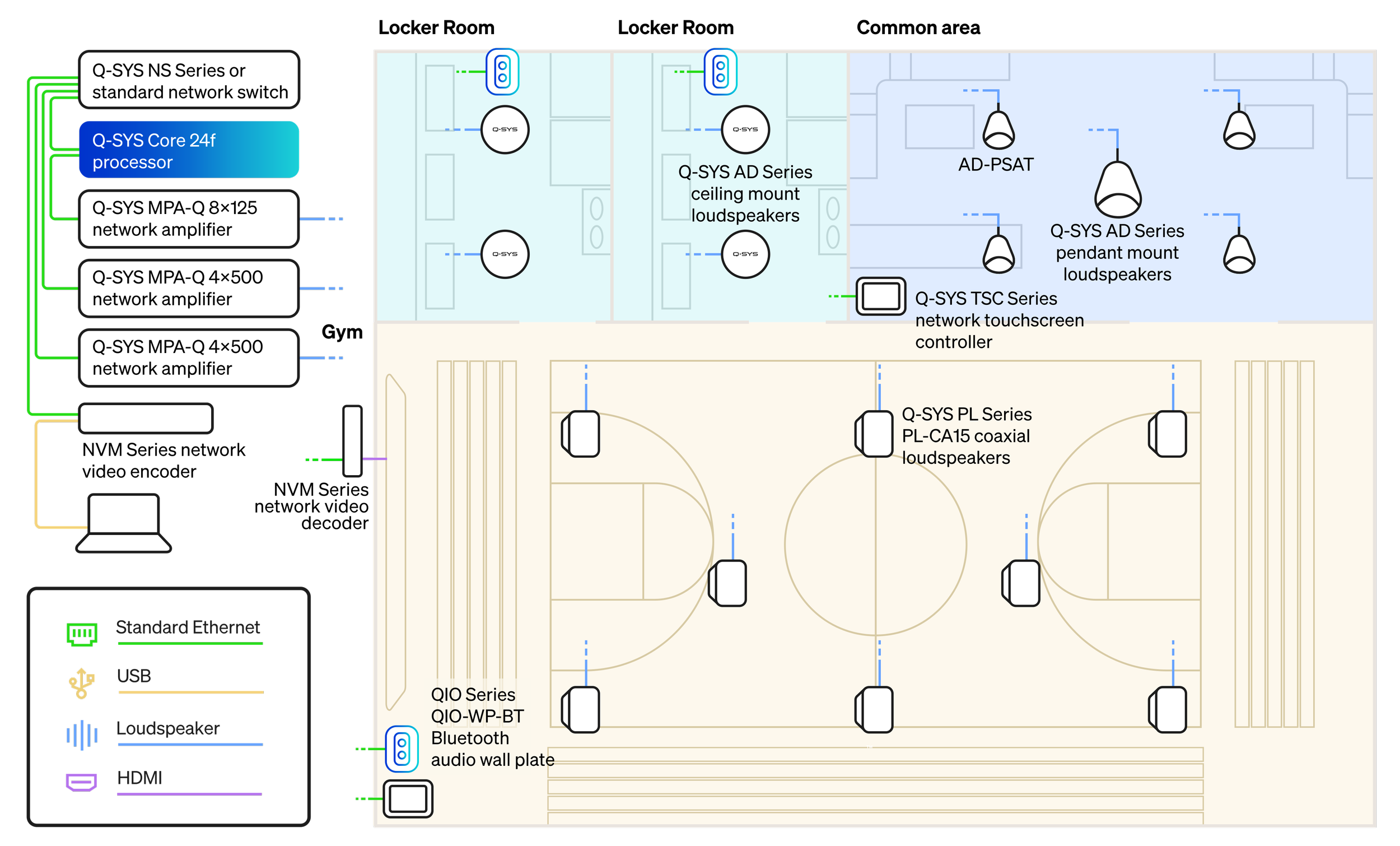

School athletic facility

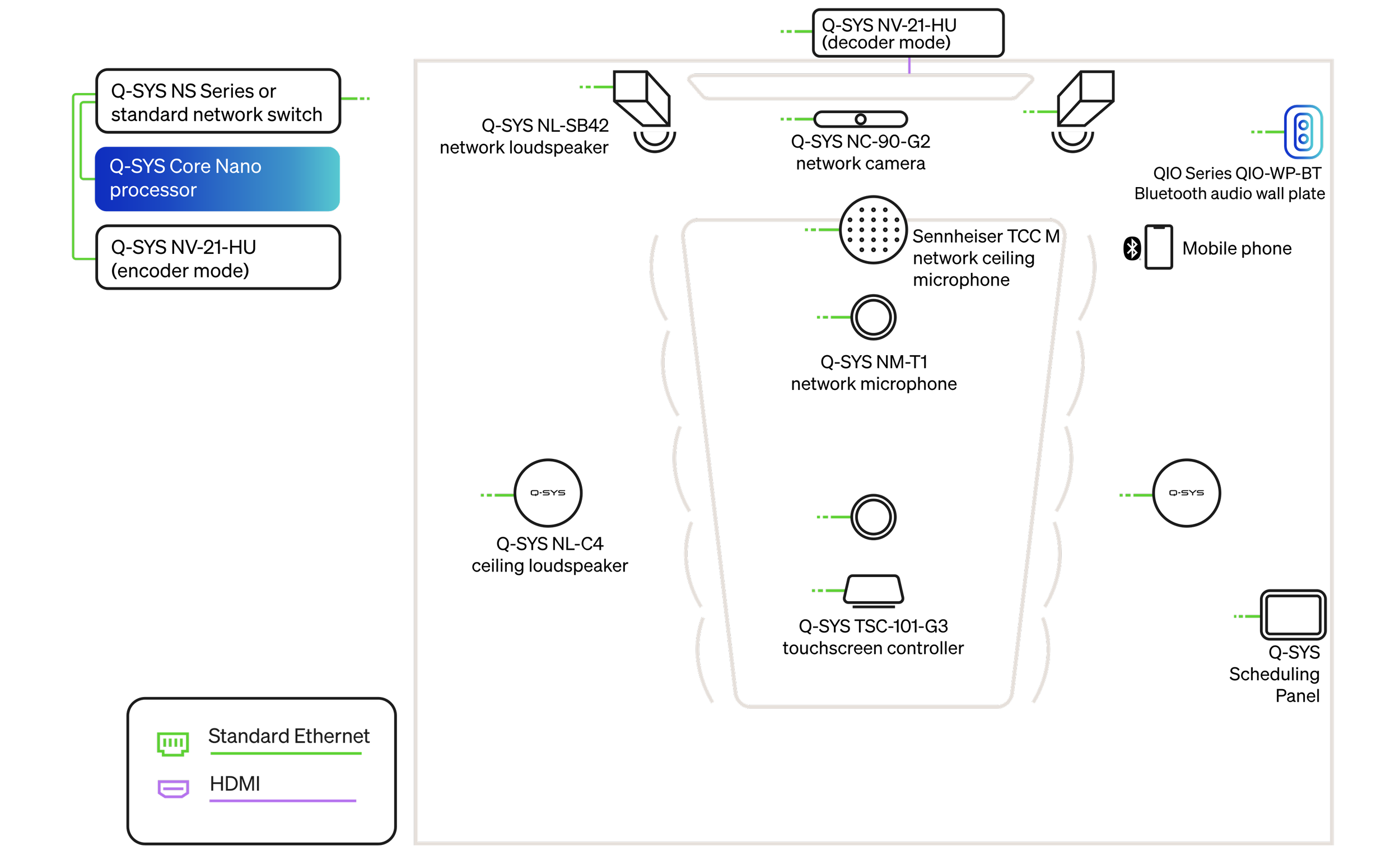

Conference room
Technical Specifications
| Specifications | QIO Series Network Bluetooth® Audio Wall Plate |
|---|---|
| Bluetooth® module version | 5.4 |
| Bluetooth® profiles supported |
Bluetooth® Classic (BR/EDR): • Rx only: A2DP (SRC/SNK), AVRCP • Tx and Rx: HFP • Up to 10 devices stored in device memory Bluetooth® Low Energy (LE): • Tx: PBP (Auracast™ mode) |
| Bluetooth® audio codecs supported | SBC, AAC, aptX & aptX HD, LC3 (Auracast™ mode only) |
| Bluetooth® range | >82 ft (>25 m) line-of-sight |
| Controls & indicators |

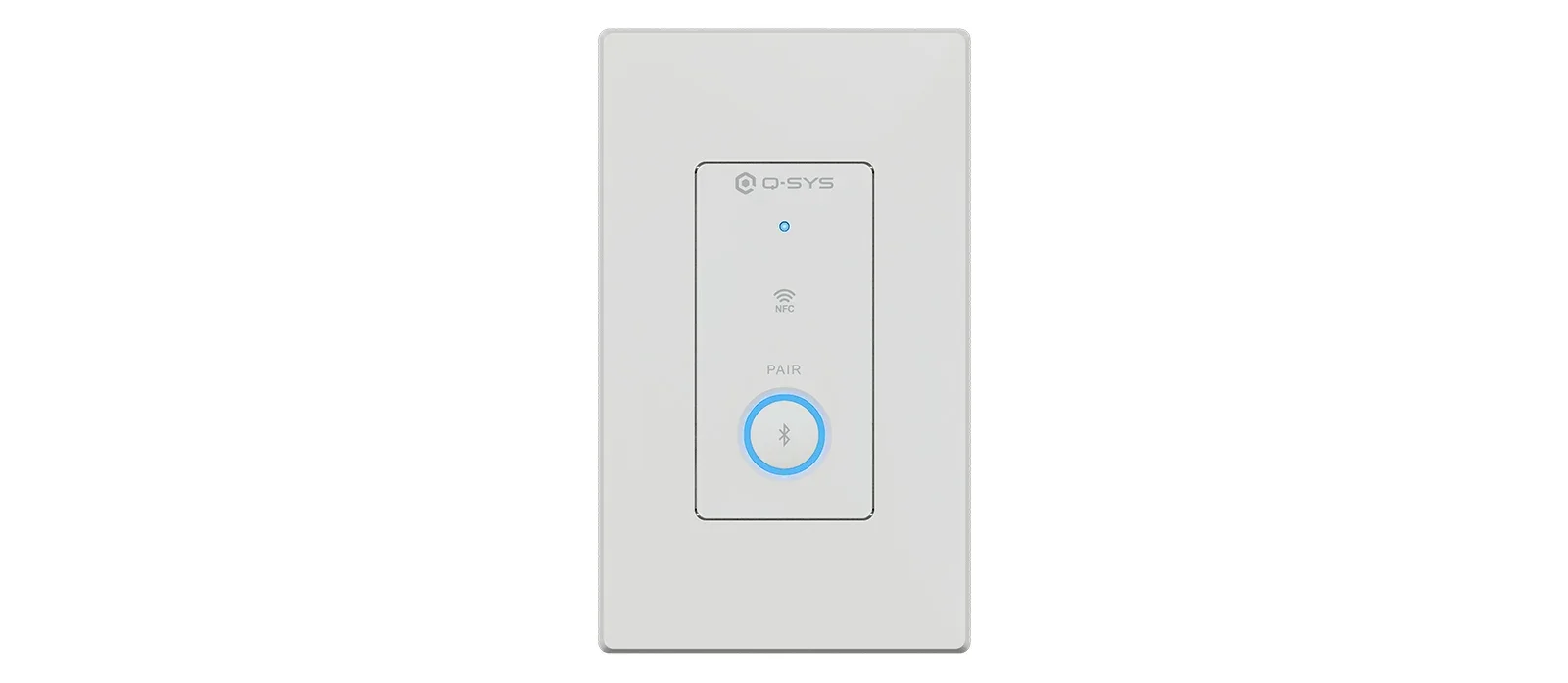

Front panel: • Power/Status - RGB LED (customizable in Q-SYS) • Bluetooth® - Blue LED (controllable in Q-SYS) • Bluetooth® pairing button • Near Field Communication (NFC) tap-to-pair sensor |
| Networking |
• 1x 1 Gbps LAN port • 1x RJ45 link port (supported in a future Q-SYS Designer Software release) |
| Product dimensions (L × W × H) |

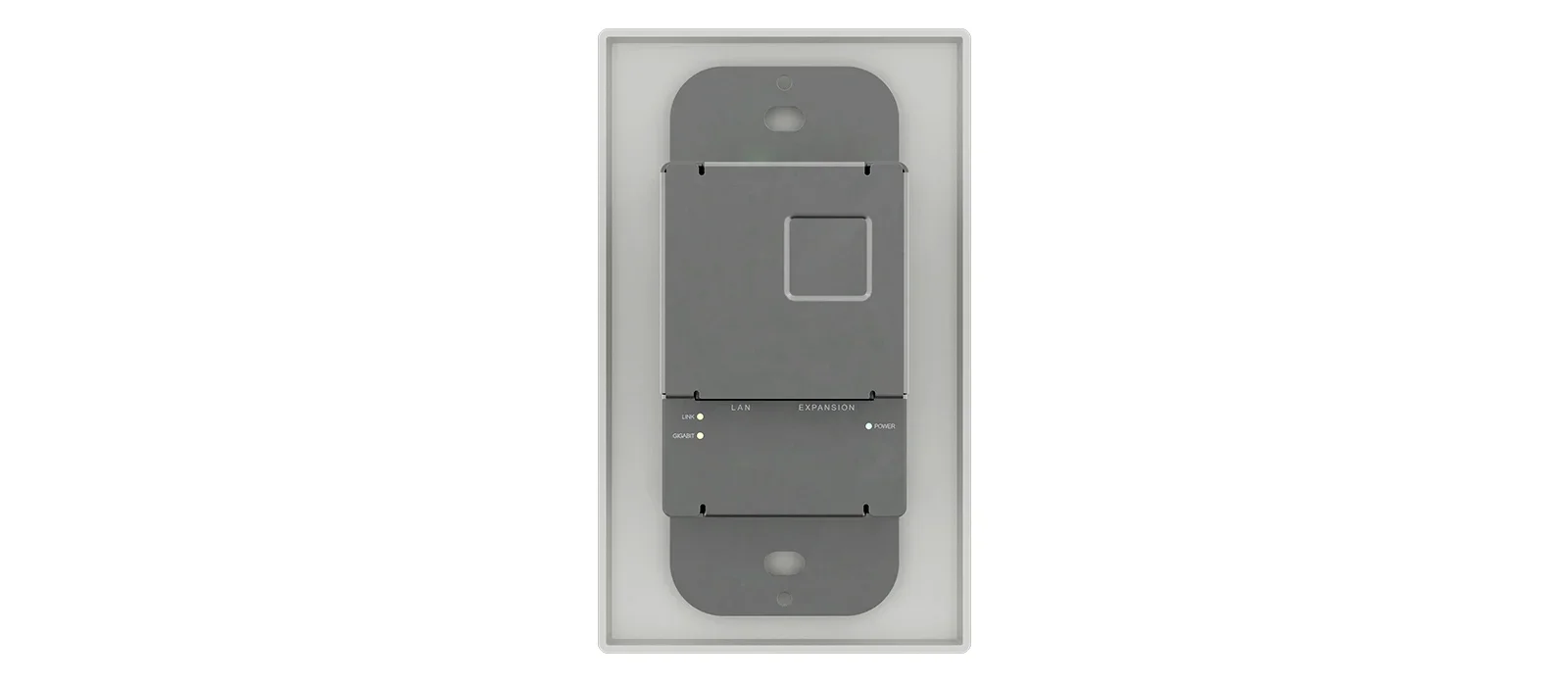

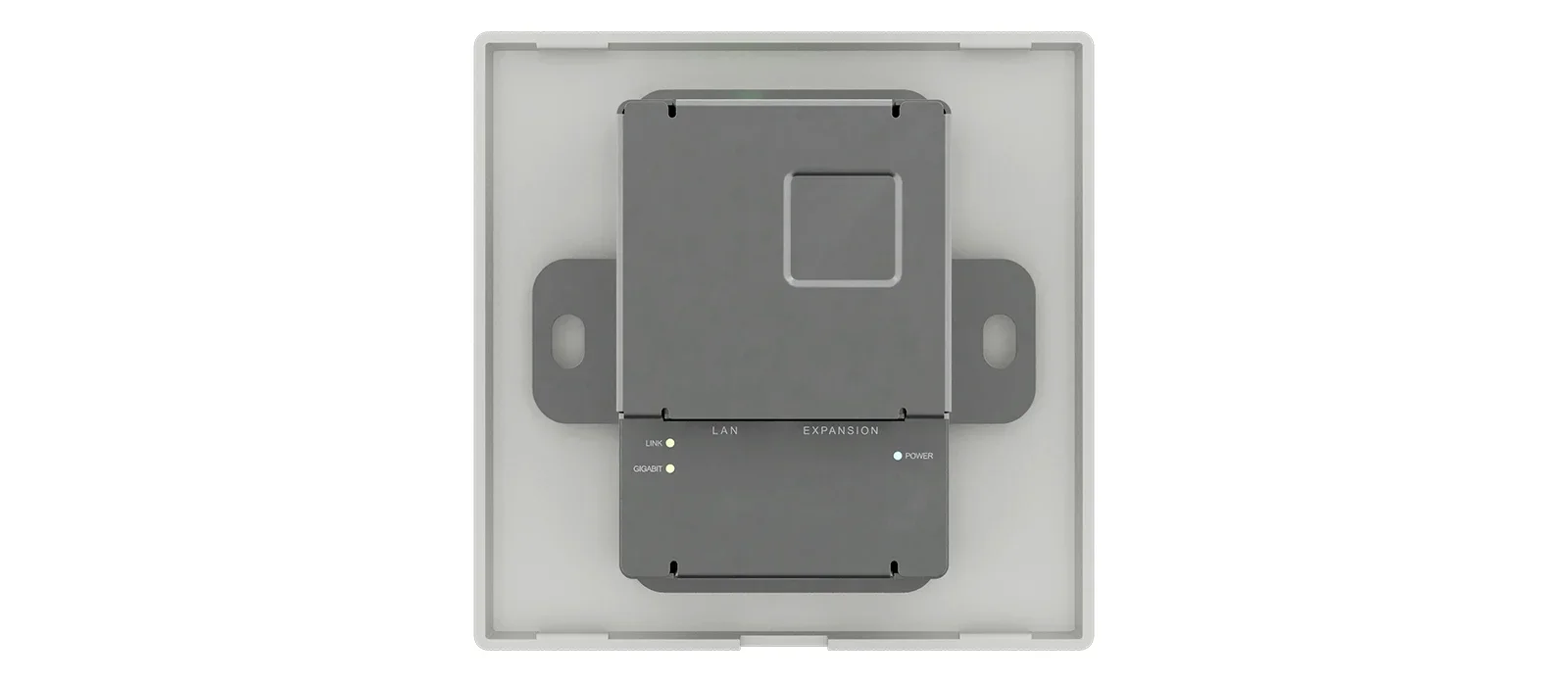

QIO-WP-BT-NA: 1.55 × 2.75 × 4.61 in (39.5 × 69.9 × 117.1 mm), including 1-gang cover plate • Fits standard North America backboxes (single- or dual-gang) ≥1.50 in depth QIO-WP-BT-EU: 1.55 × 3.39 × 3.39 in (39.5 × 86.0 × 86.0 mm), including cover plate • Fits BS4662-type backboxes ≥35.0 mm depth (Due to non-standardization of EU backbox interiors, fit should be verified prior to installation. See user manual for more information) |
| Colors |

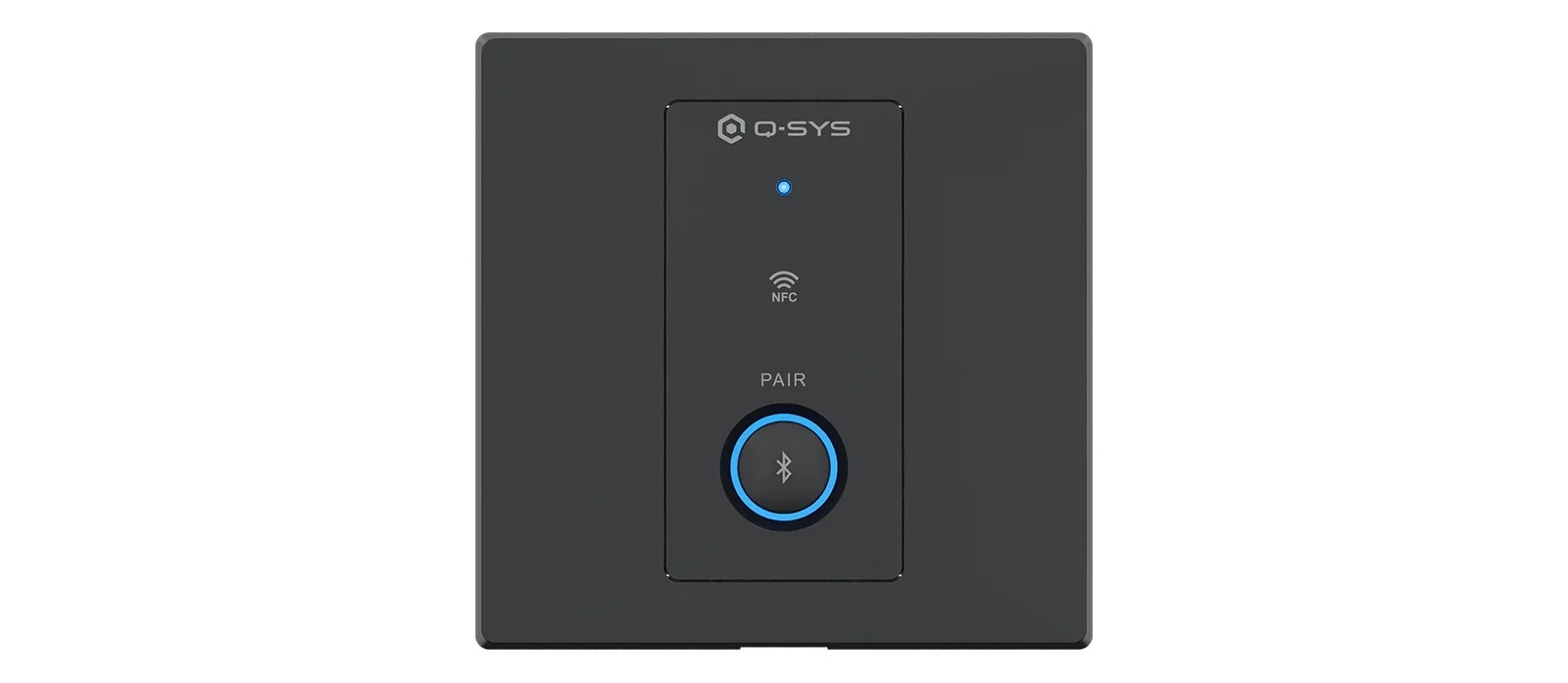

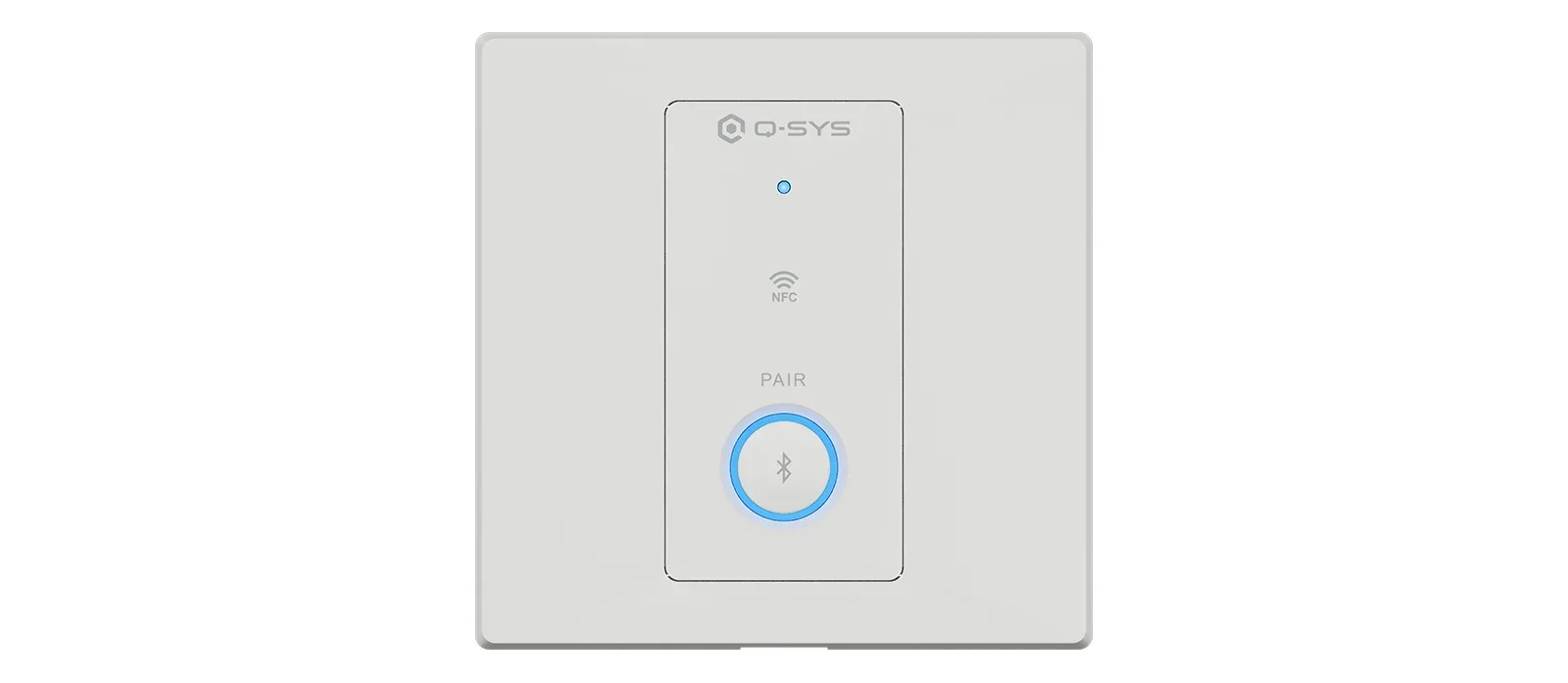

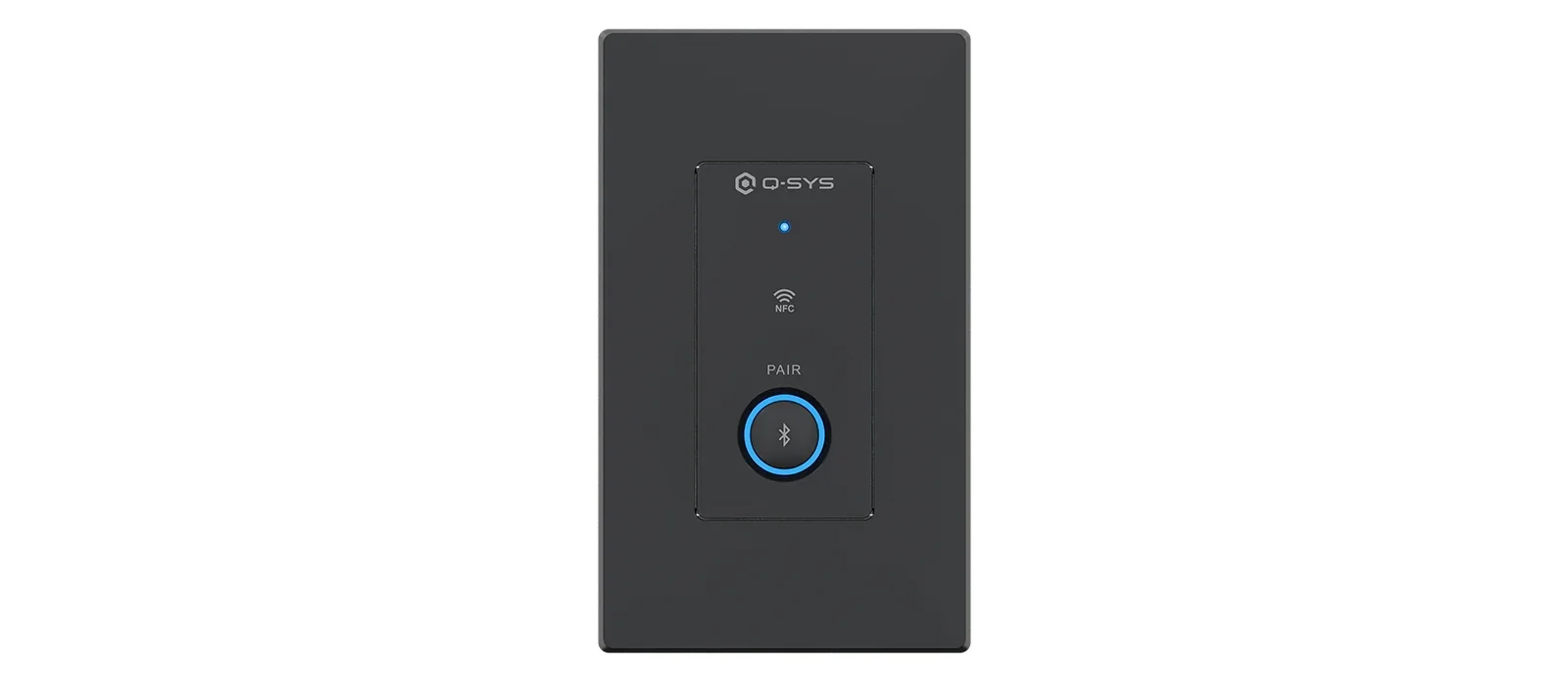

White - RAL 9003 (default configuration) Black - RAL 9011 (replaceable faceplate included) |
| Product weight | 0.375 lb (170.1 g) |
| Shipping dimensions | 6.25 × 4.00 × 3.50 in (158.75 × 101.60 × 88.90 mm) |
| Shipping weight | 0.75 lb (340.2 g) |
| Operating temperature | 32° F to 104° F (0° C to 40° C) |
| Power consumption | IEEE 802.3af PoE Class 0; 3 W max |
| BTU usage / heat generation | 10.24 BTU/h |
| Humidity range | 5%–85% RH, non-condensing |
| Environmental noise (dB) | N/A (no fan) |
