NM-T1 Tabletop Beamforming Microphone
Q-SYS network microphone

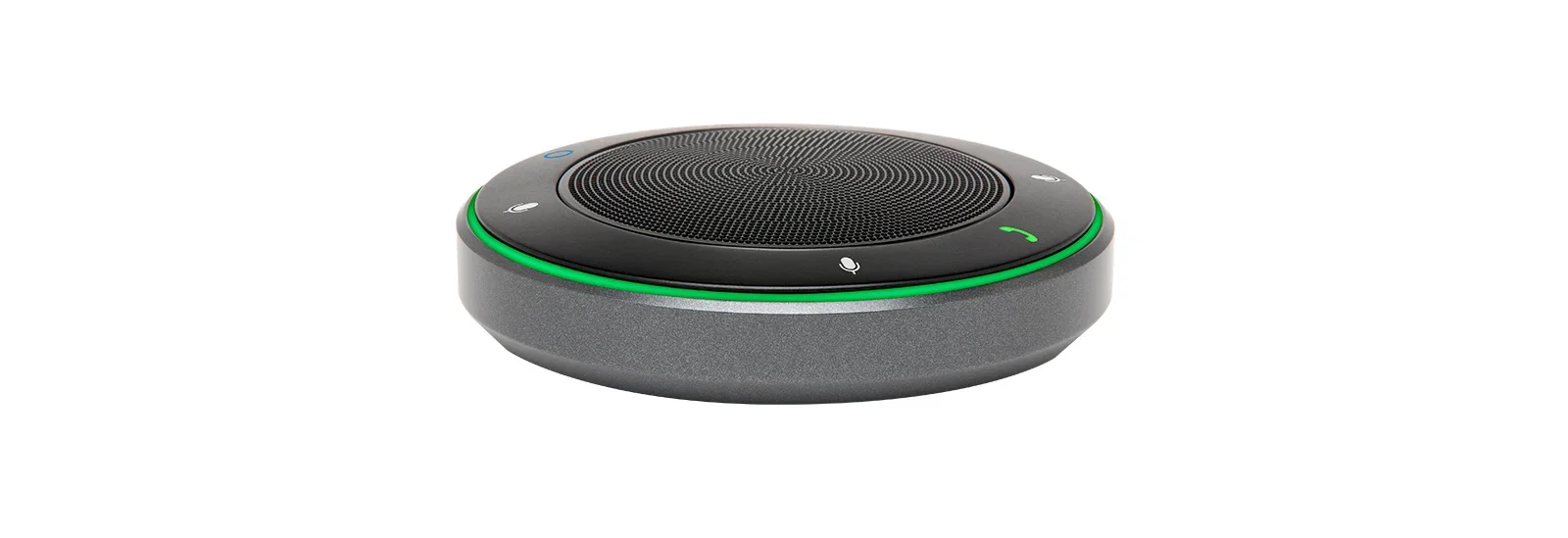

The Q-SYS NM Series NM-T1 is a tabletop network PoE microphone native to Q-SYS and ideal for the collaboration space. The microphone features advanced beamforming technology that ensures optimal clarity and separation for all surrounding talkers. It also offers onboard call controls, programmable user button and touchless muting capability, which lets users mute or unmute with the wave of a hand. As a native Q-SYS Product, the NM-T1 integrates seamlessly into your Q-SYS system without the need for complex programming.
Features & Benefits
Native Q-SYS beamforming tabletop microphone
Four software-configurable zones provide up to 360° coverage
Power over Ethernet (PoE)
Touchless mute via proximity motion sensor
Onboard call controls, including a programmable user button customizable in Q-SYS Designer Software
Programmable RGB light ring for fully customizable color, pattern, speed
Comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
Includes table-mounting accessories
Advanced Beamforming Technology: The Q-SYS NM-T1 features four software-configurable zones that can be activated based on where coverage is (or isn’t needed) to reduce echo and ensure clarity for far end callers. This also enables flexible seating arrangements and provides up to 360° coverage.
Intuitive UI with touchless muting: Easily manage your meetings with the Q-SYS NM-T1 onboard call controls, including a programmable user button and programmable RGB light ring status indicator, both of which are fully customizable within Q-SYS Designer Software. The microphone also features a built-in proximity motion sensor that allows for a simple hand wave to mute/unmute for users that are nearby.

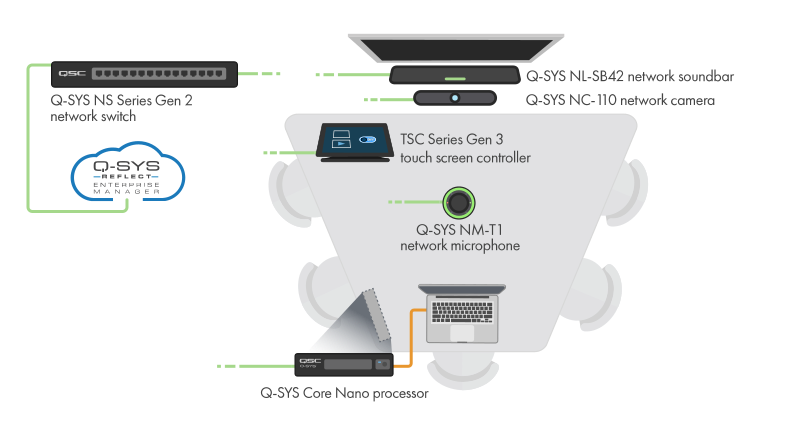

Meeting Room
Meeting Room with Centralized Processing
Technical Specifications
| Specifications | Q-SYS NM-T1 Tabletop Microphone |
|---|---|
| Audio | |
| Polar pattern | Superdirective |
| Pickup Range | 3-9 ft (1-3 m) |
| Microphone elements | 16x MEMS microphone elements |
| Network input channels required (per NM-T1) | 1x network audio stream and 16x network audio channels |
| Frequency response | 100 Hz - 16 kHz, +/-3 dB |
| Sampling rate | 16 kHz wideband / 48 kHz fullband |
| Bit depth | 24 bit |
| Sensitivity | -36 dBFS (94 dB SPL) |
| Maximum SPL (1 kHz @ 1% THD) | 118 dB SPL |
| Dynamic range | 95 dB |
| Signal-to-Noise ratio | 65 dB (48 kHz) 66 dB (16 kHz) |
| Self noise | 28 dB SPL (48 kHz) 28 dB SPL (16 kHz) |
| Latency | 4 ms |
| Power | |
| Power requirements | Power over Ethernet (PoE), Type 1 Class 2 |
| Power consumption | <6.5 W |
| Connector type | RJ45 |
| General Specifications | |
| Dimensions | 4.21 × 1.1 in (107 × 28 mm) |
| Weight | 1.5 lbs (0.68 kg) |
| Included accessories | Mounting stem, Strain relief cap, CAT6 cable (10 ft / 3 m) |
