AcousticDesign Series – SUB/SAT

Small-Format Loudspeakers

Features & Benefits

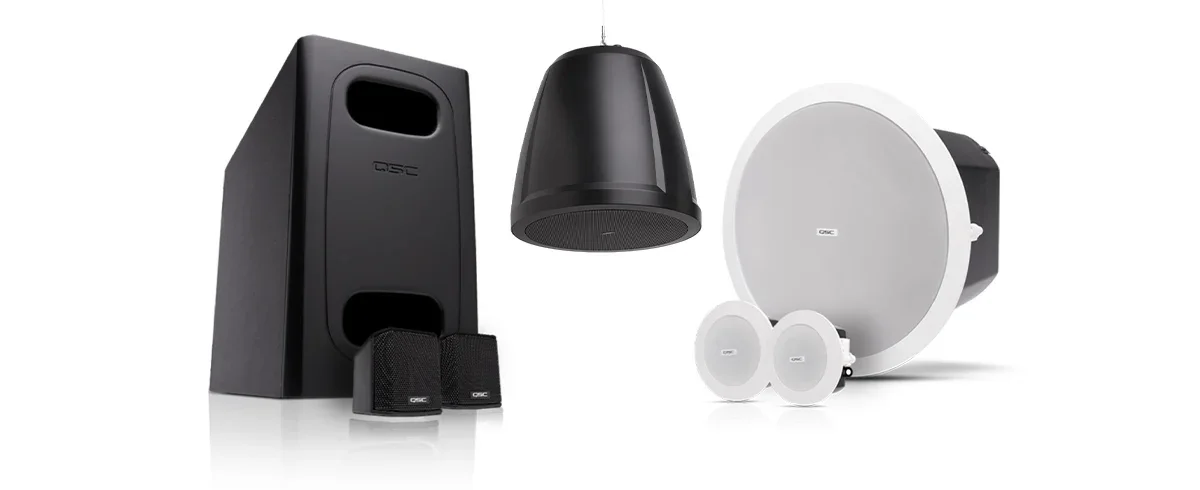

The AcousticDesign™ Series SUB/SAT Loudspeakers offer unprecedented acoustic performance from a small form factor to enhance the look of any installation. Backed by a legacy of quality and support, this family of loudspeakers supports retail, restaurant, hospitality and other commercial spaces. Even at low volume levels, the AcousticDesign Series SUB/SAT loudspeakers provide exceptional warmth and crystal-clear highs for remarkable acoustic ambiance.

Supports the aesthetics of demanding spaces with a small form factor. Available in black or white with paintable grills and enclosures.
One comprehensive catalog simplifies quoting and design process.
Minimize installation and commission labor costs with built-in high pass satellite outputs, screw-down Euro block connectors, snap-fit magnetic grills (for ceiling-mount and pendant-mount loudspeakers), and X-Mount wall-mounting system (for surface-mount models).

Subwoofers and satellite loudspeakers have the same balanced sonic characteristics that allow for interchangeability between enclosure types.
Sealed input panel covers, UV inhibitors, powder-coated aluminum grilles, rugged ABS enclosures (for AD surface-mount loudspeakers).

SELECT A MODEL


          AD-S.SUB
          AD-S.SAT

          Systems Type
          Subwoofer
          Satellite loudspeaker

          Frequency Range,
-10dB(Hz)
          45 Hz - 150 Hz
          150 Hz - 20 kHz

          Nominal Coverage
          N/A
          170° Conical

          Output (Peak SPL @ 1M)
          106 dB
          96 dB

          Rated noise power
          100 W
          25 W

          Sensitivity
          86 dB
          82 dB

          LF Driver
          6.5 in (165 mm)
dual voice-coil
          N/A

          HF Driver
          N/A
          2.75 in (70 mm)

          Transformer Taps

            70 V : 100, 50, 25, 12.5 W and bypass

            100 V : 100, 50, 25 W and bypass

            Bypass: 4 Ω mono or 8 Ω + 8 Ω stereo

          16 Ω

          Connectors

            Hi-Pass Mono Input: 4-pole Euroblock with thru output

            Low-Z Input: 4-pole Euroblock, Left (mono) and Right

            Hi-Pass Mono Output: x2 4-Pole Euroblock for x4 satellites

          2-pole Euroblock

          Dimensions
(H x W x D) inches
          13.8 × 8.2 × 17

            3.6 × 3.5 × 5.4

            Including wall bracket

          Dimensions
(H x W x D) mm
          350 × 209 × 432

            92.5 × 89 × 136

            Including wall bracket

          Net Weight
          23.6 lb (10.7 kg)
          .95 lb (0.43 kg)
