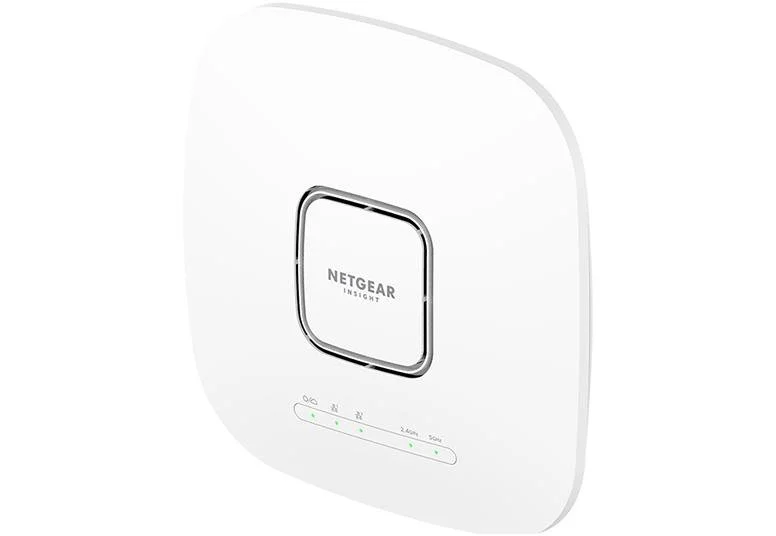

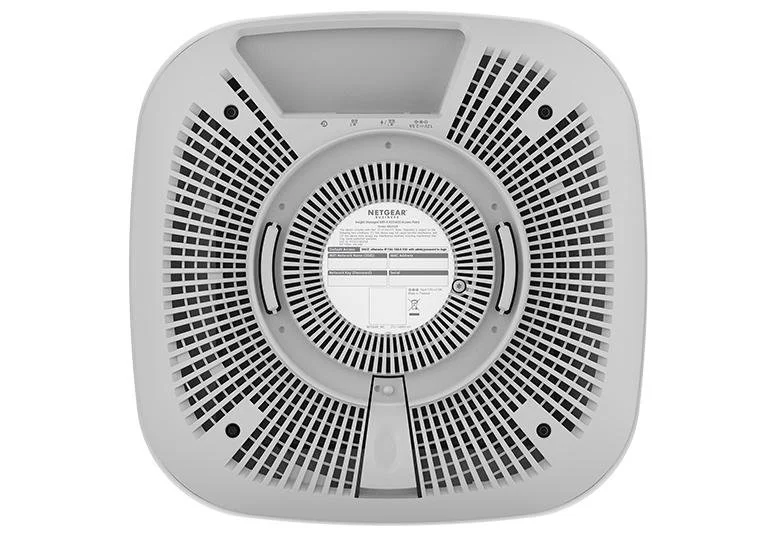

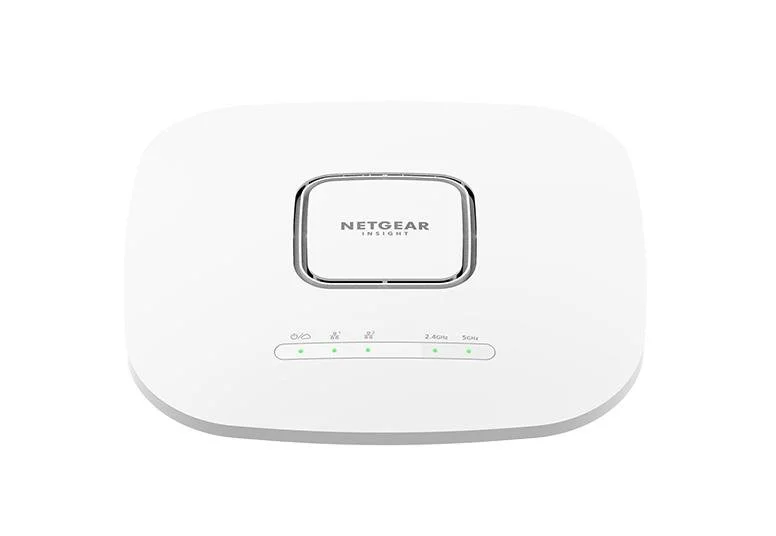

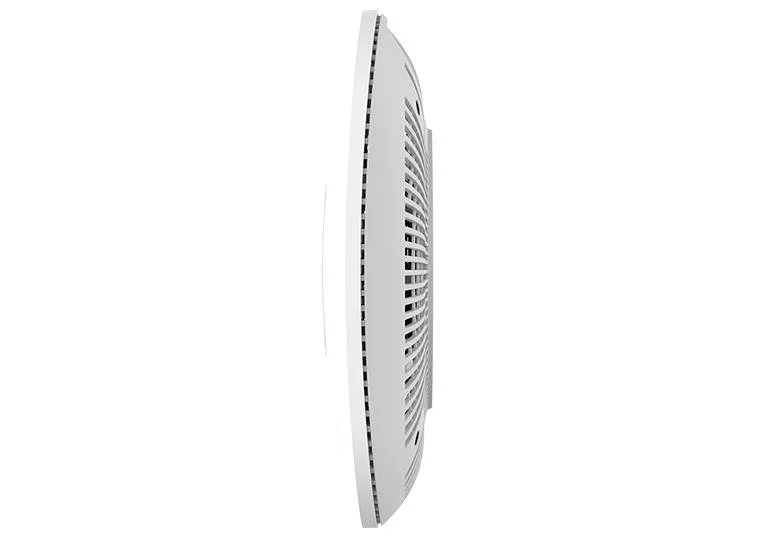

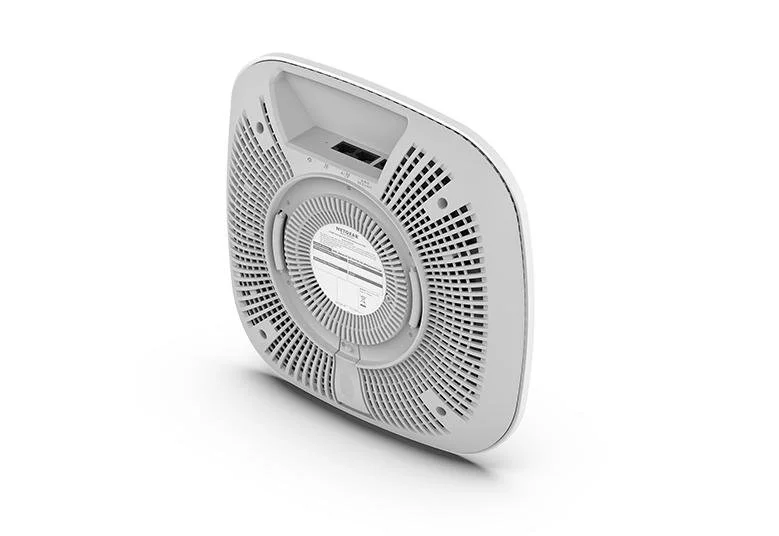

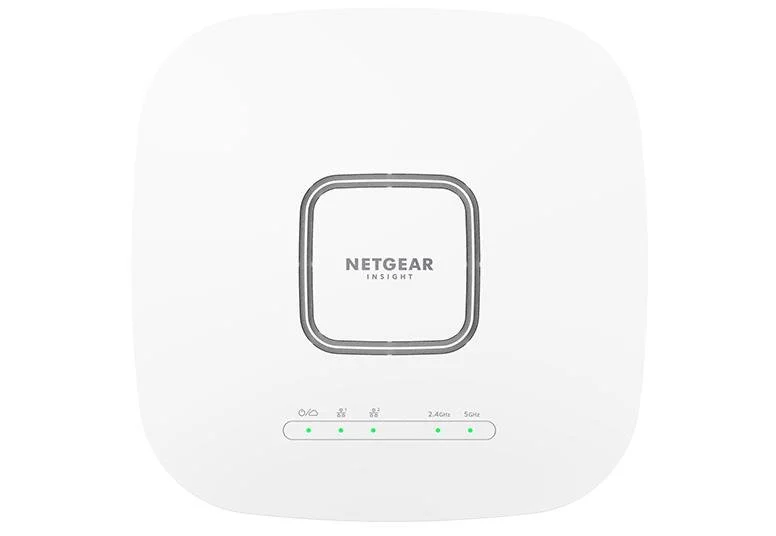

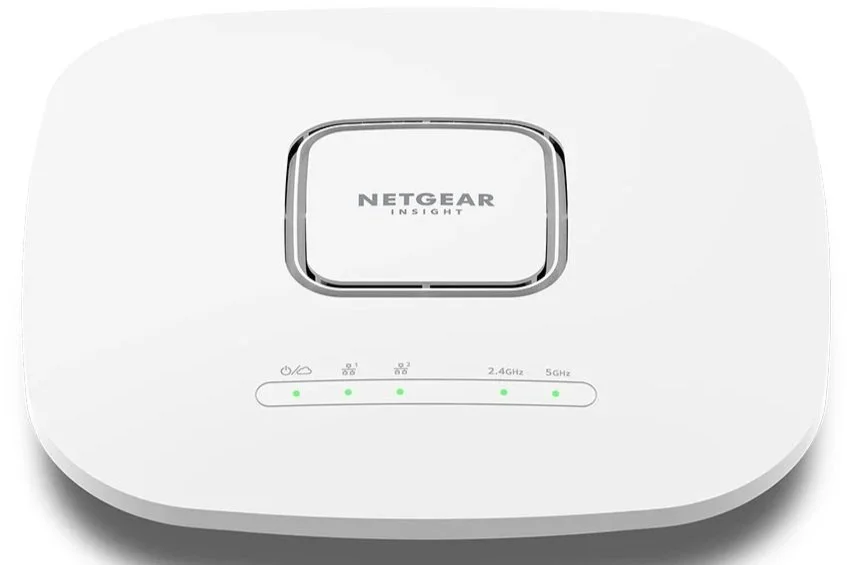

NETGEAR® Insight Managed WiFi 6 AX5400 Dual-band Access Point with Multi-Gig PoE

Cloud Managed WiFi 6 (WAX628)

Download Spec Sheet

Exclusively for both residential and commercial custom network installations. Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the homes and businesses. Including 4-years of both NETGEAR Insight Subscription and NETGEAR ProSupport OnCall 24x7 Service Pack

A Powerful WiFi Solution

  • Ultimate speed and capacity with WiFi 6

  • Enterprise level security with WPA3 and 8 separate wireless networks (SSIDs)

  • High speed and easy wiring with a 2.5GbE port with PoE

  • Mesh capabilities for seamless roaming and highly scalable coverage areas

  • Monitor and manage your network from anywhere with NETGEAR Insight, a user-friendly cloud monitoring and management cloud portal and app

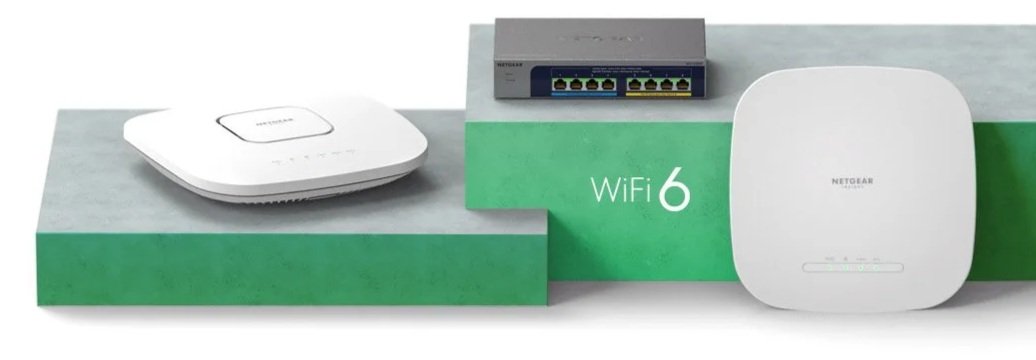

Simply Better Together

Combine your WiFi Access Points with a Multi-Gig Switch to optimize your network for power and speed.

Behind every smart home is a network genius

Discover new ways to bring professional-grade technology to your residential installations

Technical Specifications

    • Dimensions : 241.15 x 239.6 x 51.38 mm (9.49 x 9.43 x 2.02 in)

    • Weight : 819 g (1.80 lb)

    • Speed : AX5400

    • Radio : 5GHz: 4x4 20/40/80/160MHz

    • 2.4GHz: 2x2 20/40MHz

    • Theoretical Throughput : 5GHz: 4.8Gbps

    • 2.4GHz: 0.6Gbps

    • Antenna Gain : 5GHz: 2.9dBi

    • 2.4GHz: 2.4dBi

    • # of Max Users : 275

    • # of Concurrent Users : 75

    • Ideal Use : Residential and Commercial Integrator

    • Ethernet port : 1 x 2.5G port and 1 x 1G port

    • PoE : Yes

    • PoE Power Consumption : 21.2W

    • Remote management : Insight or Standalone

    • Third party support : Domotz

    • ProSUPPORT OnCall 24x7 Service Packs 4-years of ProSUPPORT and Insight contracts included, available to both Insight Premium and Insight Pro account holders. The NETGEAR OnCall 24x7 contract provides unlimited phone, chat and email technical support for your networking product.

    • Hardware Limited Warranty 5 years

    • Next-Business-Day (NBD) Replacement 5 years

    • WAX628 Support

    • WAX628 Insight Managed Wireless Access Point

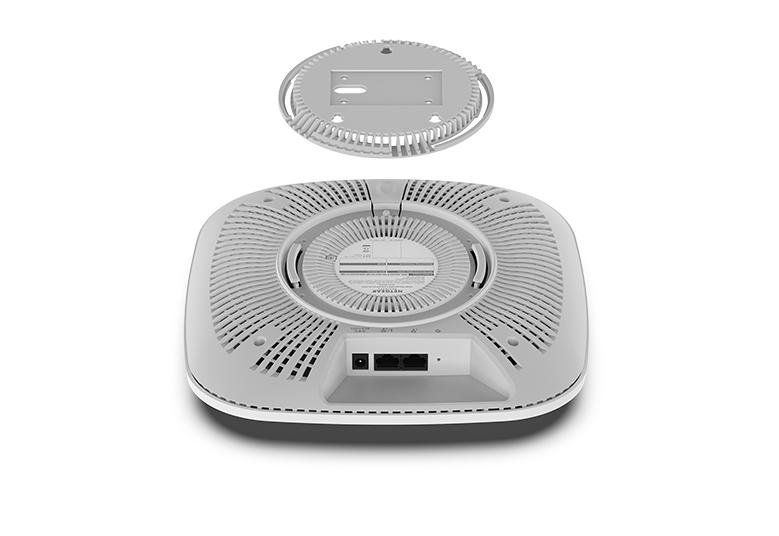

    • Wall/ceiling mount kit

    • Installation guide
