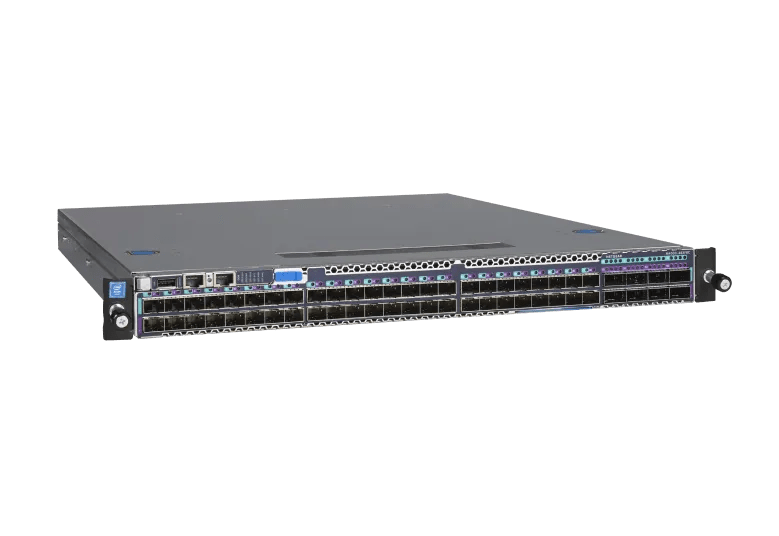

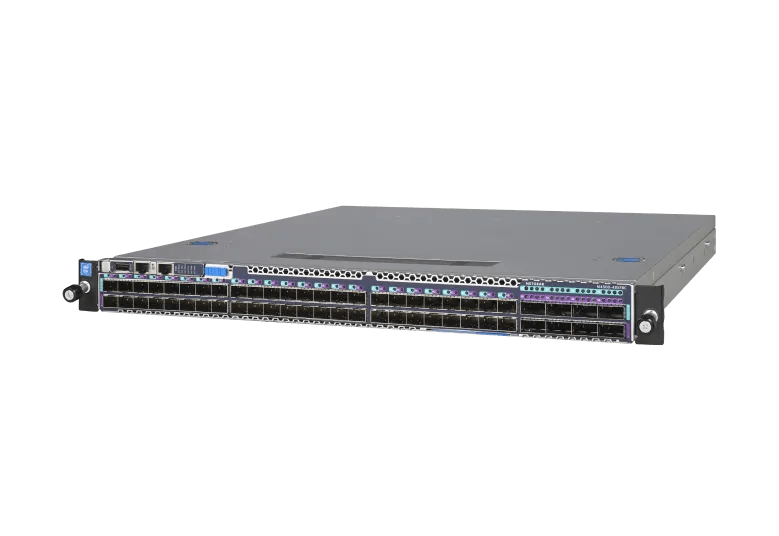

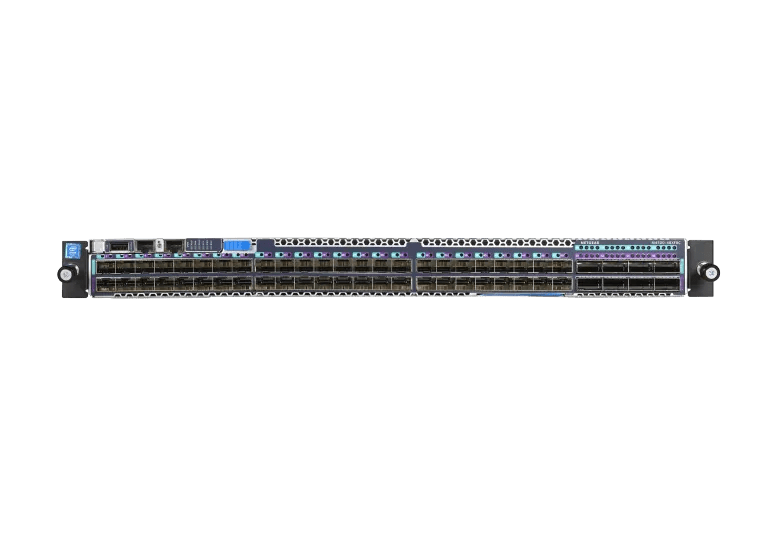

XSM4556
Fully Managed M4500
These switches combine the configurability of a matrix switcher with the power and scalability of Ethernet to support hundreds of AV over IP endpoints. M4300 and M4500 switches offer IGMP Plus and greatly simplify system architectures at a dramatically lower price point
Technical Specifications
-
Dimensions: (WxDxH) :
440 x 508 x 43.2 mm
Weight :
9.78 Kg (21.54lb
-
Model Description :
M4500 Managed Switch with 48x10G/25G SFP28 and 8x100G QSFP28 ports
Ordering Number :
XSM4556
Acoustics :
68.0dB @ 25°C (77°F) - the noise is reduced when the two PSUs connect to a power source
Power Consumption (Max) :
394 Watts
25G SFP28 Ports :
48 SFP28 ports (1x10G default mode, other modes can be 1x25G and 1x10G)
100G QSFP28 Ports :
8 QSFP28 ports (1x100G default mode, other modes can be 1x50G, 1x40G)
PSU and Fans :

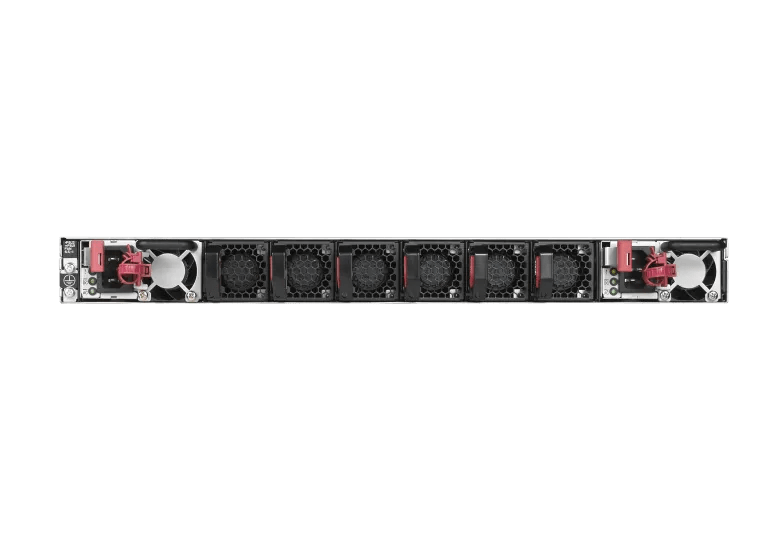

2 modular Power Supply Units and 6 modular Fan Trays come pre-installed
Management :
CLI only (local console, telnet port 1223 and SSH port 1234)
Management Ports :
1G Ethernet service port for out-of-band management (OOB, RJ45)RS232 straight-through serial RJ45 for local management console
Form Factor :
Full width 1U (508mm depth) with two mounting ears (front) and rail kits (back)
-
Warranty :
This product is backed by a NETGEAR ProSAFE®Limited Lifetime HardwareWarranty.Lifetime Next Business Day Hardware Replacement. Clickherefor coverage, availability and terms and conditions.
Support :
ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.Support
-
Switch with two power supplies APS750W and six fan trays AFT402 already installedConsole cable with one DB9 female connector and one RJ-45 serial connectorPower cord(s)Two mounting ears and screws for rack mounting (front)One set of rail kits for rack mounting (back)Installation guide
-
-
