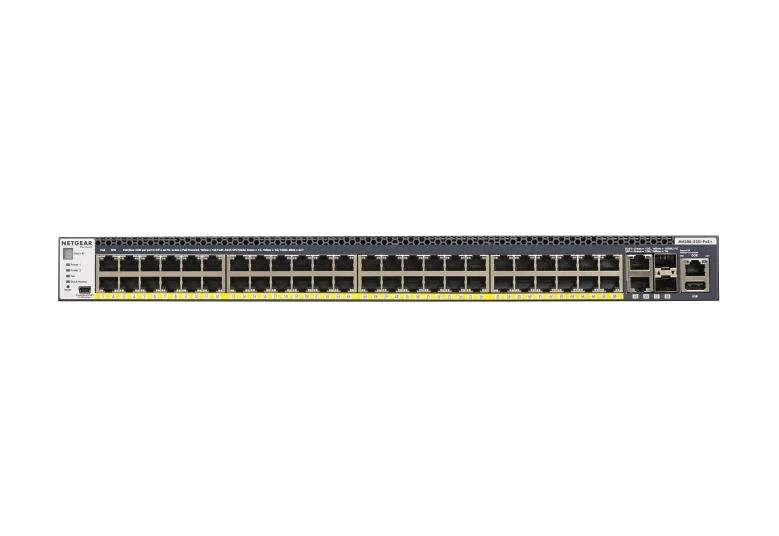

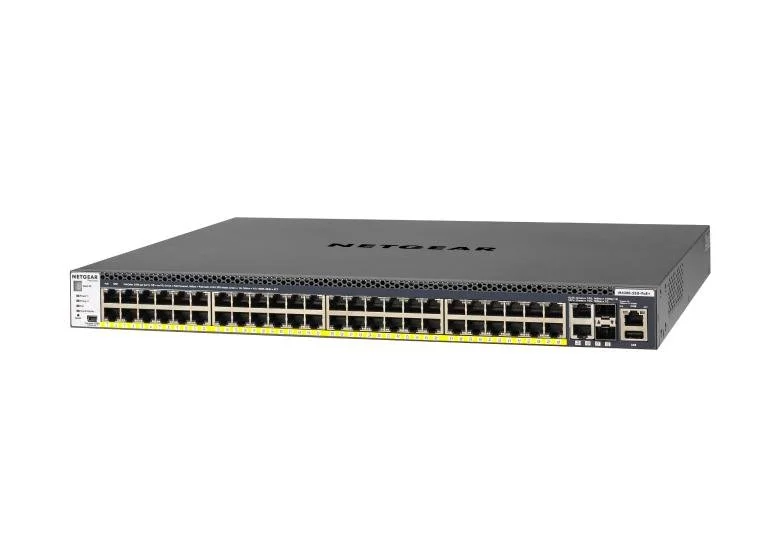

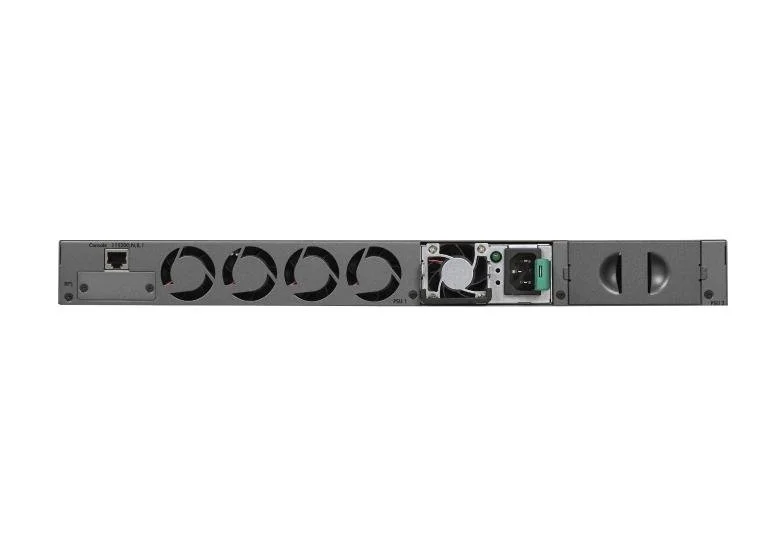

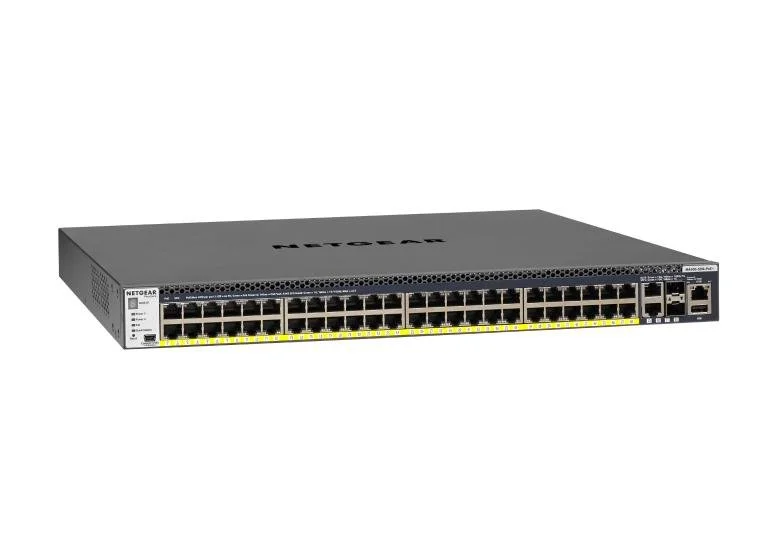

48x1G PoE+ 480W, 2x10G, 2xSFP+ Managed Switch

M4300-52G-PoE+ (GSM4352PA)

Download Spec Sheet

Full-Width 48x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU) (GSM4352PA)

Technical Specifications Hardware

    • Hardware Specifications : 48x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU)

    • Ordering Number : GSM4352PA

    • Acoustics : 39.8dB @ 25°C (77°F)

    • Power Consumption (Max) : 865 Watts

    • 1G RJ45 Ports : 48 x 10/100/1000

    • 10G RJ45 Ports : 2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)

    • 10G Fiber SFP+ Ports : 2 x SFP+ (1G and 10G speeds)

    • Power over Ethernet : 48 x PoE+ 30W

    • PoE Budget (Watts) : 480W PoE Budget with 1 PSU @ 110V / 220V AC input

    • 480W PoE Budget with 2 PSUs in redundant RPS mode @ 110V / 220V AC input

    • 720W PoE Budget with 2 PSUs in shared EPS mode @ 110V / 220V AC input

    • External RPS4000v2 for power redundancy (RPS) when 2 internal PSUs are used in EPS mode

    • Feature Set : Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)

    • Management Ports : 1G Ethernet service port for out-of-band management (OOB, RJ45)

    • RS232 straight-through serial RJ45 for local management console

    • Mini-USB port for local management console

    • USB port for local storage, logs, configuration or image files

    • Form Factor : Full width with dual, redundant modular PSUs for business continuity

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .

    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

    • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.

    • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.

Technical Specifications Software

    • Table Sizes : 128K MAC 8k ARP / NDP

    • Up to 960 Gbps

    • Throughput up to 714 Mpps

    • Application Static Routing- 64v4 / 64v6 RIP: 512 OSPF: 512

    • Latency : 0.9µs 10g

    • 1.25µs 10g

    • IP Multicast : ,024 IPv4 / 512 IPv6

    • Multicast IGMP Membership : 2k IPv4 / IPv6

    • M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM

    • VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools

    • Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models

    • Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)

    • PoE+ Options (30W per port) with hot swap & redundant PSUs options

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .

    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

    • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.

    • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
