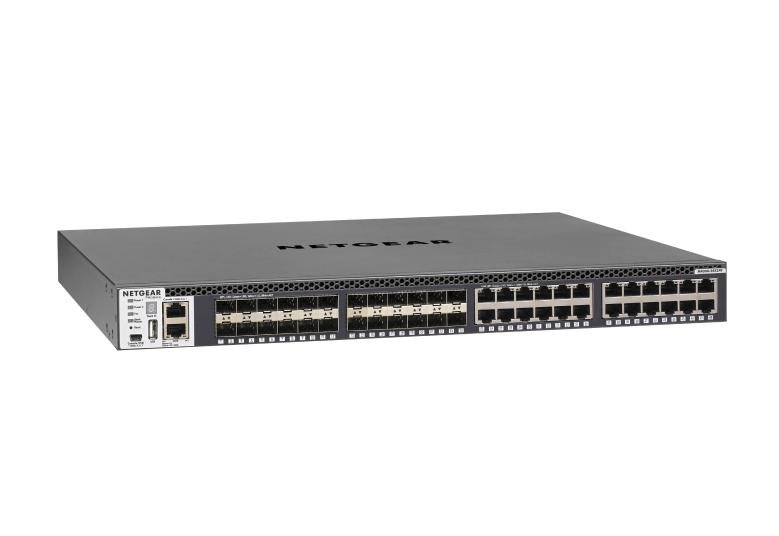

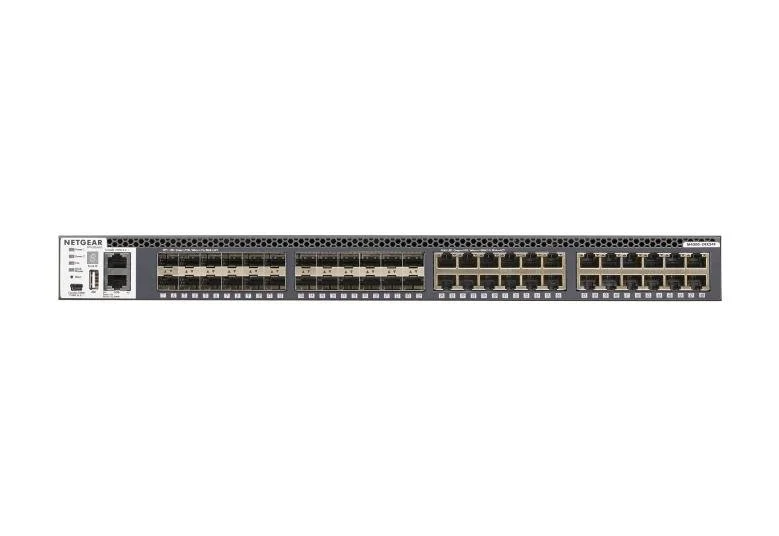

24x10G and 24xSFP+ Managed Switch

M4300-24X24F (XSM4348S)

Download Spec Sheet

Stackable Managed Switch with 24 Ports SFP+ and 24 Ports 10GbE Copper - IT Core & AV-over-IP

Technical Specifications Hardware

    • Hardware Specifications : Model Number: XSM4348S

    • 24 Ports Copper 100M / 1G / 10G

    • 24 Ports SFP+ 1G / 10G

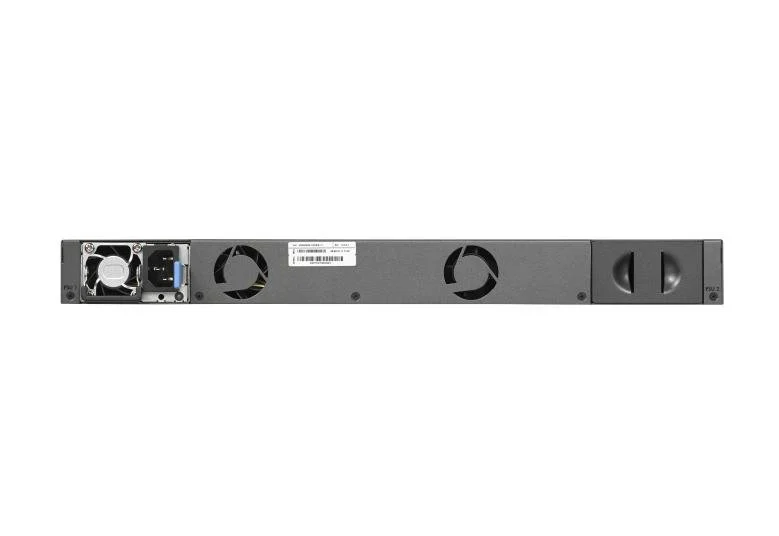

    • 1 Modular Bay with One (1) 250W Modular PSU included APS250W

    • 960 Gps Switching Fabric

    • Fixed Fan Front-to-Back 35.8dB

    • Management Options : Ethernet: Out-of-band 1G port (Front)

    • Console: RJ45 RS232 (Front)

    • Console: Mini-USB (Front)

    • Storage: USB (Front)

    • Single-pane-of-glass NMS300 management platform with mass-configuration support

    • Dual firmware image and configuration file for updates with minimum service interruption

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .

    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

    • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.

    • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.

Technical Specifications Software

    • Table Sizes : 128K MAC 8k ARP / NDP

    • Up to 960 Gbps

    • Throughput up to 714 Mpps

    • Application Static Routing- 64v4 / 64v6 RIP: 512 OSPF: 512

    • Latency : <0.9µs 10G SFP+

    • <1.25µs 10G RJ45

    • IP Multicast : 1,024 IPv4 / 512 IPv6

    • Multicast IGMP Membership : 2k IPv4 / IPv6

    • M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM

    • VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools

    • Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models

    • Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)

    • Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty .

    • Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions.

    • Support : ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts.

    • ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat.
