8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch
AV Line M4250-9G1F-PoE+ (GSM4210PD)
Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!
POWERFUL AV SWITCHES
MADE SIMPLE
Pre-configured to get you up and running faster
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
FAST, EASY
CONFIGURATION
FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Technical Specifications
-
Dimensions (WxDxH) : 210x 140 x 40 mm
Weight : 965g (2.13lb)
-
Primary Port Speed : 1 Gigabit
Number of Ports : 10 (8x 1G PoE+, 1x 1G, 1x SFP)
PoE Ports / Budget : 8 PoE+ (30W/port), 110W Budget
IGMP Support : Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support : Yes, up to 12kb
AVB Support : Yes. Electronic license required, activation key sent via email (AVB4210PD-10000S)
Acoustics : Fanless
Power Consumption : With PoE: 132.25W/451.5Btu/hr
Without PoE: 9.88W/33.73Btu/hr
Standby without any port connection: 6.4W/22.02Btu/hr
Third party support : Domotz
-

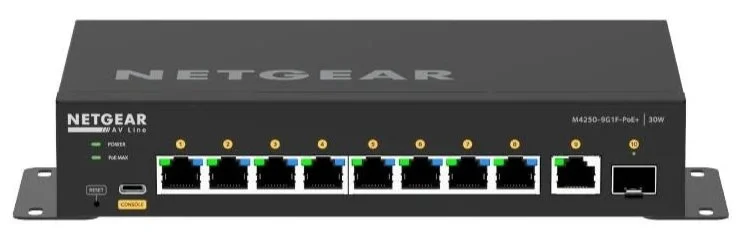

M4250-9G1F-PoE+ (GSM4210PD)
Power Adapter
Power cord(s)
Console USB Type-C cable
Flat brackets for desktop or wall mounting
Rubber footpads for tabletop installation
-
-
Warranty: This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty . Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
-
