throughout

any space.

Simple
set-up.

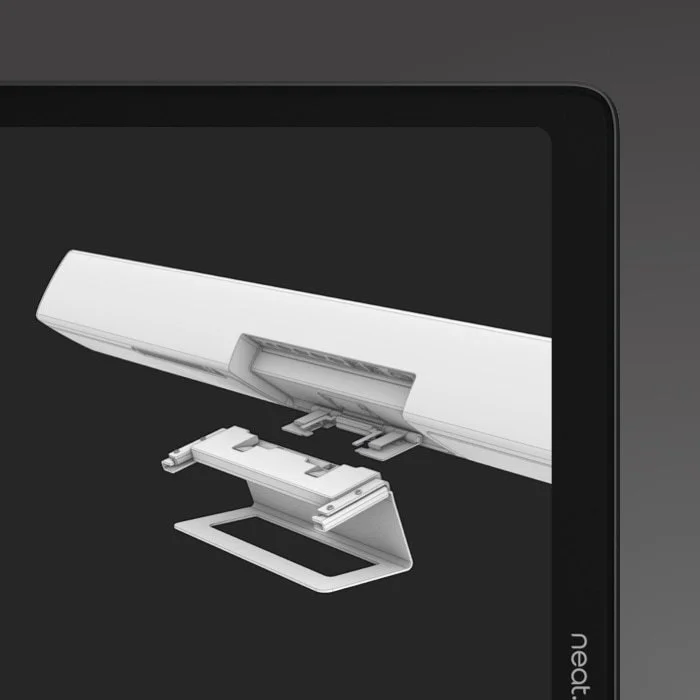

Neat Bar Pro can be placed on a table, or wall mounted either above or below one, two or three screens(*). Everything you need is in the box, including mounts and cables. Simply follow the instructions on the Neat Pad controller, and let Neat Bar Pro adapt to your placement and realign your view.

* Three screens is not yet supported by Microsoft Teams.

Scope
for more.

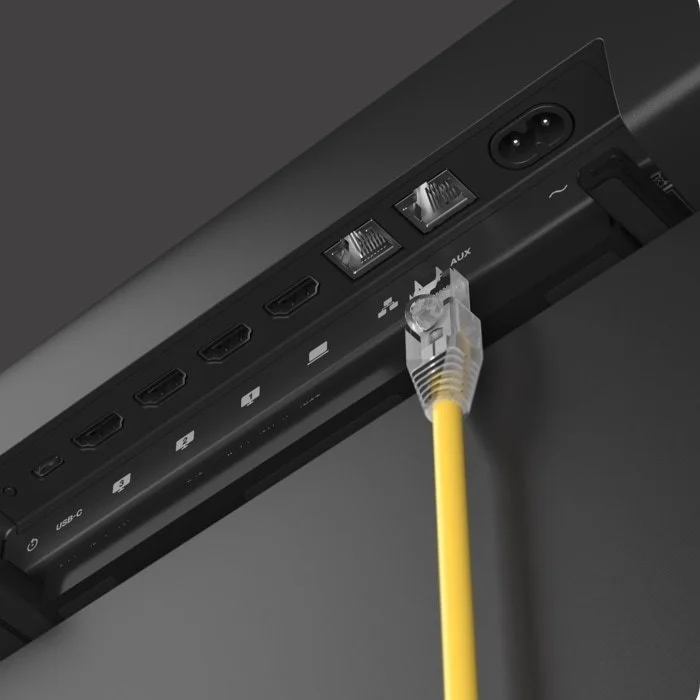

Neat Bar Pro will be audio extensible in a future software update so that you can connect it to existing installations. If needed, you can also add more Neat Pad devices and use them as multiple controllers in your meeting space or schedulers for various entrances(*).

* Multiple consoles and panels are not yet supported by Microsoft Teams

  • Automatic wakeup and sleep (ultrasonic)
    Orientation sensor (accelerometer)
    Ambient light sensor
    Camera LED
    System LED
    Tripod mount compatible (1/4-20 UNC threads)
    Table stand, wall mount and screen mount
    Security lock slot (Kensington compatible)
    Secure boot
    BYOD mode (USB passthrough)
    Triple screen support (*)
    Sensors for temperature, humidity and air quality (*)

  • Speakerbox for maximal tonal range with minimal distortion
    3 full-range speakers ready for directional and stereo sound
    Woofers with two opposing drivers for vibration cancellation
    4 tracking mics
    16 microphones in a beamforming array
    Hardware accelerated audio processing
    Ultrasonic support for wireless content sharing
    Echo cancellation
    Noise suppression
    Automatic gain control
    Dereverberation

  • Pro 100 MP camera system with wide and tele cameras
    Wide camera: 50 MP, ƒ/2.8 aperture, 113° horizontal field of view
    Tele camera: 50 MP, ƒ/1.8 aperture, 70° horizontal field of view
    Hybrid zoom up to 16x
    Automatic people framing
    Hardware accelerated video encode and decode
    Distortion correction
    Noise reduction
    Chromatic aberration correction
    Automatic white balance and color correction
    People video resolution: Up to 1080p / 30
    Content video resolution: Up to 720p / 60, 1080p / 60 or 4k / 30

  • 100-240V ~ 50/60Hz 1.2A
    Ambient operating temperature: 32° to 95° F (0° to 35° C)
    Storage temperature: -4° to 140° F (-20° to 60° C)
    Relative humidity: 10% to 90%
    Built-in power supply

  • WiFi
    Bluetooth for proximity join in Microsoft Teams
    AC power (internal power supply)
    Ethernet
    USB-C for input when connected to a touch screen (*)
    3x HDMI out for external screens
    HDMI-in for screen sharing
    Auxiliary port for 3rd party audio extensions (RJ45) (**)

  • Width: 35.04 inches (890 mm)
    Height: 3.15 inches (80 mm)
    Depth: 3.15 inches (80 mm)
    Weight: 6.83 pounds (3.1 kg)
