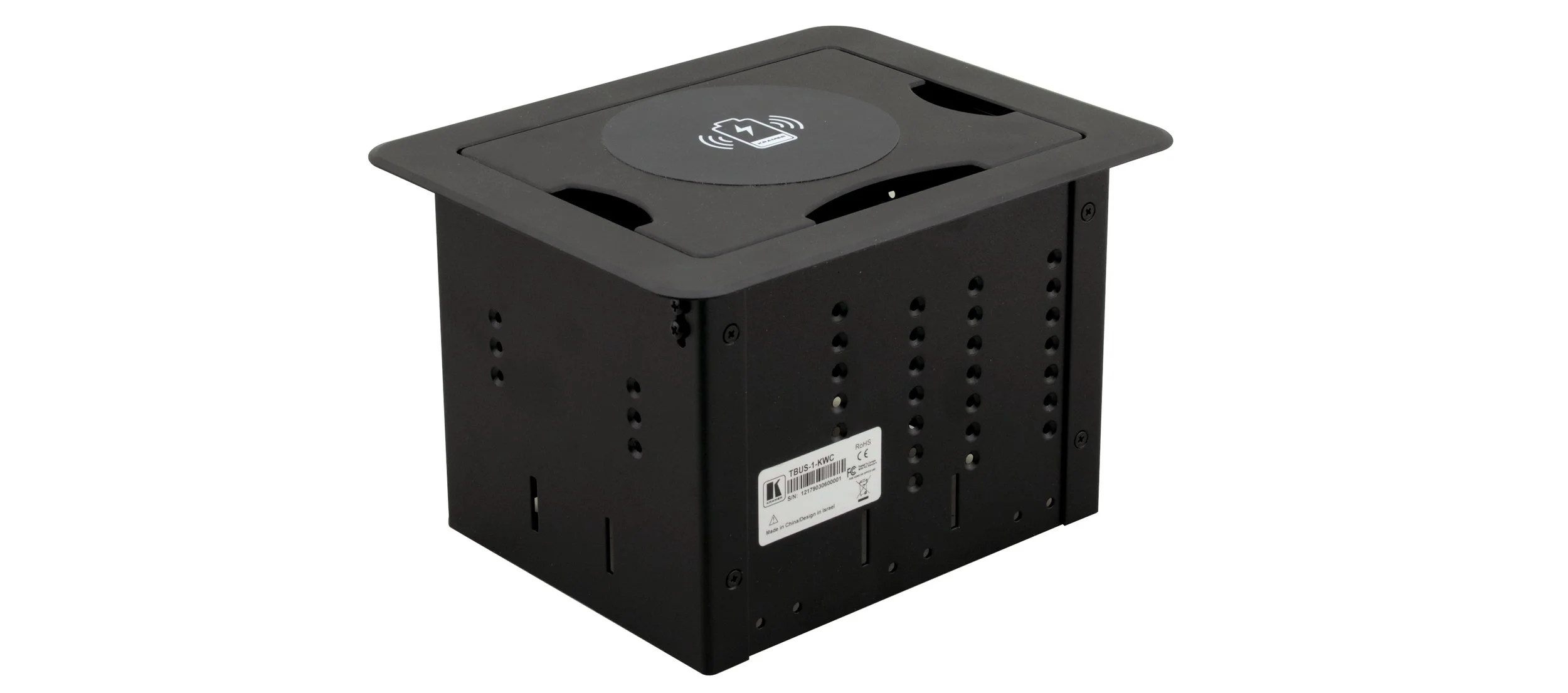

KRAMER TBUS-1-KWC

TBUS with Wireless Charging Spot

Enquire Now
Download Spec Sheet

Top Features:

  • Wireless charging spot in TBUS–1A

Table Connectivity with Built-in Wireless Charging

Revolutionise table power with the Kramer TBUS-1-KWC, a modular enclosure featuring an integrated Qi-compliant wireless charging spot flush-mounted on the bezel for cable-free mobile device charging up to 15W. Using the same frames as TBUS-1Axl, it supports 12V DC input and fits 152mm x 191mm cutouts for seamless AV integration in boardrooms and training rooms. PMA type 3 and RoHS compliant, it delivers convenient, hidden power alongside connectivity for a polished, modern setup.

  • TBUS−1−KWC is a modular enclosure using the same inner frames as the TBUS−1Axl and TBUS−1N with an integrated, surface mount, wireless charging spot flush−mounted on the TBUS bezel.

    • Integrated Wireless Charging Spot — For mobile phones integrated in the TBUS.

    • Flush Surface

    • Power Supply — Requires a supply voltage of 12V DC at 2.0A.

    • Current Input — 1A, IEEE 802.15.4 based RF channels.

    • Power Output — 6 to 15W.

    • Regulatory Compliance — PMA type 3 compliant
      EMC Emission — EN5502/CISPR22
      Safety — EN60950–1, EN60950–1, UL60950–1, IEC 60950–1, RoHS, REACH

    • Qi Standard Compliant

    • Cutout Dimensions — 152+2mm x 191+2mm (6+0.08in x 7.5+0.08in).

  • TECHNICAL SPECIFICATIONS

    Power Source
    International power sockets available from 110V to 240V AC

    Fuse Rating
    T 6.3A 250V

    Power Consumption
    Charging spot: 12V DC, 1.25A

    Charging Efficiency
    73%

    Charging Power Output
    900mA max

    Safety Regulatory Compliance
    CE compliant

    Standard
    Qi

    Operating Temperature Range
    0° to +40°C (32° to 104°F)

    Operating Humidity Range
    10 to 90% RHL, non−condensing

    Storage Temperature Range
    −40° to +70°C (−40° to 158°F)

    Storage Humidity Range
    5 to 95% RHL, non−condensing

    Accessories Included
    Six self−locking ties, metal template, power supply, power supply bracket

    Sold Separately
    Power cord, inner frames, passive wall plates and interfaces, power socket kits

    Product Dimensions
    27.36cm x 17.00cm x 13.10cm (10.77" x 6.69" x 5.16" ) W, D, H

    Product Weight
    1.6kg (3.4lbs) approx

    Shipping Dimensions
    20.80cm x 18.50cm x 30.00cm (8.19" x 7.28" x 11.81" ) W, D, H

    Shipping Weight
    2.8kg (6.1lbs) approx

  •  TBUS–1–KWC User Manual
