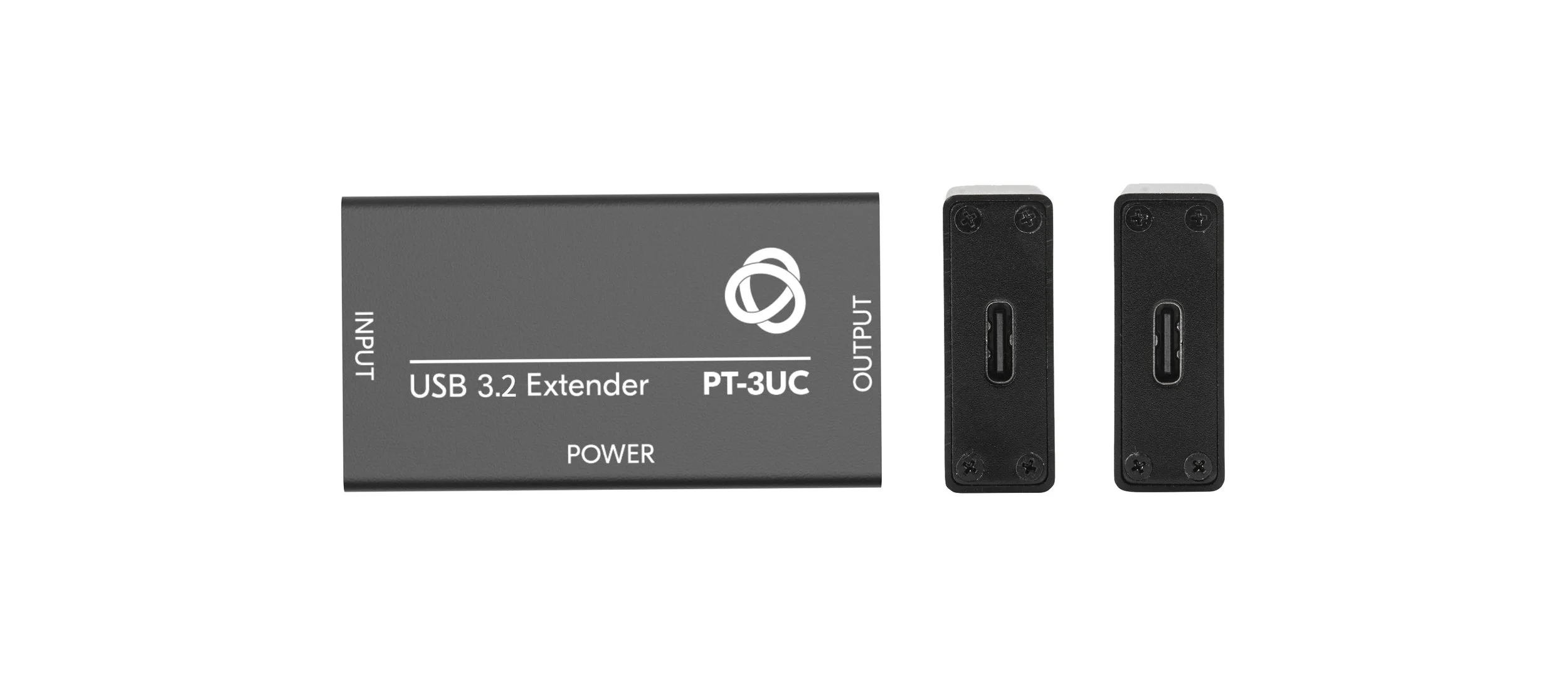

Kramer PT-3UC

Active USB 3.2 Extender

Enquire Now
Download Spec Sheet

Top Features:

  • Active USB 3.1 Extender

  • Plug & Play

  • USB 3.1 super speed + (10Gbps) standard

  • USB 2.0, 1.1 backwards compatible

Extend USB Signals with SuperSpeed Reliability

Boost USB reach with the Kramer PT-3UC, an active extender reclocking USB 3.2 Gen2 signals up to 10Gbps over longer cables, supporting Video ALT mode and backward compatibility with USB 3.0/2.0/1.1 without drivers. Powered via micro-USB, it buffers signals to eliminate dropouts and noise in AV setups using extended USB-C connections. CE/FCC certified, it's essential for stable high-speed data/video transmission in professional installations.

  • PT−3UC is an innovative active USB 3.1 extender that extends the USB cable distance between the host and the device by reclocking and equalizing the USB signal. Placing PT−3U in the transmission path, removes dropout and digital noise (sparkles) in your installation that may result from using long USB cables.

    • True Plug & Play — No additional driver program is needed.

    • USB 3.1 Super Speed (10Gbps) Standard — Compliant with USB 3.1.

    • Video ALT mode

    • Backwards Compatible — USB 3.0, 2.0, 1.1

    • external power supply.

    • Buffers incoming & outgoing signal.

    • Certifications — CE, FCC, REACH, ROHS.

  • TECHNICAL SPECIFICATIONS

    Inputs
    USB 3.2 Gen 2: On a USB type–C female connector
    Balanced Line Level Input

    Outputs
    USB 3.2 Gen 2: On a USB type–C female connector

    General
    Max. Data Rate: 10Gbps
    Max. Video Resolution: 4K@60
    Max. Output Power: 2.5A (12.5W)
    Max. Range: 10Gbps — 4m, 2m to PT–3UC, 2m to Device
    Backwards Compatibility: USB 3.0, 2.0, 1.1

    Power
    Self Consumption: ≤1 W
    External Power Supply: via a micro−USB connector

    Environmental Conditions
    Operating Temperature: 0℃ to 45℃
    Operating Humidity: 10% to 85% RH
    Storage Temperature: −10℃ to +70℃
    Storage Humidity: 5% to 90% RH
