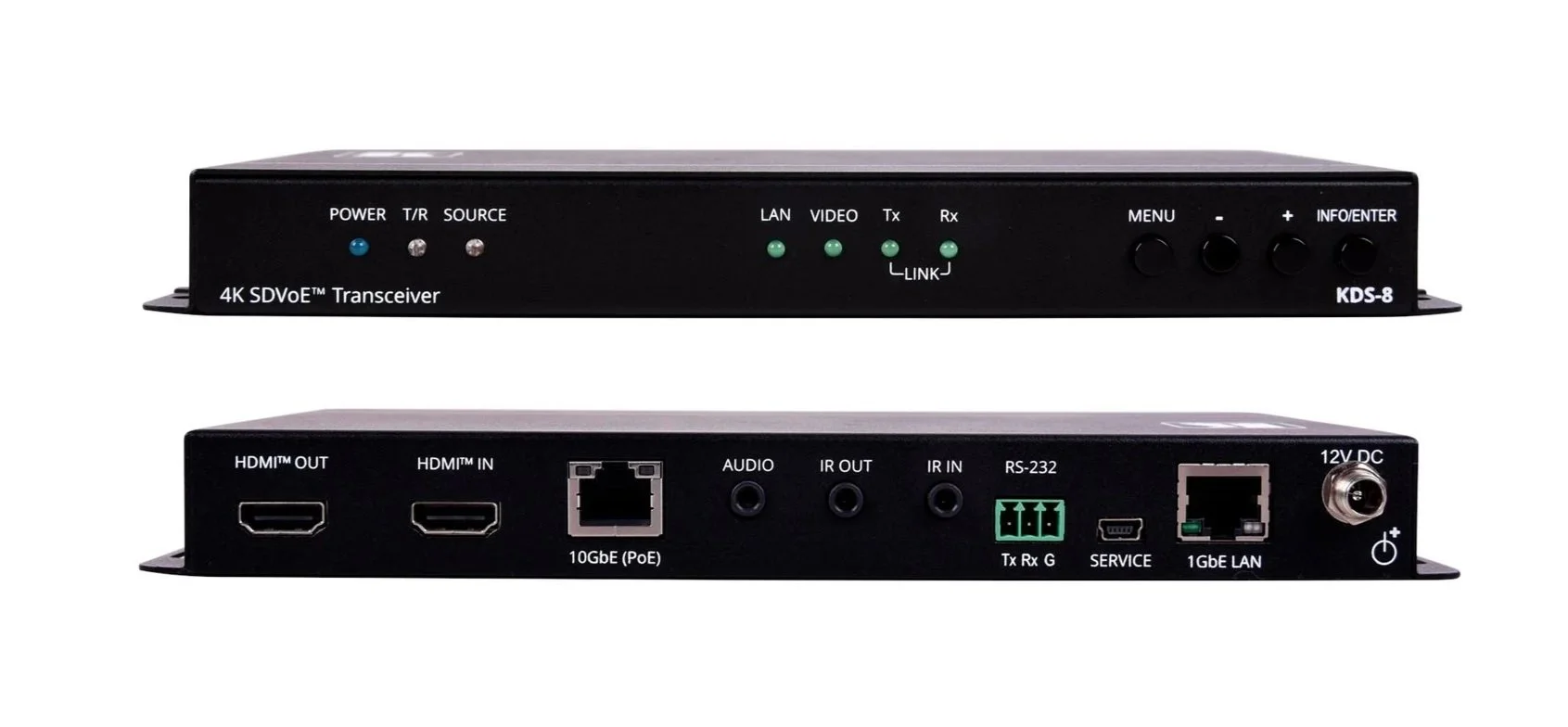

KDS−8 is a high−performance, zero latency, 4K@60Hz (4:4:4) video streaming transceiver for streaming via Ethernet over copper cable. KDS−8 can be set as either an encoder or decoder. As an encoder, it encodes and streams the HDMI input along with IR, RS−232, and analog audio, over an IP network. As a decoder, it receives the encoded signal and decodes it for output.

• High–Performance Video Streaming Transceiver — Streams up to 4K@60Hz (4:4:4) resolution signals over a 10G network interface, providing lossless compression.

• Maximum Compatibility — Fully standard and compliant SDVoE™ codec, enables compatibility with other software and hardware streaming platforms.

• Streamlined Management and Configuration — Kramer KDS–8–MNGR device (sold separately) provides a central point of management and enables creating multiple virtual matrices, video walls and multi–view configurations. In addition, KDS–8–MNGR supports preset configurations that can be activated using Kramer Control.

• HDCP 2.2 Compliant, HDR Support, Genlock and Fastswitch Modes Support

• High–Speed 10G Network Switch — Managed switch provides: multicast, jumbo frames, IGMP snooping and fast leave.

• Analog Audio Embedding — Provides an unbalanced analog audio port for embedding audio into the streaming signal.

• Bi–directional IR over IP — Control an IR device located on the decoder side from the encoder and vice versa.

• Bi–directional RS–232 over IP — Control a serial device located on the decoder side from the encoder and vice versa.

• Video Wall Support.

• Multiview Support

• Easy, Cost–Effective Maintenance — LED indicators for main power, Tx/Rx mode setting, HDMI video source detection, and Tx and Rx transmission enable easy local maintenance and troubleshooting.

• Simple System Management — Remote system management support to enable quick and efficient remote system and device life–cycle management.

TECHNICAL SPECIFICATIONS

Inputs
1 HDMI: On a female HDMI connector
1 IR: On a 3.5mm mini jack. If you want to use the IR extension, it is necessary to order these accessories from Kramer:
3300−500028 PT−5R/T IR receiver cable 2m, 3.5mm mini jack,
3300−500029 PT−5R/T IR emitter cable 2m, and a 3.5mm mini jack

Outputs
1 HDMI: On a female HDMI connector
1 IR: On a 3.5mm mini jack. If you want to use the IR extension, it is necessary to order these accessories from Kramer:
3300−500028 PT−5R/T IR receiver cable 2m, 3.5mm mini jack,
3300−500029 PT−5R/T IR emitter cable 2m, and a 3.5mm mini jack

Ports
1 10GbE Ethernet: On an RJ−45 connector
1 Unbalanced Stereo Audio: On a 3.5mm mini jack
1 1GbE Ethernet: On an RJ−45 connector
1 RS-232: On a 3−pin terminal block connector

Video
Standards Compliance: 10/12−bit HDR (Point−to−Point and Genlock mode only), HDCP 2.2 & 1.4, DVI 1.0
Extension Line Signal Compression: Ultra−light compression, lossless for most content
Range: Up to 100m in point−to−point mode

Audio
Standards Compliance: Supports pass−through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream from HDMI sources
Analog audio supports 20 Hz~20 kHz, 24−bit 48 kHz sampling rates

Power
Power Source: 12V DC
Consumption: 3A
PoE Budget: 25W (not including cable loss)

Environmental Conditions
Operating Temperature: 0 to +45°C (32 to +113 °F), 10% to 90%, non–condensing
Storage Temperature: –20 to +70°C (–4 to +158 °F), 10% to 90%, non–condensing
Humidity: 10% to 90%, non–condensing

Product Dimensions
23.10cm x 11.60cm x 2.50cm (9.09" x 4.57" x 0.98") W, D, H
Product Weight: 0.5kg (1.1lbs) approx

Shipping Dimensions
39.00cm x 20.20cm x 6.20cm (15.35" x 7.95" x 2.44") W, D, H
Shipping Weight: 1.2kg (2.6lbs) approx
