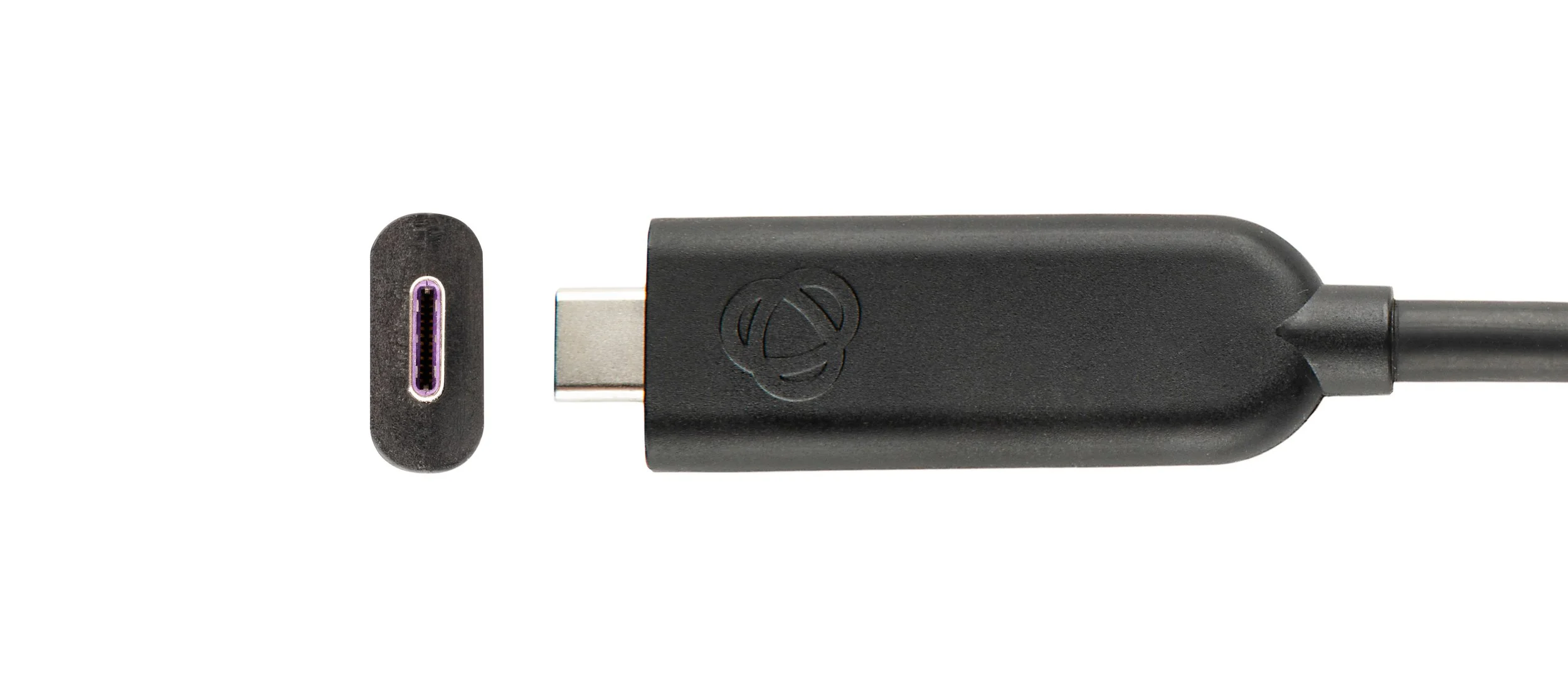

Kramer CLS-AOCU32/FF

USB 3.2 GEN–2 Full Featured USB–C (M) to USB–C (M) Active AOC Cable

Enquire Now
Download Spec Sheet

Top Features:

  • Length — 15–35ft (4.6–10.7m)

  • K–Lock Connectors

High-Speed USB-C Connectivity Over Distance

Empower your AV infrastructure with the Kramer KDS-8, a versatile transceiver for zero-latency 4K@60Hz (4:4:4) HDR video streaming over 10G copper networks using SDVoE codec with lossless compression. It supports HDCP 2.2, Genlock, Fastswitch, and bi-directional IR/RS-232 over IP for seamless device control, plus analog audio embedding and multicast efficiency via IGMP snooping. Create virtual matrices, video walls, and multiviews managed centrally, ensuring broad compatibility and easy maintenance with LED indicators-ideal for real-time professional setups like control rooms and live events.

  • CLS−AOCU32/FF is a USB−C(M) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ Active AOC Hybrid cable offering a whole new level of reliable connectivity thanks to kramer's unique K−lock. Transfers Video 4K@60, data at incredible speeds (10G) in parallel to USB 2.0, supports 100W charging power − all with just one Active AOC Hybrid cable.
    CLS−AOCU32/FF offers throughput of up to 10Gbps when used with a USB 3.2 host and device. The symmetrical, low profile USB Type−C connector, with the integrated K−Lock mechanism, can be plugged in any orientation, thus eliminating the frustration of getting the port insertion just right.

    • 4K@60 Video

    • Reversible USB Type–C Connector — With integrated locking mechanism.

    • Transfer Rates — Up to 10Gbps.

    • Current Rating — 100W power (5A, 20V).

    • Compatibility — PC, Mac & Mobile.

    • Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices.

    • USB Backward Compatibility — 1.0, 1.1, 2.0, and 3.0.

    • RoHS REACH Compliant

  • TECHNICAL SPECIFICATIONS

    USB Features
    Type: USB 3.2 GEN–2
    Video: 4K@60 4:4:4 (DP Alt Mode)
    Note: Supports two lanes for video and two lanes for data
    Data: 10Gbps (USB 3.2 Gen 2) & USB 2.0
    Power Charging: 20V, 5A (100W)
    ETH Support: 10/100/1000 Mbps

    Physical
    Connector A: USB Type–C Male Nickel plated K–Lock connector with gold pins
    Connector A Length x Width x Height: 39.5 x 18 x 9mm (1.6" x 0.71" x 0.356")
    Note: In installations where space is limited, it is recommended to add the flexible and tiny female to male adapter: Model: PG−U32/FF Part number: 96−0235100
    Connector B: USB Type–C Male Nickel plated K–Lock connector with gold pins
    Connector B Length x Width x Height: USB Type–C Male Nickel plated K–Lock connector with gold pins

    Jacket
    Material: PVC, LSHF
    Color: Black
    Diameter: 5.8mm ±0.2mm (0.23" ±0.008mm)
    Bending Radius: 36mm (1.42")

    Electrical
    Temperature Rating: 80°C (176°F)
    Voltage Rating: 30V
    Conductor Resistance – 28AWG: 237Ω/km MAX. at 20°C (68°F)
    Conductor Resistance – 20AWG: 38Ω/km MAX. at 20°C (68°F)

    Standards Compliance
    Safety: CE, FCC
    Flammability Rating: CPR Dca
