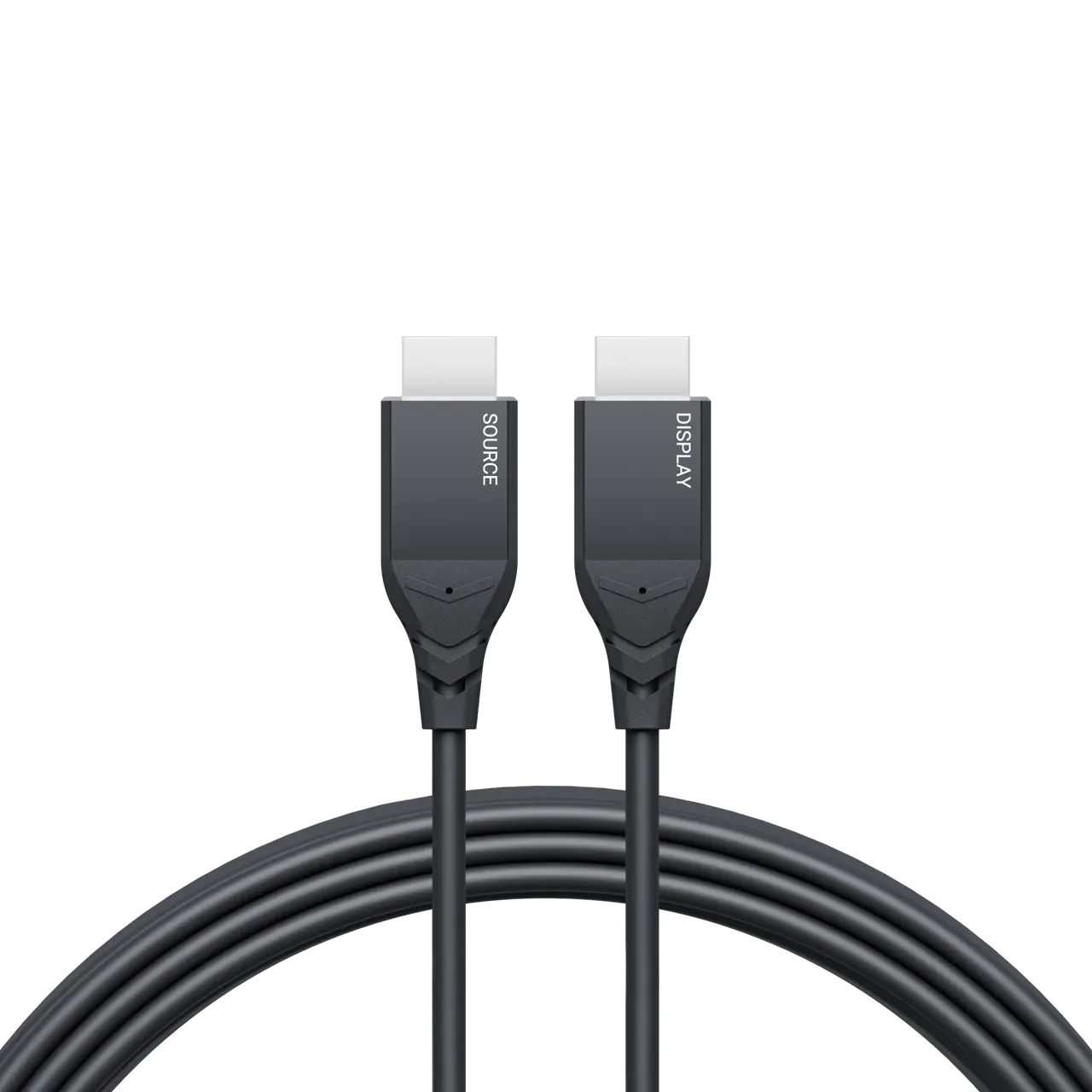

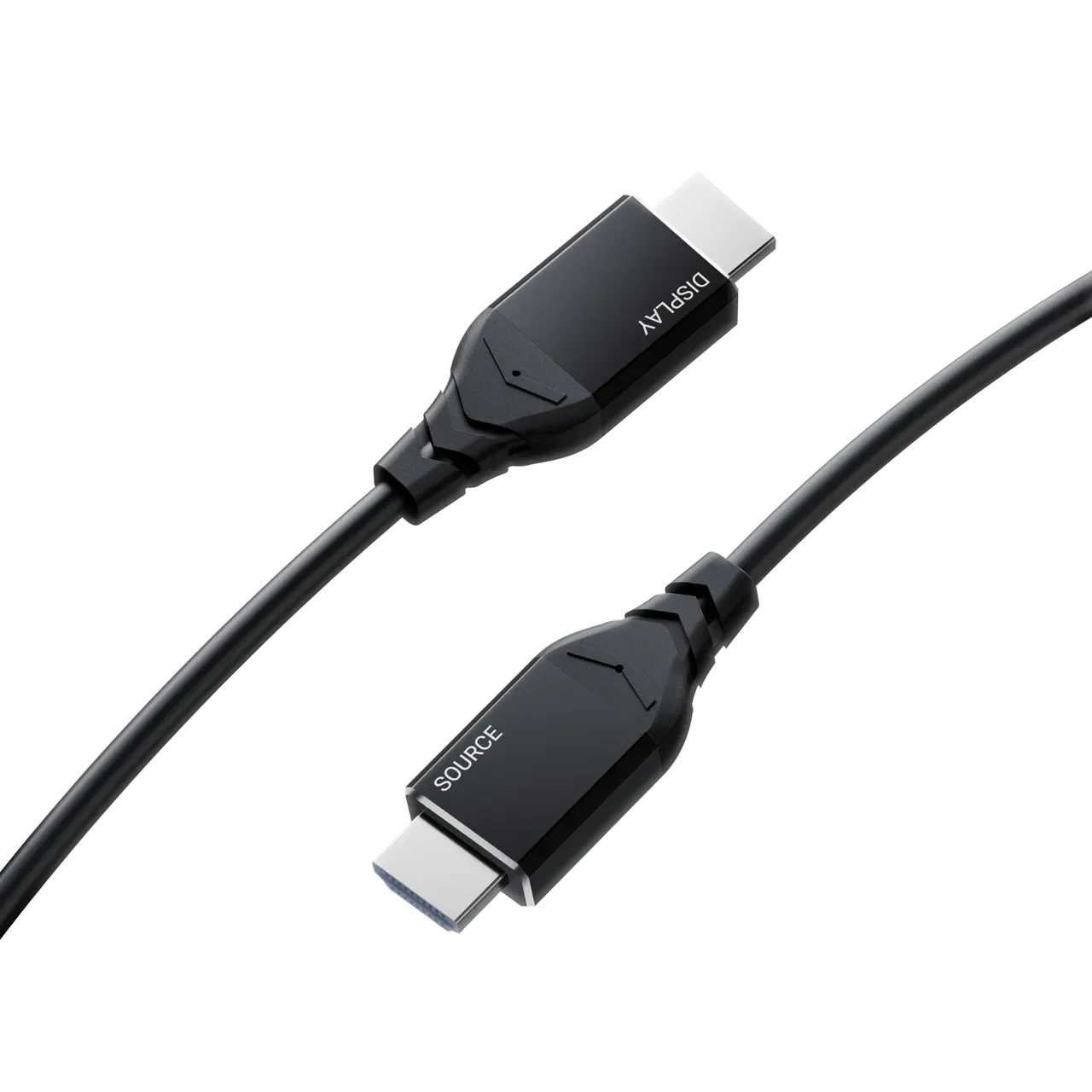

Insta360 Connect Extra Long HDMI Cable

Available in 33ft (10m) and 98ft (30m).

Enquire Us Now

Top Features:

  • Available in 33ft (10m) and 98ft (30m).

  • High bandwidth guarantees uncompressed video and uninterrupted communication.

Extra Long HDMI Cable

Designed for an 18GBps bandwidth to ensure your broadcasts are never interrupted and always in the highest quality.

Going the Distance.

Connection is always possible with our extra long cable.

  • Connection
    HDMI Type A

    Bandwidth
    18 Gbps

    Resolution
    480 / 720 / 1080p, 4K

    HDMI Version
    2.0, backwards compatible with 1.4

    HDCP Version
    1.4 / 2.2

    Cable
    Fiber/Copper, 50/125 µm multimode fiber

    Audio Return Channel
    Included

    Operating Temperature
    23°F to 167°F (-5°C to 75°C)

    Tensile Strength
    100 N to 300 N

    Crush Loads
    100 N to 500 N (500 N for instantaneous load)

    Dynamic Minimum Bend Radius
    10 mm (0.4 in)

    Minimum Duct Diameter
    25 mm (1.0 in) (non-bendable)

    Minimum Cable Diameter
    4.1 mm (0.2 in)


    1. Before wiring, test the signal to ensure it is transmitting properly.

    2. Ensure you differentiate between the input and output ports when using the Extra Long HDMI Cable, as it supports one-way transmission only.

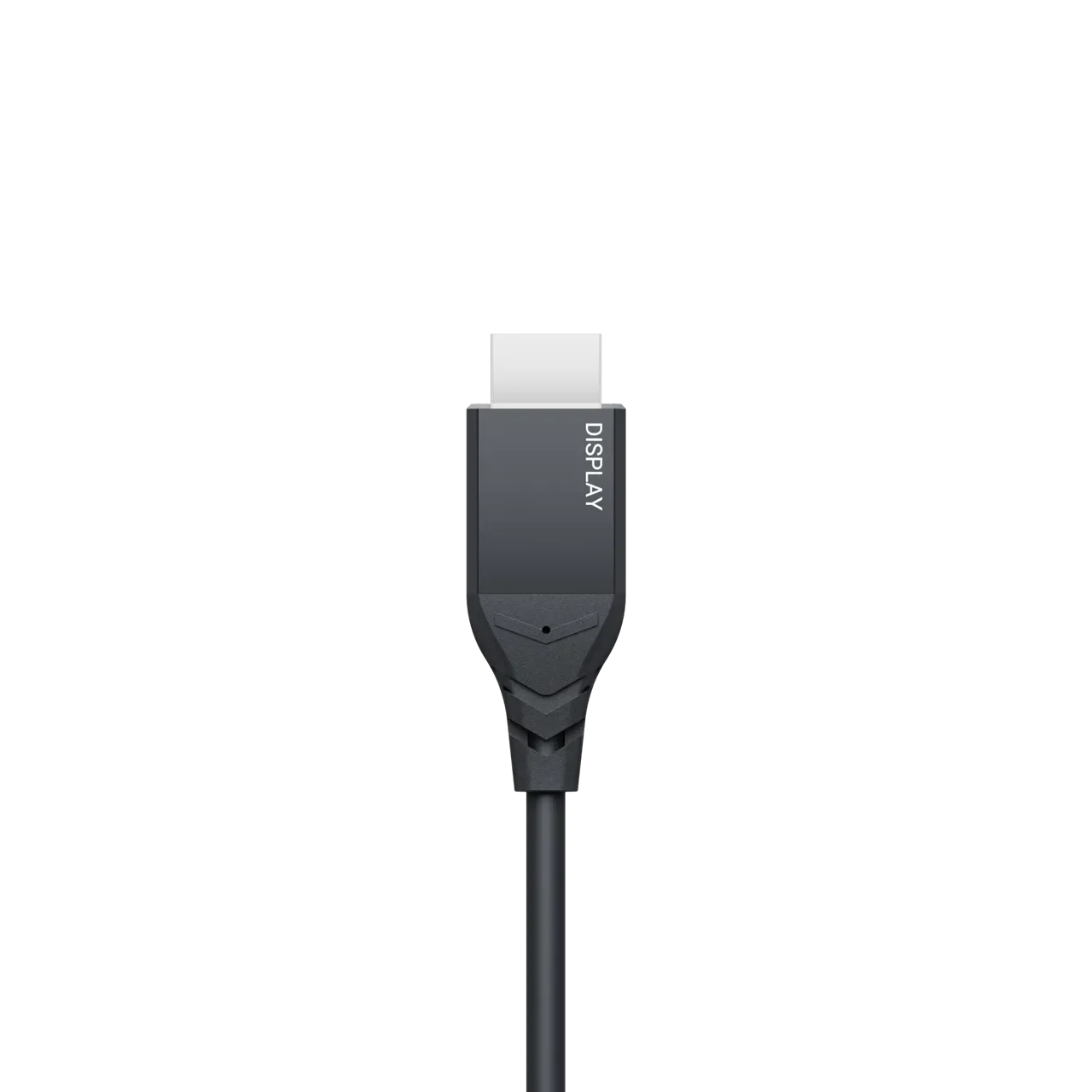

    3. Display end: Connect to a display device, such as a monitor or TV, or to the Insta360 Connect HDMI Input port.

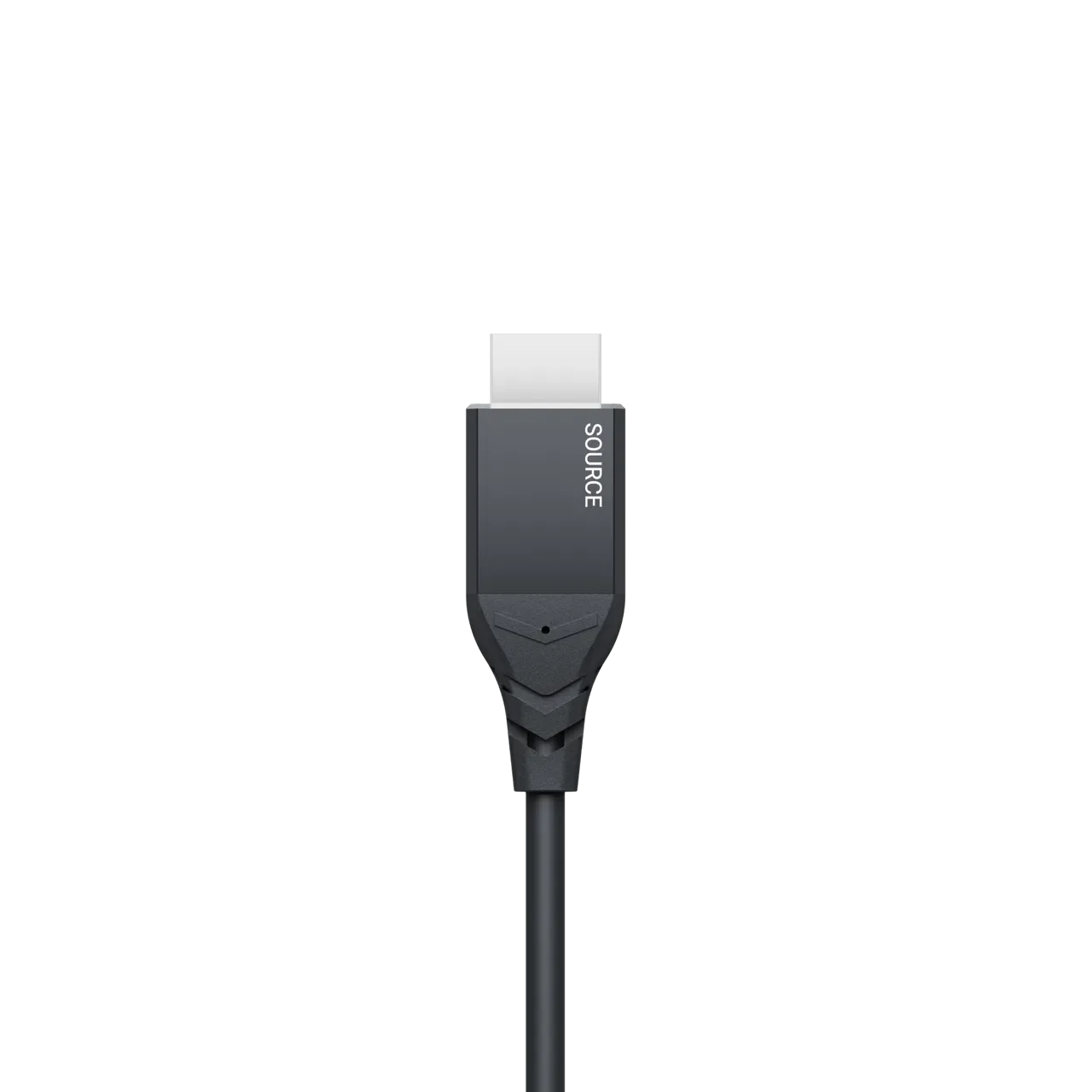

    4. Source end: Connect to a signal source, such as a computer, or to the Insta360 Connect HDMI Output port (HDMI 1/2 port).

    5. When wiring, use the wire puller at the front and avoid pulling the cable or connector directly.

    6. The connector contains a built-in chip. Avoid drops and impacts, and always hold the connector when plugging or unplugging the cable.

    7. Avoid heavy or sharp objects near the cable to prevent damage, and do not pull or tie it forcefully.
