U-BRIDGE USB-C

USB-C EXT – USB and DP Alt Mode

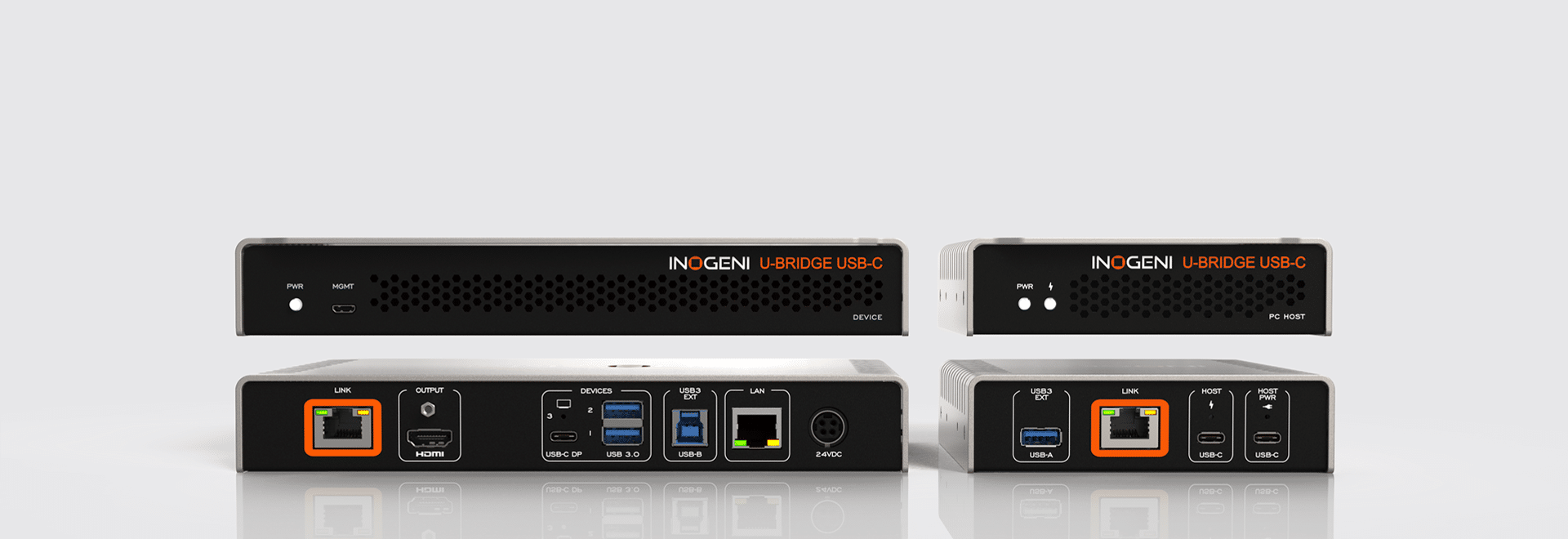

U-BRIDGE USB-C

4K60 USB-C extender up to 40 m (132 ft.) over CAT6A
(Available Q2-2026)

U-BRIDGE USB-C DUO

4K60 USB-C extender up to 40 m (132 ft.) over CAT6A with dual screen extended desktop functionality
(Available Q3-2026)

Both extend full USB-C functionality—including USB 2.0, 100W laptop charging, and DisplayPort Alternate Mode

How it works

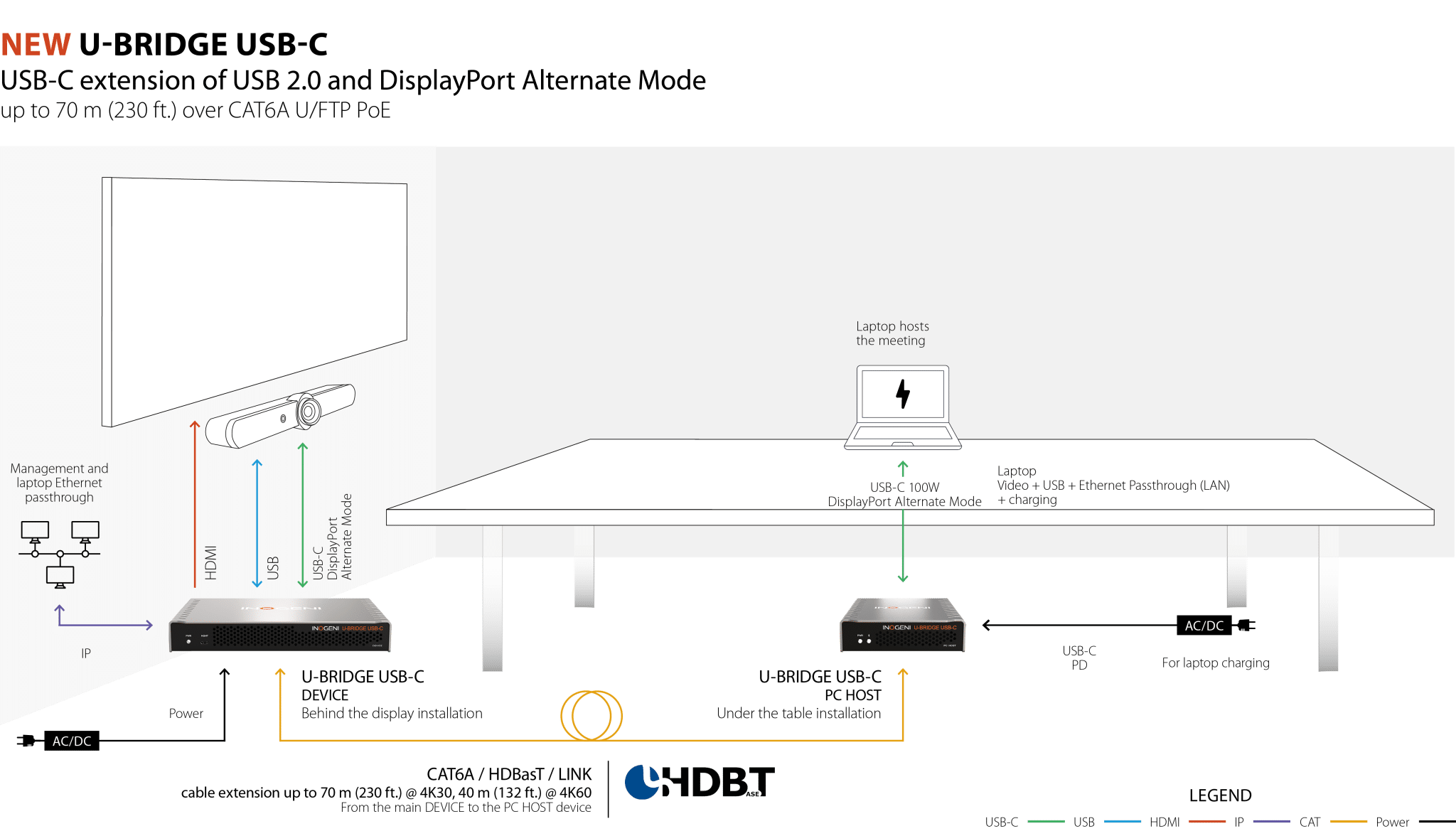

Extend your USB-C videobar UC system, CODEC, or videoconferencing system to your laptop up to 70 meters (230 feet) using the U-BRIDGE USB-C.

The U-BRIDGE USB-C extender is specifically designed to extend USB-C functionality, including USB data, DisplayPort Alternate Mode, power, and Ethernet, from your laptop to your USB-C-equipped videobar or CODEC. With the capability to extend connections up to 70 meters (230 feet) over a single CAT6A cable, it guarantees reliable performance and high-quality, uncompressed video at 4K60 HDMI output.

Technical Specifications

  • Description

    Unlocking Cisco Webex BYOM application
    Converts Ultra HD to USB 3.0 with an HDMI loop and external power for BYOM applications. It connects your HDMI cameras, video sources or CODECs to your third-party laptop. USB passthrough compatible.

    Recognized as USB camera (UVC); supports HDMI input as video camera or content source (Zoom Rooms content camera compatible).

  • Technology

    HDBaseT 3.0

    Range

    Direct connect up to 70m (230ft) over CAT6A U/FTP

    Medium

    CAT6A U/FTP (Discover the INO-CAT6A cable)

    NOTE: We do not recommend using a crimp tool for attaching terminations. Instead, we highly recommend utilizing toolless terminations to ensure the preservation of signal integrity.

  • Speeds

    USB 2.0: up to 480 Mbps when USB devices are extended
    * USB 3.2 Gen 1 if devices are extended with the use of our U-BRIDGE 3 extension

    Transfers support

    Bulk, isochronous, interrupt and control types
    Built-in hardware acceleration for isochronous and bulk transfers

  • HDCP compliance

    Compliant with HDCP2.3, HDCP2.2 and HDCP1.4

    HDMI compliance

    Compliant with HDMI2.0b, HDMI1.4 and DVI1.0

    Sampling frequency

    600MHz

    Chroma subsampling

    YUV/RGB
    4:4:4, 4:2:2

    CEC

    Ability to send CEC commands to connected HDMI display sink

  • USB host connector

    1 x USB Type-C receptacle with mounting screw hole for connection to the laptop.

    • USB2.0

    • USB 3.2 Gen 1 (with the use of our U-BRIDGE 3 extension)

    • Video up to 3840x2160p60 / 4096x2160p60Network connectivity

    • Charging through provided USB-C power supply

    USB power connector

    1 x USB Type-C receptacle with mounting screw hole for USB-C power supply

    • Power source input

    • USB2.0 connection reserved for management

    Link connector

    1x RJ45

    USB3-EXT connector

    1 x USB-A connector for connection to our U-BRIDGE for USB3.2 Gen 1 support

    LED

    1 x power LED
    1 x charging status LED

    Dimensions (W x L x H)

    7.0 cm x 9.7 cm x 2.3 cm
    2.76 in x 3.82 in x 0.90 in

    Weight

    470 g (1.04 lb)

    Mounting

    Brackets provided

    Enclosure material

    Aluminum/metal case

    Power

    PC HOST is powered by the DEVICE module, except for charging the laptop

  • USB connectors

    2 x USB-A (USB3.2 Gen 1) receptacle
    1 x USB-C (USB3.2 Gen 1) receptacle with mounting screw hole

    Video outputs

    Single display :

    • 1 x USB-C DisplayPort Alternate Mode – Source

    • 1 x HDMI 2.0 receptacle with cable locking option
      Up to 3840x2160p60 / 4096x2160p60

    Dual displays :

    • 1 x USB-C DisplayPort Alternate Mode – Source

    • 2 x HDMI 2.0 receptacles with cable locking option
      Up to 3840x2160p60 / 4096x2160p60

    Link connector

    1x RJ45

    USB3-EXT connector

    1 x USB-B connector for connection to our U-BRIDGE 3 in case user needs USB3.2 Gen 1 support

    LED

    1x power LED

    Available current

    Up to 1.8A shared between ports

    Dimensions (W x L x H)

    7.0 cm x 13.7 cm x 2.3 cm
    2.76 in x 5.39 in x 0.90 in

    Weight

    800 g (1.76 lb)

    Mounting

    Brackets provided

    Enclosure material

    Aluminum/metal case

    IP interface

    10/100Mbps
    Supports DHCP or static addressing
    Used for control and USB-C network connectivity over the PC HOST module

  • Package dimensions (W x L x H)

    35.5 cm x 29 cm x 12.6 cm
    14.0 in x 11.4 in x 4.96 in

    Power supply

    100-240V AC Input, 24V 2.5A DC output

    Package weight

    2960 g (6.53 lbs)

    Package contents

    1x PC HOST extender module
    1x DEVICE extender module
    1x USB Type-C to Type-C cable
    1x installation guide
    2x mounting brackets for the power supply
    2x mounting brackets for the USB-C power supply
    2x mounting brackets for the PCHOST module
    2x mounting brackets for the DEVICE module
    16x black wooden screws
    1x power supply 100-240V AC Input, 24V 2.5A DC output
    1x USB-C power supply – 100-240V AC input, up to 20V 5A DC output
    International power adapter with country-specific cord (North America, EU, UK, Australia/NZ, or Japan)

    Operating temperature

    0°C to 50°C
    32°F to 122°F

    Storage temperature

    -20°C to 70°C
    -4°F to 158°F

    Operating humidity

    20% to 80% relative humidity, non-condensing

    Storage humidity

    10% to 90% relative humidity, non-condensing

  • U-BRIDGE USB-C - UPC code

    051497480417

    U-BRIDGE USB-C DUO - UPC code

    051497480431

    Origin

    Canada

    Warranty

    5 years

  • Certifications – Device

    FCC, CE, UKCA, RoHS, IEC62368, SoV, RCM, NOM

    Certifications – Power supply (60W)

    FCC, CE, UKCA, CB, UL, TUV, EMC

    Certifications – Power supply (100W)

    FCC, CE, UKCA

    TAA-compliant

    Yes

    • 1x PC HOST extender module

    • 1x DEVICE extender module

    • 1x USB Type-C to Type-C cable

    • 1x installation guide

    • 2x mounting brackets for the power supply

    • 2x mounting brackets for the USB-C power supply

    • 2x mounting brackets for the PCHOST module

    • 2x mounting brackets for the DEVICE module

    • 16x black wooden screws

    • 1x power supply 100-240V AC Input, 24V 2.5A DC output

    • 1x USB-C power supply – 100-240V AC input, up to 20V 5A DC output

    • International power adapter with country-specific cord (North America, EU, UK, Australia/NZ, or Japan)
