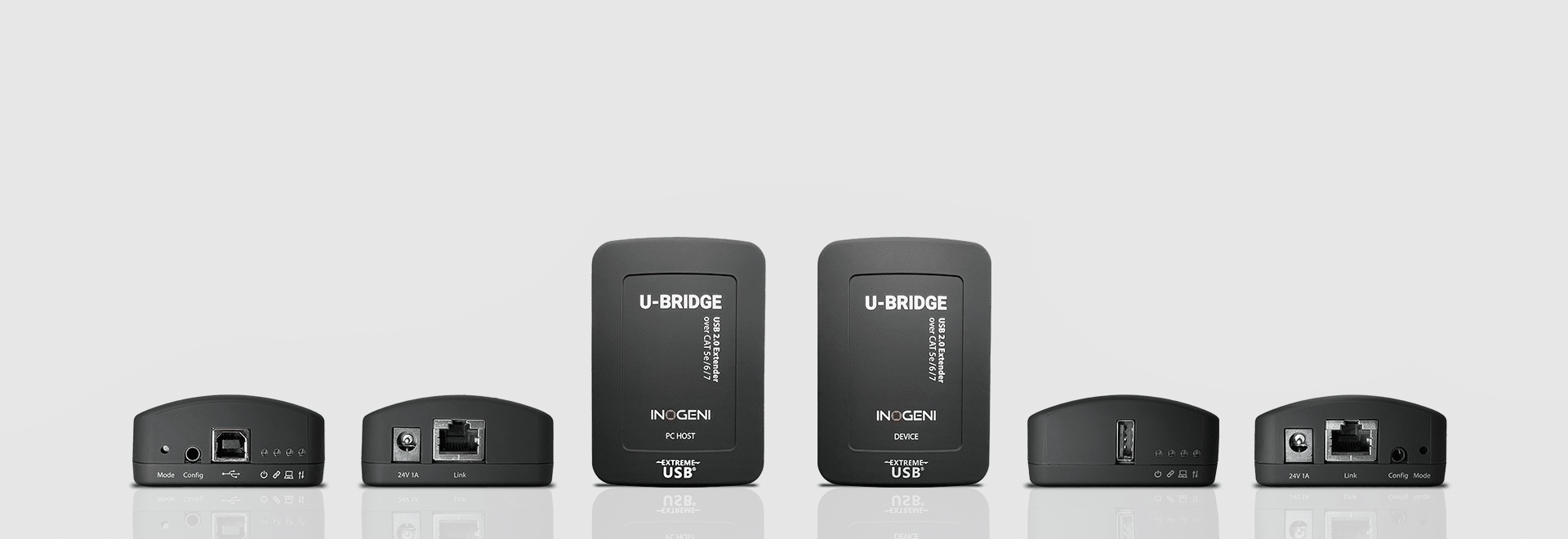

U-BRIDGE

USB 2.0 camera and device extender

The U-BRIDGE USB 2.0 video camera and audio extender enables high-speed USB 2.0 connections up to 100 m /330 ft. over a single CAT 5e/6/7 cable.

For cameras and any USB 2.0 peripheral, the new U-BRIDGE USB 2.0 extender is the solution to the interoperability challenges faced by AV installers looking for a reliable long-distance USB camera extension to maintain high-quality video.

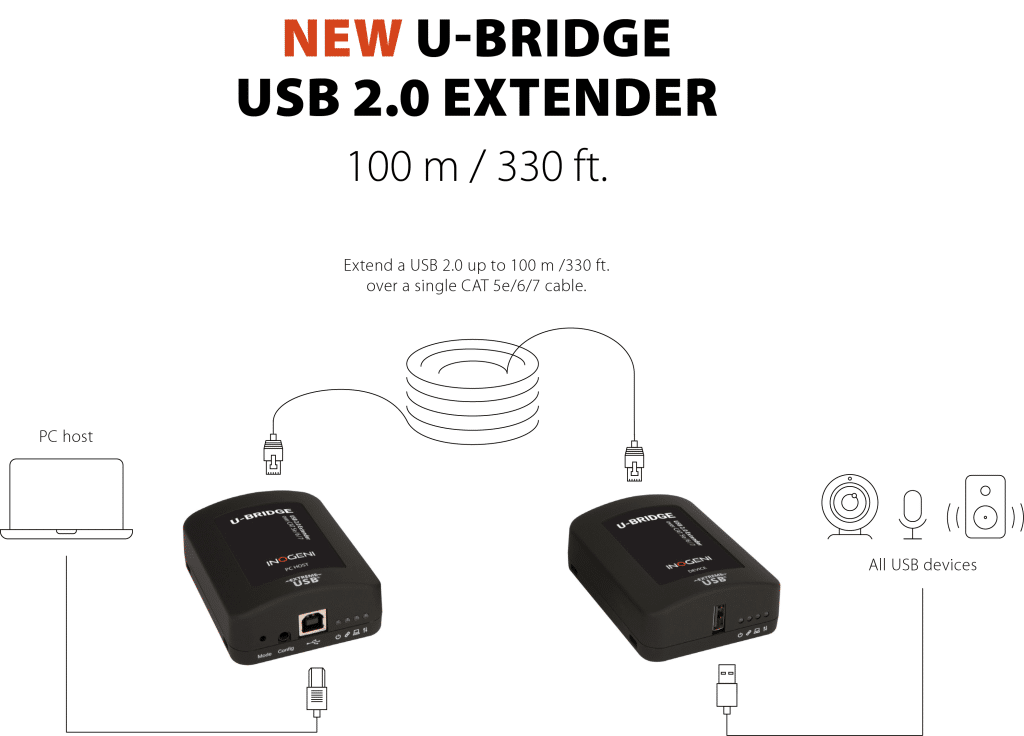

How it works

Extend your USB 2.0 camera to any INOGENI USB input, CODEC, or videoconferencing system. Use an INOGENI converter to extend your HDMI camera with the U-BRIDGE.

Features

The U-BRIDGE offers versatility and reliability for USB 2.0 extensions of up to 100 m (330 ft.). The U-BRIDGE enables users to extend beyond the standard 5 m cable limit for USB peripheral devices.

Designed for extension of USB 2.0 devices and systems

  •  DEVICES: USB 2.0 devices

    • Cameras, whiteboards, microphones, audio devices, and any other USB devices (hard drives, flash drives or keyboards)

  • PC HOST: Videoconference systems:

    • Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs or Room PC from Lenovo, Poly, Crestron, Cisco, Logitech, Q-SYS or Barco

  • INOGENI devices before or after the U-BRIDGE:

    • Mixers and switchers: SHARE2, SHARE2U, CAM300, CAM230, TOGGLE

    • Converters: 4KX-PLUS, 4KXUSB3, 4K2USB3, HD2USB3 and the U-CAM

  • Extend BYOM to the laptop with the TOGGLE and the U-BRIDGE.

  • Supports all USB 2.0/1.1 devices of up to 480 Mbps

  • Flexible power: Connect the power adapter to either the PC Host or Device

  • Supplies up to 1 Amp to USB port

  • Mass storage acceleration for USB 2.0 device bulk transfers

  • Included:

    • 1x USB 2.0 cable and 1x AC power adapter with International powers cords

  • Extreme USB®suite of features:

    • Transparent USB extension

    • True plug and play; no software drivers required

    • Works with all major operating systems:  Windows®, macOSTM, and Linux®

  • Easy to install with two mounting slots on each side for use with a cable ties/zap straps

  • Two-year warranty

Plug & Go

INOGENI has developed an advanced testing procedure to ensure reliability and avoid interoperability issues for the USB 3.0 extension. U-BRIDGE 3 connects a USB 3.0 camera and device or an INOGENI device to any PC or videoconferencing system, such as Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs, as well as Room PCs from Lenovo, Poly, Crestron, Cisco, Logitech, MAXHUB, Q-SYS and Barco.

Technical Specifications

  • Description

    The U-BRIDGE USB 2.0 extender enables high-speed USB 2.0 connections of up to 100 m/330 ft. over a single CAT 5e/6/7 cable.

  • Range

    Direct connect up to 100 m/330 ft. over CAT 5e/6/7

  • Speeds

    USB 2.0: up to 480 Mbps
    USB 1.1: up to 12 Mbps

  • USB connector

    1x USB Type B receptacle

    Link connector

    1x RJ45

    Dimensions (W x L x H)

    6.4 cm x 8.75 cm x 3.0 cm
    2.52” x 3.44” x 1.18”

    Weight

    80 g (0.18 lb)

    Mounting

    Slots for cable ties

    Enclosure material

    Black ABS with rubberized coating

  • USB connector

    1x USB Type A receptacle

    Link connector

    1x RJ45

    Available current

    Up to 1A to USB port

    Dimensions (W x L x H)

    6.4 cm x 8.75 cm x 3.0 cm
    2.52” x 3.44” x 1.18”

    Weight

    90 g (0.20 lb)

    Mounting

    Slots for cable ties

    Enclosure material

    Black ABS with rubberized coating

  • Consumed USB tiers

    1 tier
    The device adds 1 tier to the USB chain because of the embedded USB hub.

  • Package dimensions (W x L x H)

    24.5 cm x 25 cm x 7.9 cm
    9.65” x 9.84” x 3.11”

    Power supply

    100-240V AC input, 24V 1A DC output.
    Apply at either PC Host or Device modules.

    Package weight

    1190 g (2.62 lb)

    Package content

    1x PC Host extender module
    1x Device extender module
    1x USB 2.0 cable
    1x Quick Start Guide
    1x power supply 100-240V AC input, 24V 1A DC output
    International power adapter with country-specific cord (North America, EU, UK, Australia/NZ, or Japan)

    Operating temperature

    0° to 50° C
    32° to 122° F

    Storage temperature

    -20° to 70° C
    -4° to 158° F

    Operating humidity

    20% to 80% relative humidity, non-condensing

    Storage humidity

    10% to 90% relative humidity, non-condensing

  • Code UPC

    051497302832

    Origin

    Designed in Canada and made in China

    Warranty

    5 years: Products purchased by the end-user after August 1, 2024
    2 years: Products purchased by the end-user before to August 1, 2024

  • Download

    Certifications available on the Support Tab

    Certifications

    EMC: FCC (Class A), CE (Class A)
    E    nvironmental: RoHS2, REACH,
    Conflict Minerals
    Safety: Flammab    ility V-0
    IEC62368-1
    RCM

  • The U-BRIDGE USB 2.0 extender system with flexible power includes:

    • 1x PC HOST extender module

    • 1x DEVICE extender module

    • 1x USB 2.0 cable

    • 1x Quick Start Guide

    • 1x power supply: 100-240V AC input, 24V 1A DC output

      • International power adapter with country-specific
        cord (North America, EU, UK, Australia/NZ, or Japan)
