U-BRIDGE 3

USB 3.2 Gen 1 camera and device extender

The new INOGENI U-BRIDGE 3 multi-device extender for any USB 3.0 device is the solution to interoperability challenges AV installers encounter when reliable long-distance USB camera extension is required. The U-BRIDGE 3 video camera and audio extender enables SuperSpeed USB 3.0 connections up to 100 m / 330 ft over a single CAT6A U/FTP cable.

How it works

Extend your USB 3.0 devices to any INOGENI USB input, CODEC, or videoconferencing system.

The U-BRIDGE 3 offers unmatched versatility and reliability and extends up to 3 USB 3.0 connections (2 USB-A and 1 USB-C) up to 100 meters (330 feet), far beyond the standard 3-meter cable limit. Designed specifically for USB 3.0 devices and systems, the U-BRIDGE 3 accommodates a range of peripherals, including cameras, microphones, audio devices, and more. Its backward compatibility with USB 2.0 ensures seamless integration with a variety of devices. It provides 1.8A that can be shared between USB ports to enhance functionality and convenience.

FEATURES

The U-BRIDGE 3 offers versatility and reliability for USB 3.0 extensions of up to 100 m (330 ft). U-BRIDGE 3 enables users to extend USB connections beyond the standard 3 m (10 ft) cable limit for USB 3.0 peripheral devices.

Plug & Go

INOGENI has developed an advanced testing procedure to ensure reliability and avoid interoperability issues for the USB 3.0 extension. U-BRIDGE 3 connects a USB 3.0 camera and device or an INOGENI device to any PC or videoconferencing system, such as Microsoft Teams Rooms (MTR), Zoom Rooms, CODECs, as well as Room PCs from Lenovo, Poly, Crestron, Cisco, Logitech, MAXHUB, Q-SYS and Barco.

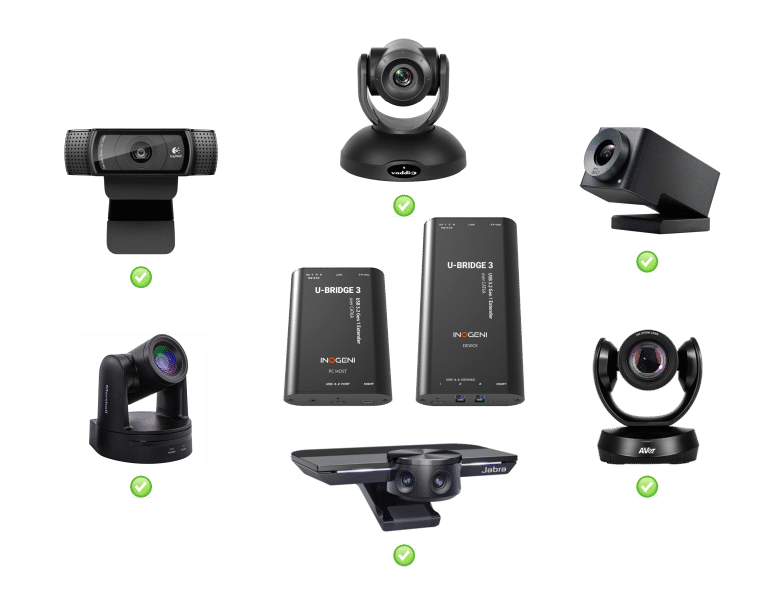

Compatible with all cameras and devices (microphones, etc.)

The U-BRIDGE 3 is fully compatible with all USB cameras (USB3/5 Gbps and is backward compatible with USB 2.0), including professional-grade equipment, such as AVer, Logitech, Jabra, ClearOne, Huddly, HuddleCamHD, PTZOptics, Lumens, Marshall, and web cameras.

Technical Specifications

  • Description

    The U-BRIDGE 3 USB 3.2 Gen 1 extender enables superspeed USB 3.0 connection of up to 100 m/330 ft. over a single CAT6A

  • Technology

    HDBaseT-USB3

    Range

    Up to 100 m (330 ft)

    Medium

    CAT6A U/FTP (Discover the INO-CAT6A cable)

    NOTE: We do not recommend using a crimp tool for attaching terminations. Instead, we highly recommend utilizing toolless terminations to ensure the preservation of signal integrity.

  • Speeds

    USB 3.2 Gen1 / USB 3.1 Gen1 / USB 3.0: up to 5 Gbps
    USB 2.0: up to 480 Mbps
    NOTE: USB-C DisplayPort Alternate Mode is not supported.

    Transfers support

    Bulk, isochronous, interrupt and control types
    Built-in hardware acceleration for isochronous and bulk transfers

  • USB connector

    1 x USB Type-C receptacle with mounting screw hole

    Link connector

    1 x RJ45

    Dimensions (W x L x H)

    7.0 cm x 9. 7 cm x 2.3 cm
    2.76″ x 3.82″ x 0.90″

    Weight

    170 g (0.37 lb)

    Mounting

    Bracket provided

    Enclosure material

    Black anodized aluminum case

    RS-232 connector

    Passthrough serial connection
    By default, I/O pin is an input.
    + 1.8V logic (maximum)

  • USB connector

    2 x USB-A receptables
    1 x USB-C receptacle with mounting screw hole

    Link connector

    1 x RJ45

    Available current

    Up to 1.8A shared between ports

    Dimensions (W x L x H)

    7.0 cm x 13.7 cm x 2.3 cm
    2.76″ x 5.39″ x 0.90″

    Weight

    210 g (0.46 lb)

    Mounting

    Bracket provided

    Enclosure material

    Black anodized aluminum case

    RS-232 connector

    Passthrough serial connection
    Bt default, I/O pin is an output.
    GND or OPEN

  • Consumed USB tiers

    Up to 2 tiers
    In USB 2.0, USB devices connected are reported to the same USB tier. In USB 3.0, the device introduces two tiers in the USB path.

  • Package dimensions

    24.5 cm x 25 cm x 7.9 cm
    9.69″ x 9.84″ x 3.11″

    Power supply

    100-240V AC Input, 24V 1.5A DC output.
    Apply at either PC HOST or DEVICE modules

    Package weight

    1200 g (2.65 lbs)

    Package contents

    1x PC Host extender module
    1x Device extender module
    1x USB 3.0 Type-C to Type-C cable
    1x USB 2.0 mini-B cable
    1x Quick Start Guide
    2x mounting brackets (power supply)
    2x mounting clips
    2x terminal blocks
    4x black wood screws
    1x power supply 100-240V AC Input, 24V 1.5A DC output
    International power adapter with country-specific cord (North America, EU, UK, Australia/NZ, or Japan)

    Operating temperature

    0°C to 50°C
    32°F to 122°F

    Storage temperature

    -20°C to 70°C
    -4°F to 158°F

    Operating humidity

    20% to 80% relative humidity, non-condensing

    Storage humidity

    10% to 90% relative humidity, non-condensing

  • UPC code

    051497429522

    Origin

    Canada

    Warranty

    5 years: Products purchased by the end-user after August 1, 2024

  • Certifications device

    FCC, CE, UKCA, RoHS, IEC62368, SoV, RCM, NOM

    Certifications - Power supply 36W

    FCC, CE, UKCA, CB, UL, TUV, EMC

    TAA-Compliant

    Yes

    • 1x PC Host extender module

    • 1x Device extender module

    • 1x USB 3.0 Type-C to Type-C cable

    • 1x USB 2.0 mini-B cable

    • 1x Quick Start Guide

    • 2x mounting brackets (power supply)

    • 2x mounting clips

    • 2x terminal blocks

    • 4x black wood screws

    • 1x power supply 100-240V AC Input, 24V 1.5A DC output
