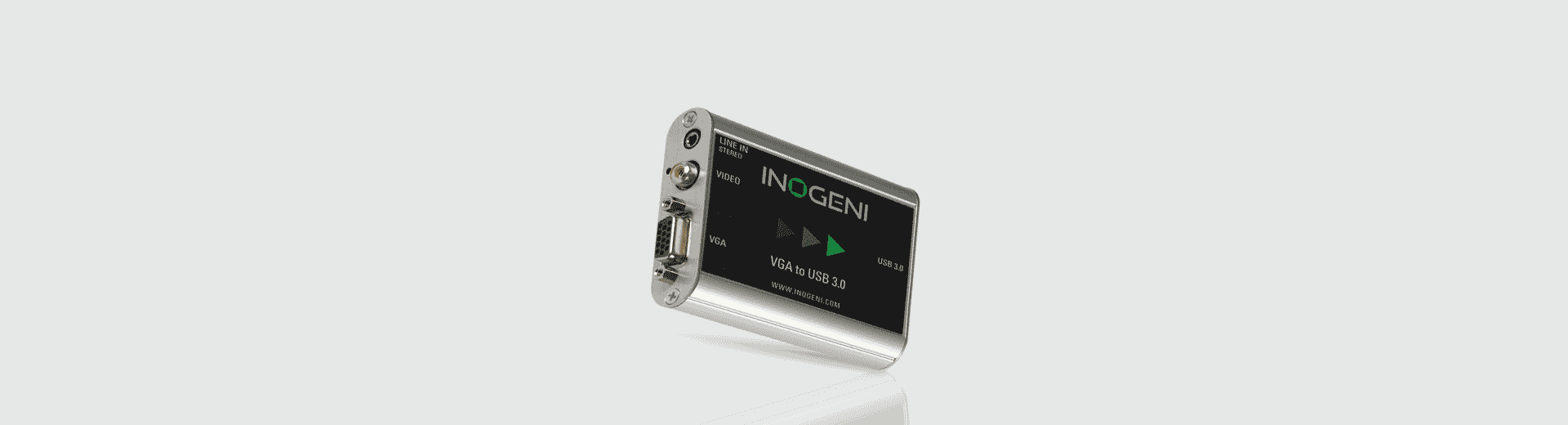

VGA2USB3

VGA/CVBS/Audio to USB 3.0 video converter

INOGENI’s VGA2USB3 video converter easily captures uncompressed video with audio from your VGA, Component (analog) or CVBS output into your PC for recording, editing, videoconferencing and streaming. The INOGENI VGA2USB3 converter accepts SD and HDTV video formats up to 1200p60 and most computer graphic formats.

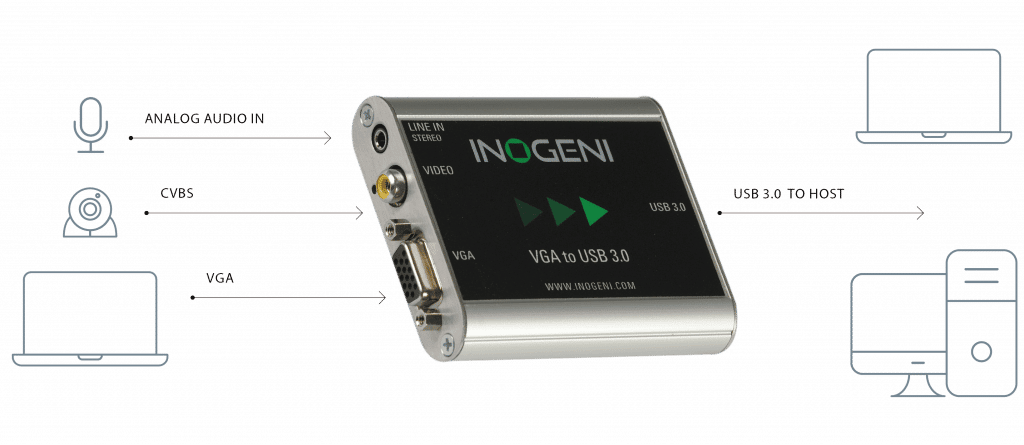

How it works

The VGA2USB3 professional video converter enables that all SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0. The line level stereo analog audio input is output as two-channel LPCM.

UVC-compliant, it will work with all DirectShow compatible software. The VGA2USB3 supports 1200p resolution up to 60 fps.

Features

Discover the features of the VGA2USB3 video converter for any type of application:

  • VGA/Component/CVBS and audio capture to USB3.0

  • Supports 1080p, 720p, 480p, 576p, 1600×1200, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480, NTSC, PAL and more at up to 60 fps

  • Digital Fluid technology: Internal frame buffers maximize frame rate with any PC

  • Hardware-based color space and sampling conversion

  • Automatic scaling and frame rate conversion

  • Customizable video processing functions

  • Image controls: Brightness, contrast, saturation and hue settings

  • Supports multiple devices on the same PC

Plug & Go

INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our professional video converters.

Technical Specifications

  • Description

    Converts VGA/Component/CVBS video source with Analog audio to USB 3.0 without compression.

  • Connector & video resolutions

    1x HD15 (VGA/Component)
    1x RCA (NTSC/PAL)
    1080p, 720p, 480p, 576p, 1600×1200, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480, NTSC, PAL and more.

    Frame rates

    Up to 60 Hz, all formats

    Color space

    RGB

    Sampling rate

    165 MHz

    Embedded audio

    Analog stereo, line level

  • Color space

    RGB

    USB - Connector & video resolutions

    1x USB 3.0 Type-B

    USB - CODECs

    YUY2 4:2:2 8-bit

    USB - Video scaler

    Automatic hardware based

    USB - Color space conversion

    Automatic hardware based

    USB - Sampling conversion

    Automatic hardware based

    USB - Frame rate conversion

    Automatic hardware based

  • Analog audio I/O

    2-channel LPCM audio 48 kHz

    Audio input connector

    1 x 3.5mm, line-level, unbalanced

  • Operating system

    NO driver installation necessary!

    Windows 7 and above (32/64-bit)
    macOS 10.10 and above
    Linux (kernel v2638)

    Minimum host requirements

    USB 3.0 port
    4GB RAM
    Intel Core i5 or equivalent
    Graphic card with dedicated memory

    Motherboard

    Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic

    Supported cameras

    Cameras (or Video Source) with VGA, component or CVBS output

    Software compatibility

    UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.

  • Dimensions (W x L x H)

    8.1 cm x 7.4 cm x 1.9 cm
    3.2” x 2.9” x 0.75”

    Power supply

    Powered by USB (5V, 680mA)

    Weight

    126 g (0,28 lb)

    Package content

    1x 3ft USB 3.0 cable (Type-A to Type-B)

    Operating temperature

    0° to 45° C
    32° to 113° F

    Storage temperature

    -40° to 105° C
    -40° to 221° F

    Relative humidity

    0% to 90% non-condensing

  • UPC code

    40232250521

    Origin

    Canada

    Warranty

    2 years

  • HDCP-compliant

    The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

    Certifications

    FCC, CE, RoHS, IEC62368, SoV, BSMI RoHS, BSMI, CB

    TAA-compliant

    Yes

    • 1x 3ft USB 3.0 cable (Type-A to Type-B)
