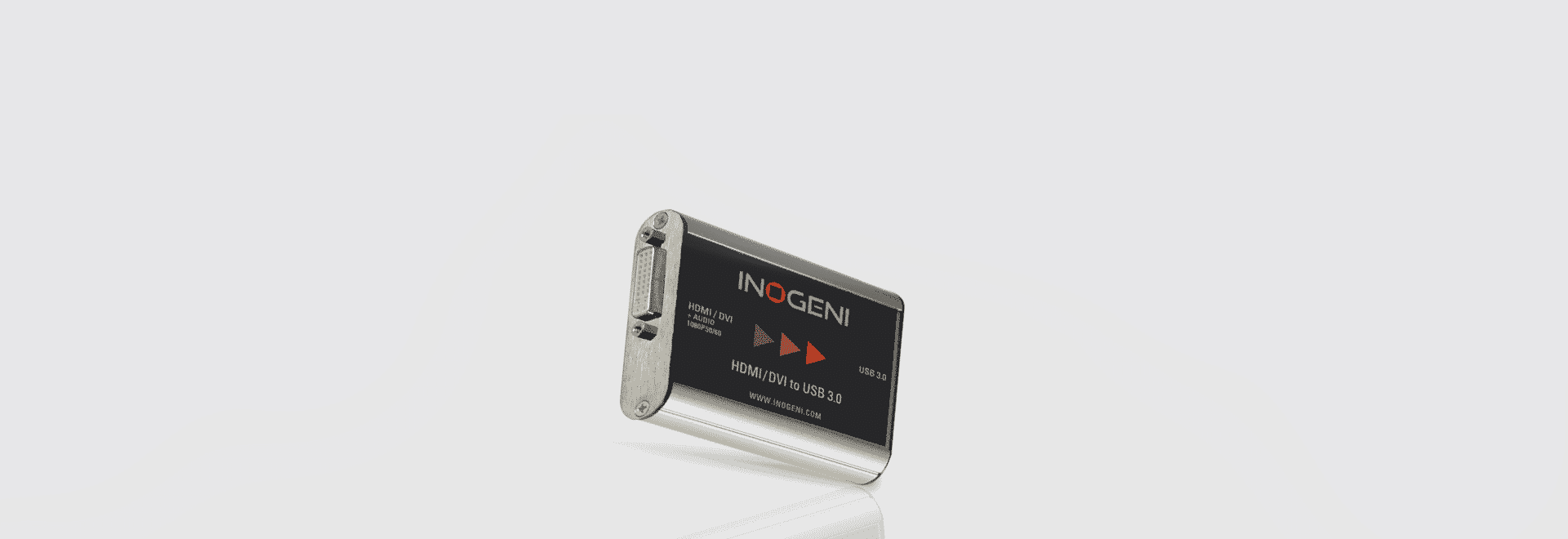

DVIUSB

HDMI/DVI to USB 3.0 capture card

INOGENI’s DVIUSB video captures card and audio from your camera’s HDMI or DVID-D output simple BYOD/BYOM setups. It is compact and powered directly from a USB 3.0 port, making it a practical and easy-to-use USB 3.0 capture solution.

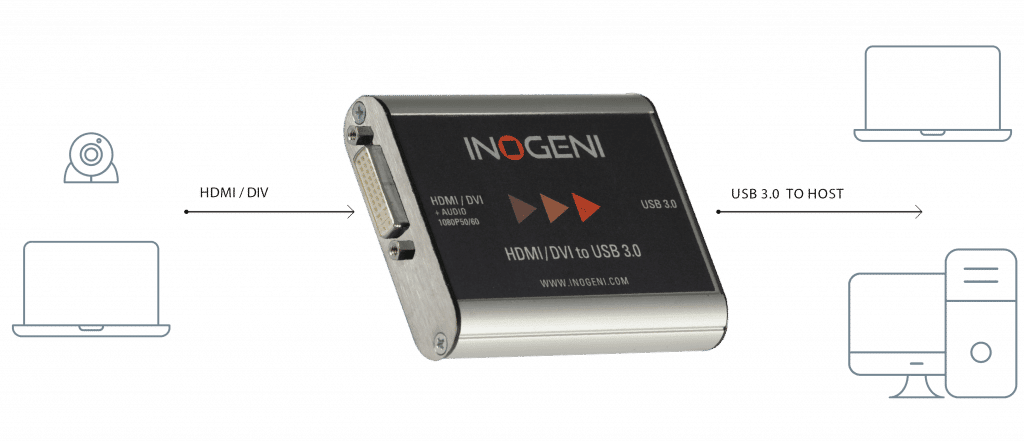

How it works

The DVIUSB professional converter features a single HDMI input and USB 3.0 output, and supports SD and HDTV video formats as well as most computer graphic formats. Compact and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 camera converter. This converter works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.

UVC-compliant, it will work with all DirectShow compatible software. The DVIUSB professional camera converter supports 1080p resolution up to 60 fps.

Features

The DVIUSB video converter offers an array of features for a smooth and seamless BYOD or BYOM experience:

  • HDMI/DVI-D capture to USB3.0 up to 1080p60

  • Supports 1080p, 1080i, 720p, 480p, and 576p video formats

  • Supports 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 graphic formats

  • All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0

  • HDMI audio support: Embedded audio in the HDMI signals is extracted and output as two-channel LPCM

  • Digital Fluid technology: Internal frame buffers maximize frame rate with any PC

  • Hardware-based color space and sampling conversion

  • Automatic scaling and frame rate conversion

  • Customizable video processing functions

  • Image controls: Brightness, contrast, saturation, and hue settings

  • Supports multiple devices on the same PC

  • Compatible with Barco ClickShare Conference

Plug & Go

INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our professional video converters.

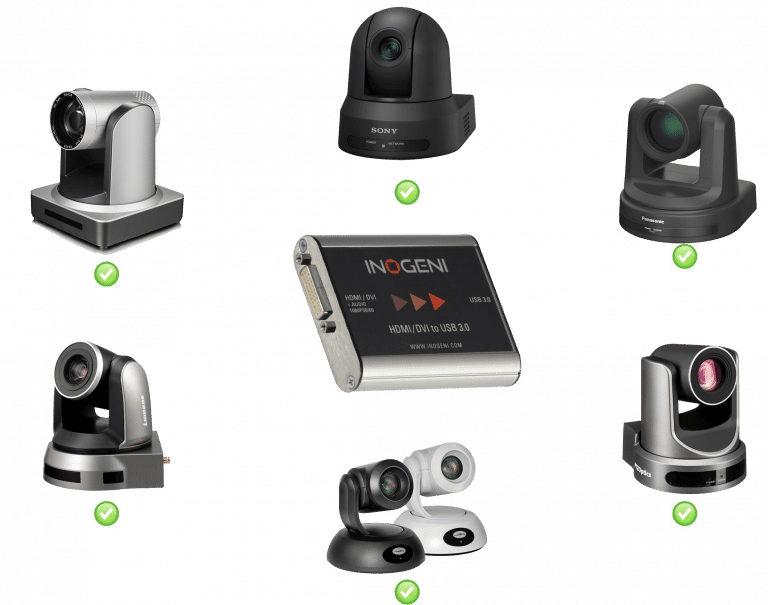

Compatible with all HDMI cameras

This professional camera converter is fully compatible with all cameras, including professional-grade equipment such as Vaddio, Aver or Marshall cameras..

Technical Specifications

  • Description

    Converts HDMI/DVI (video and audio) to USB 3.0 without compression. DVI to HDMI adapter included.

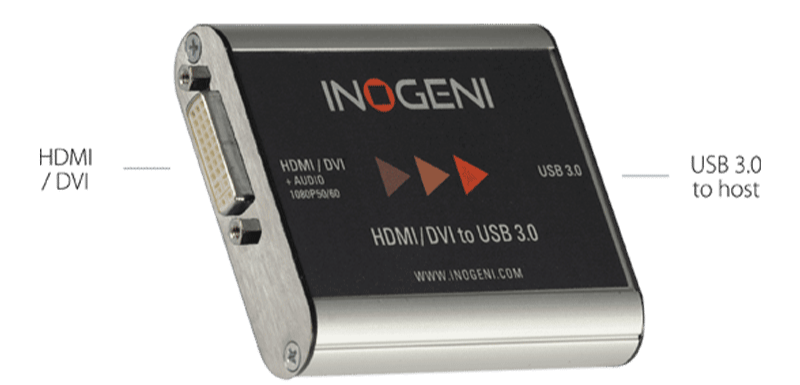

  • Connector & video resolutions

    1x DVI-D

    – OR –

    With HDMI Adapter

    1080p, 720p, 1080i, 480p, 576p, 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480

    Frame rates

    60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions.

    Color space

    RGB, YCbCr, 4:4:4, and 4:2:2

    Sampling rate

    225 MHz

    Embedded audio

    Ch 1&2 48kHz LPCM

  • Color space

    RGB, YCbCr, 4:4:4, and 4:2:2

    USB - Connector & video resolutions

    1x USB 3.0 Type-B

    USB - CODECs

    YUY2 4:2:2 8-bit

    USB - Video scaler

    Automatic hardware based

    USB - Color space conversion

    Automatic hardware based

    USB - Sampling conversion

    Automatic hardware based

    USB - Frame rate conversion

    Automatic hardware based

  • Analog audio I/O

    2-channel LPCM audio from HDMI

    Audio input connector

    CH1&2 48kHz LPCM feed from HDMI

  • Operating system

    NO driver installation necessary!

    Windows 7 and above (32/64-bit)
    macOS 10.10 and above
    Linux (kernel v2638)

    Minimum host requirements

    USB 3.0 port
    4GB RAM
    Intel Core i5 or equivalent
    Graphic card with dedicated memory

    Motherboard

    Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic

    Supported cameras

    Cameras and camcorders with an HDMI output

    Software compatibility

    UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.

  • Dimensions (W x L x H)

    8.1 cm x 7.4 cm x 1.9 cm
    3.2” x 2.9” x 0.75”

    Power supply

    Powered by USB (5V, 525mA)

    Weight

    120 g (0,26 lb)

    Package content

    1x 3ft USB 3.0 cable (Type-A to Type-B)
    1x HDMI to DVI adapter

    Operating temperature

    0° to 45° C
    32° to 113° F

    Storage temperature

    -40° to 105° C
    -40° to 221° F

    Relative humidity

    0% to 90% non-condensing

  • UPC code

    40232090387

    Origin

    Canada

    Warranty

    2 years

  • HDCP-compliant

    The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

    Certifications

    FCC, CE, RoHS, IEC62368, SoV, BSMI RoHS, BSMI, CB

    TAA-compliant

    Yes

    • 1x 3ft USB 3.0 cable (Type-A to Type-B)

    • 1x HDMI to DVI adapter
