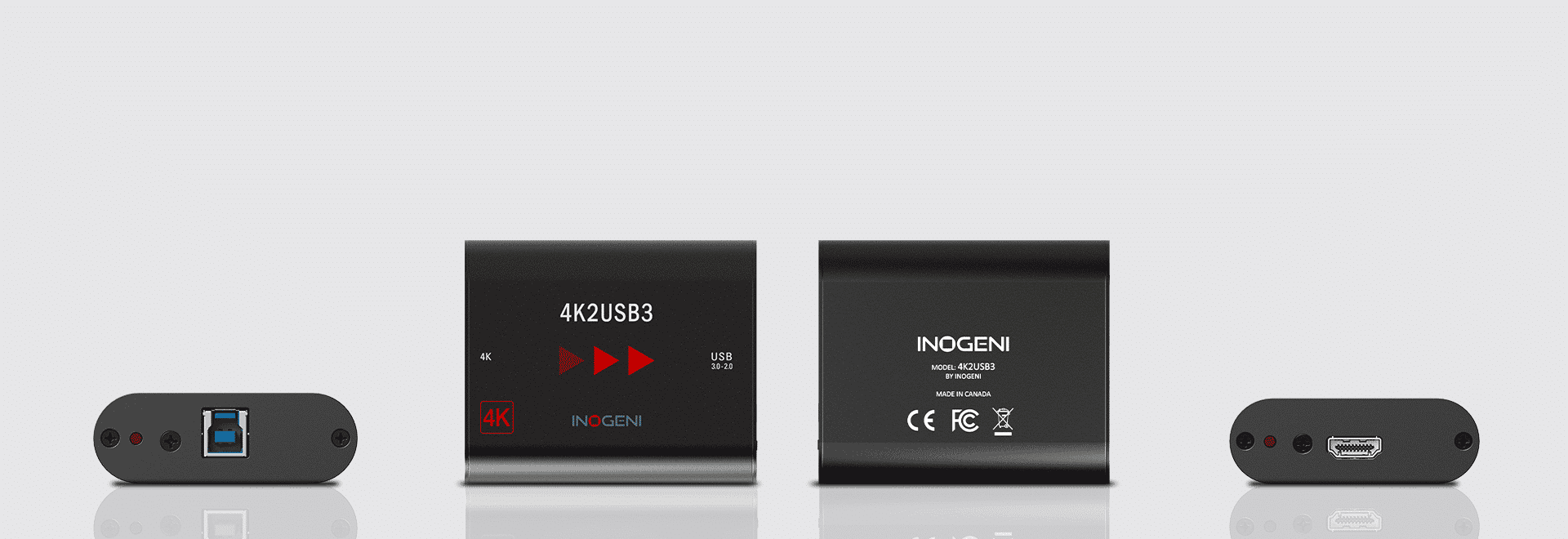

4K2USB3

HDMI 4K to USB 3.0 capture card

INOGENI’s 4K2USB3 HDMI 4K to USB 3.0 capture card (camera converter) is compact and powered directly from a USB 3.0 port, making it a practical and easy-to-use USB 3.0 capture solution.

How it works

The 4K2USB3 HDMI 4K to USB 3.0 professional camera converter works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.

Requiring no drivers and compatible with Windows, macOS and Linux laptops, the camera converter resolves all interoperability issues.

The (HD2USB3 or 4K2USB3 or 4KX-PLUS) is recognized by any computer or videoconferencing platform as a standard USB camera. This makes it incredibly flexible: connect an HDMI video camera and it works as a camera converter. Using Zoom Rooms, you can connect a laptop through HDMI to the device and it will act as a content source.

Features

The 4K2USB3 Ultra HD to USB 3.0 camera converter offers an array of features for a smooth and seamless BYOD or BYOM experience:

  • HDMI capture to USB 3.0

  • Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats

  • Supports 1920×1200, 1280×1024, 1280×960, 1024×768, 800×600, 640×480 graphic formats

  • Up to Ultra HD 4K (3840/4096×2160) at 30 fps and 1080p at 60 fps

  • HDMI audio support

  • Digital Fluid technology: Internal frame buffers maximize frame rate with any PC

  • Automatic scaling and frame rate conversion (UHD up-scaling not supported)

  • Device configuration via the  INOGENI Control App

  • Firmware upgrade available via the  INOGENI Control App

  • Compatible with Barco ClickShare Conference

  • Zoom Certified

Plug & Go

INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our Pro AV camera converters.

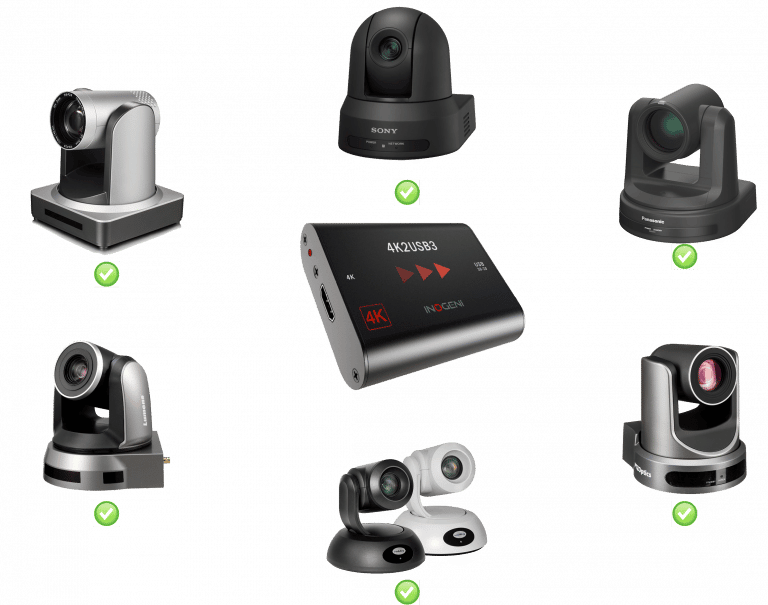

Compatible with all HDMI cameras

This professional camera converter is fully compatible with all HDMI cameras, including professional-grade equipment such as Vaddio, Aver or Marshall cameras.

Technical Specifications

  • Description

    Converts 4K Ultra HD HDMI (video and audio) to USB 3.0 without compression.

    Recognized as USB camera (UVC); supports HDMI input as video camera or content source (Zoom Rooms content camera compatible).

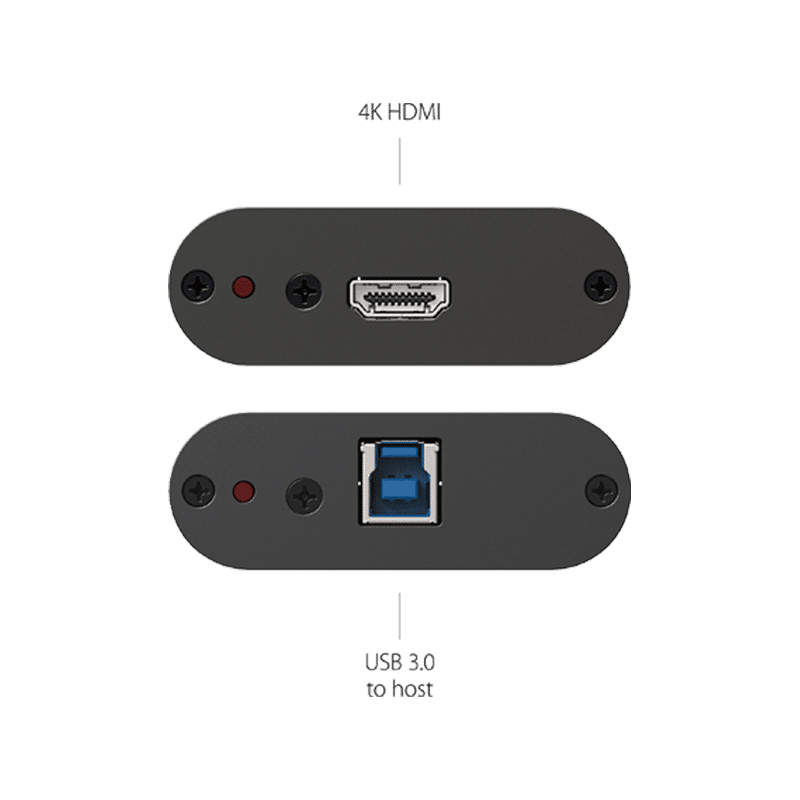

  • Connector & video resolutions

    1x HDMI 1.4a
    4K UHD (3840/4096×2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280×1024, 1280×960, 1280×800, 1024×768, 800×600, 640×480

    Frame rates

    60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.

    Color space

    RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)

    Sampling rate

    297 MHz

    Embedded audio

    Ch 1&2 48kHz LPCM

  • Color space

    RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)

    USB - Connector & video resolutions

    1x USB 3.0 Type-B

    USB - CODECs

    YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0
    MJPEG for USB 2.0*

    Notes for MJPEG for USB 2.0

    * Devices having serial numbers >= 4K2037XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.

    USB - Video scaler

    Automatic hardware based

    USB - Color space conversion

    Automatic hardware based

    USB - Sampling conversion

    Automatic hardware based

    USB - Frame rate conversion

    Automatic hardware based

  • Analog audio I/O

    2-channel LPCM audio from HDMI

    Audio input connector

    CH1&2 48kHz LPCM feed from HDMI

  • Cisco Webex Compatible

    Easily programed macros in your Webex room device.

    Cisco Webex Macros and guides –> USB Mode landing page

    Native Webex implementation available in Q2 CY2022.
    Intuitive interface on Webex Touch 10 or Webex Navigator.
    The 4KX-PLUS is compatible with Webex Devices for multiple displays.
    The 4K2USB3 is compatible with Webex Devices for one display.

    Macro and native

    • Webex Room Kit

    • Webex Room Kit Plus

    • Webex Room Kit Pro

    • Webex Room 55

    • Webex Room 70

    Macro only

    • Cisco MX700

    • Cisco MX800

    • Cisco SX80

    Operating system

    NO driver installation necessary!

    Windows 7 and above (32/64-bit)
    macOS 10.10 and above
    Linux (kernel v2638)

    Consumed USB tiers

    1 tier
    The device is a simple USB composite device which include video, audio, and control interfaces. It will consume 1 tier.

    Minimum host requirements

    USB 2.0 port – We recommend USB3.0 for uncompressed video
    4GB RAM
    Intel Core i5 or equivalent
    Graphic card with dedicated memory

    Motherboard

    Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic

    Supported cameras

    Cameras and camcorders with an HDMI output

    Software compatibility

    UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.

  • Operating system

    NO driver installation necessary!

    Windows 7 and above (32/64-bit)
    macOS 10.10 and above
    Linux (kernel v2638)

    Consumed USB tiers

    1 tier
    The device is a USB composite device connected to an embedded USB hub.
    USB tiers between USB cameras and the device are not reported to the connected host. The device acts in some way as a “tier resetter”.

    Supported cameras

    Cameras (or video Source) with an USB output

    Software compatibility

    UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.

  • Dimensions (W x L x H)

    9.7 cm x 7.0 cm x 2.3 cm
    3.82” x 2.76” x 0.90”

    Power supply

    Powered by USB (5V / 716mA)

    Weight

    120 g (0.26 lb)

    Package content

    1x 1 m/3 ft USB 3.0 cable (Type-A to Type-B)

    Operating temperature

    0° to 45° C
    32° to 113° F

    Storage temperature

    -40° to 105° C
    -40° to 221° F

    Relative humidity

    0% to 90% non-condensing

  • UPC code

    040232164873

    Origin

    Canada

    Warranty

    5 years: Products purchased by the end-user after August 1, 2024
    2 years: Products purchased by the end-user before to August 1, 2024

  • HDCP-compliant

    The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

    Certifications

    FCC, CE, RoHS, IEC62368, SoV, RCM, VCCI, CB, KC, MSIP

    TAA-compliant

    Yes

    • 1x 3ft USB 3.0 cable (Type-A to Type-B)
