SHARE2U

Mix 2 USB or HDMI cameras to USB 3.0

This easy Plug-And-Go mixer capturing 2 Picture-In-Picture or side-by-side video sources in one video flow is equally perfect to enhance the experience of your HyFlex classes and collaborative meetings.

How it works

The SHARE2U Dual USB Camera to USB 3.0 Pro AV camera mixer can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on the top of the device to control it manually.

You can use the camera mixer feature of the SHARE2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Teams®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.

With the push of a button, you can easily switch up to 14 mix setup videos.

Features

The SHARE2U Dual USB Camera to USB 3.0 professional camera mixer offers an array of features for a smooth and seamless BYOD or BYOM experience:

Plug & Go

INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our professional camera mixers.

Compatible with all USB cameras

This 4K pro AV camera mixer is fully compatible with all cameras, including professional-caliber equipment, such as Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

Technical Specifications

  • 2:1 Camera mixer

    2:1 Camera mixer
    (1x USB and 1x USB or HDMI cameras mixer into a single USB 3.0 interface)

    Simultaneous capture and mix of 2x USB 2.0 signals + Audio into one 1080p60 USB 3.0 signal.

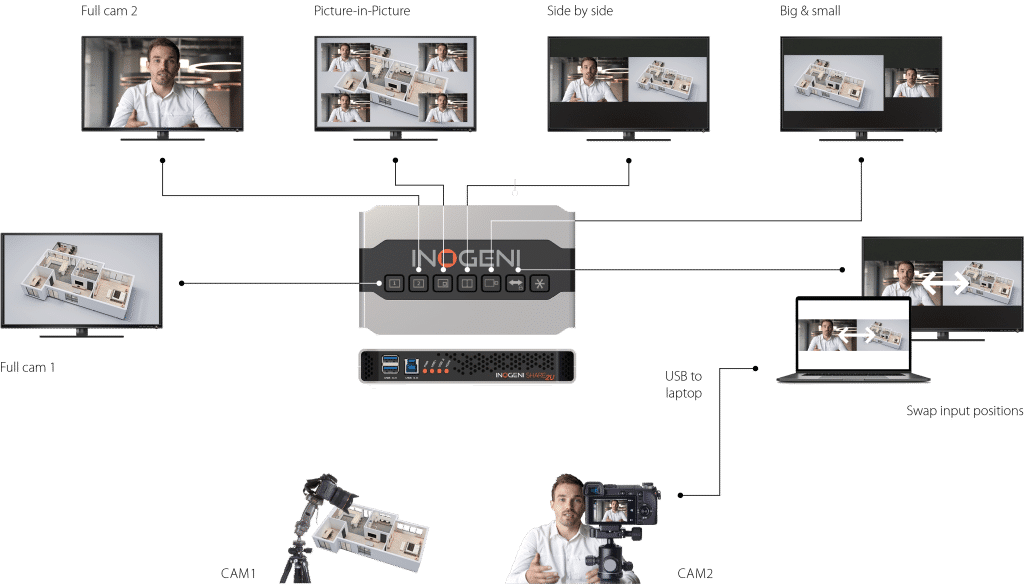

    14 mix setup videos:
    Picture-in-picture, side-by-side

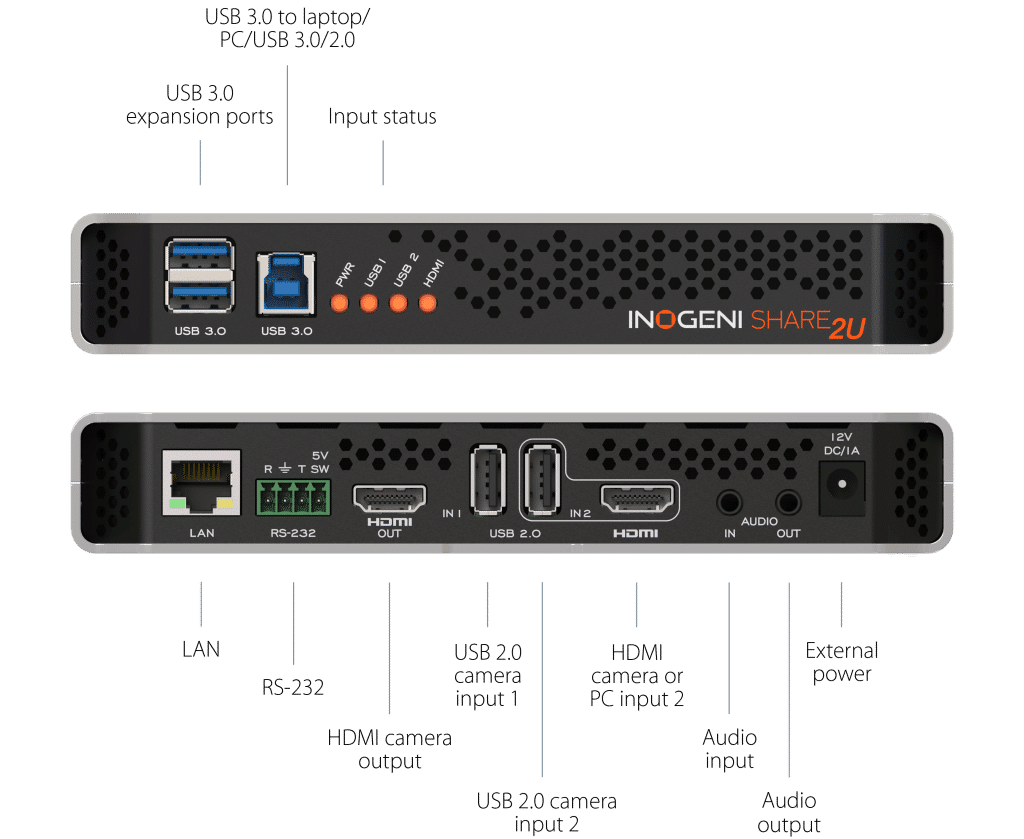

  • #2 Connector & video resolutions

    1x USB camera 2.0
    MJPEG or H264 (*)
    Depends on the camera specifications

    Compatible USB cameras

    – OR –

    1x HDMI
    1080p60, 1080p30, 720p60 and 480p60
    (1080p60 supported for S/N greater than SU2111xxx and SUM111xxx)

    1080p notes for MJPEG and H264

    *SHARE2U USB limitations and optimizations for up to 1080p

    The USB 2.0 or USB 3.0 cameras that only support uncompressed video will have reduced video resolution to optimize fluidity. Due to hardware limitations, only 1x 1920x1080p30 MJPEG and 1x 1280x720p30 MJPEG video resolutions can be captured simultaneously.

    For better performance and video fluidity, use USB 3.0 or 2.0 cameras that support MJPEG or H264 CODECs.

    You have two options to achieve 1080p on two video sources for the SHARE2U:

    Option 1

    • 1x USB camera (1080p MJPEG or H264 CODECs)

    • 1x 1080p HDMI camera

    Option 2

    • 1x USB camera (1080p MJPEG or H264 CODECs)

    • 1x USB camera (1080p or higher) connected to the SHARE2U HDMI input via the INOGENI U-CAM converter (4K USB to HDMI converter)

    Color space

    HDMI : RGB, YCbCr 4:4:4 and 4:2:2

  • HDMI

    1x HDMI up to 1080p60
    (One mixed video stream)

    USB

    1x USB 3.0 uncompressed up to 1080p60
    (One mixed video stream)

    USB - Color Space ou CODEC

    USB 3.0: YCbCr (YUY2) 4:2:2 8-bit.
    USB 2.0: MJPEG

    USB - Video scaler

    Automatic hardware-based

    USB - Color space conversion

    Automatic hardware-based

    USB - Sampling conversion

    Automatic hardware-based

    USB - Frame rate conversion

    Automatic hardware-based

  • Analog audio connections

    Unbalanced analog stereo, line level, 3.5 mm jack

    Analog audio I/O

    2-channel LPCM 48kHz audio from line input

    Digital audio I/O

    Embedded in HDMI or USB

    Audio routing

    See following link for SHARE2 and SHARE2U audio routing

  • Control options

    Integrated keypad, LAN, USB-HID, INOGENI REMOTE, RS-232

    IP interface

    10 Mbps
    DHCP (default) and static IP addressing.
    Supports the APIPA protocol when no DHCP server found.

  • USB expansion port

    Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.

  • Barco ClickShare Conference Compatible

    Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

    Operating systems

    NO driver installation necessary!

    Windows 7 and above (32/64-bit)
    macOS 10.10 and above
    Linux (kernel v2.6.38)

    Consumed USB tiers

    2 tiers
    The device is a USB composite device connected to an embedded USB hub.
    USB tiers between USB cameras and the device are not reported to the connected host. The device acts in some way as a “tier resetter.”

    Minimum host requirements

    USB 2.0 port – We recommend USB 3.0 for uncompressed video
    4GB RAM
    Intel Core i5 or equivalent
    Graphic card with dedicated memory

    Supported cameras

    Depends on the camera specifications

    Compatible USB cameras

    Software Compatibility

    UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.
    Compatible to: Teams, Zoom, Webex, Google Meet, etc.

  • Dimensions (W x L x H)

    18.5 cm x 11.0 cm x 3.0 cm
    7.28” x 4.33” x 1.18”

    Power supply

    12V (100-240 VAC 50/60Hz to 12V/1.2A DC)

    Weight

    560 g (1.23 lb)

    Package content

    1x 1 m/3.3 ft USB 3.0 cable (Type-A to Type-B)
    1x RS-232 terminal block adapter
    2x mounting brackets
    1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
    International adapters included in the box (AUS, EUR, UK and US)

    Operating temperature

    0° to 45° C
    32° to 113° F

    Storage temperature

    -40° to 105° C
    -40° to 221° F

    Relative humidity

    0% to 90% non-condensing

  • UPC code

    040232633843

    Origin

    Canada

    Warranty

    5 years: Products purchased by the end-user after August 1, 2024
    2 years: Products purchased by the end-user before to August 1, 2024

  • Download

    Certifications available on the Support Tab

    HDCP-compliant

    The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

    Certifications

    FCC, CE, RoHS, IEC62368, SoV, RCM, KC, NOM

    TAA-compliant

    Yes

    • 1x 1 m/3.3 ft USB 3.0 cable (Type-A to Type-B)

    • 1x RS-232 terminal block adapter

    • 2x mounting brackets

    • 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC

      • International adapters included in the box (AUS, EUR, UK and US)
