IP2USB – Network AV to USB Bridge
(NDI & Dante audio)

IP2USB – Network AV to USB Bridge (NDI & Dante audio)
IP-to-USB converter and multi-camera switcher for professional AV setups with AVoIP support

Next-level pro AV integration with IP-to-USB conversion

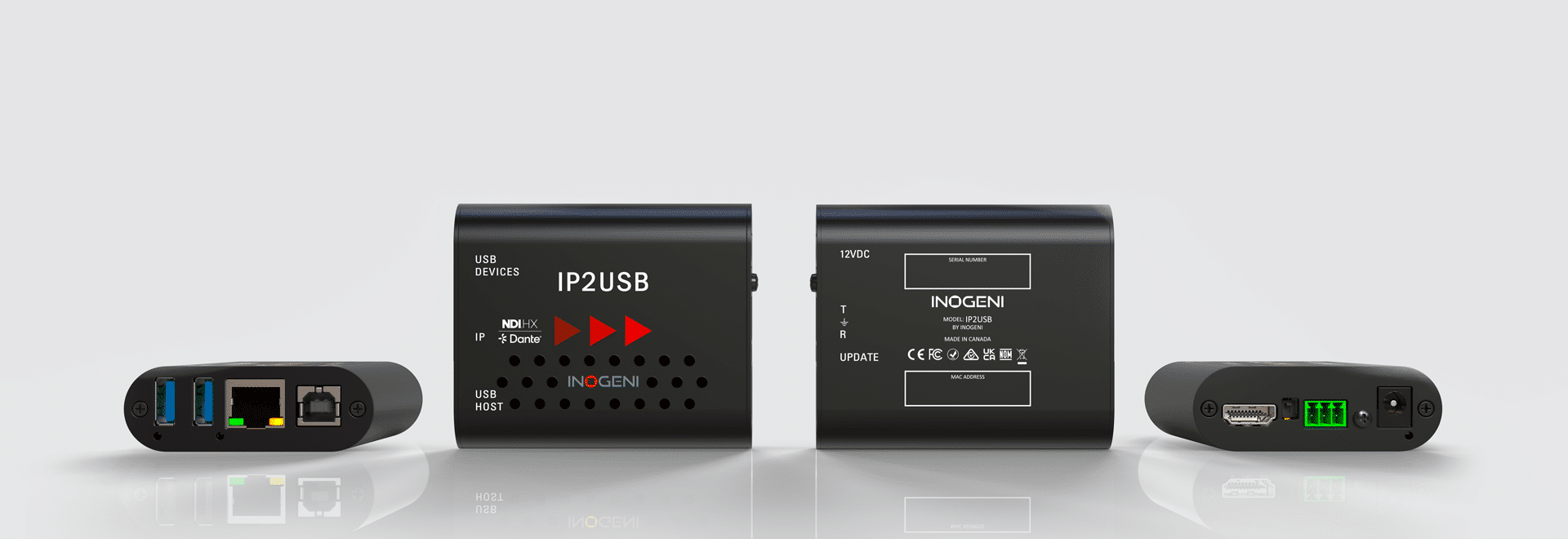

The INOGENI IP2USB is a specialized converter and switcher that enables users to connect NDI or RTSP IP-based cameras and Dante audio to USB peripherals, eliminating the need for costly USB extenders. It bridges IP cameras with your favorite web communication platform, delivering a cost-effective way to integrate cameras and audio devices.

How it works

INOGENI’s IP2USB allows you to easily connect IP-based cameras to a laptop or UC system via USB, eliminating the need for costly USB extenders. The device converts AVoIP signals, such as NDI, NDI HX and RTSP, into USB and HDMI outputs, simplifying integration with USB peripherals and video conferencing equipment. By leveraging IP-based communication, the IP2USB provides high-quality, low-latency video and audio streaming to laptops or codec systems, ensuring seamless connectivity in professional AV environments.

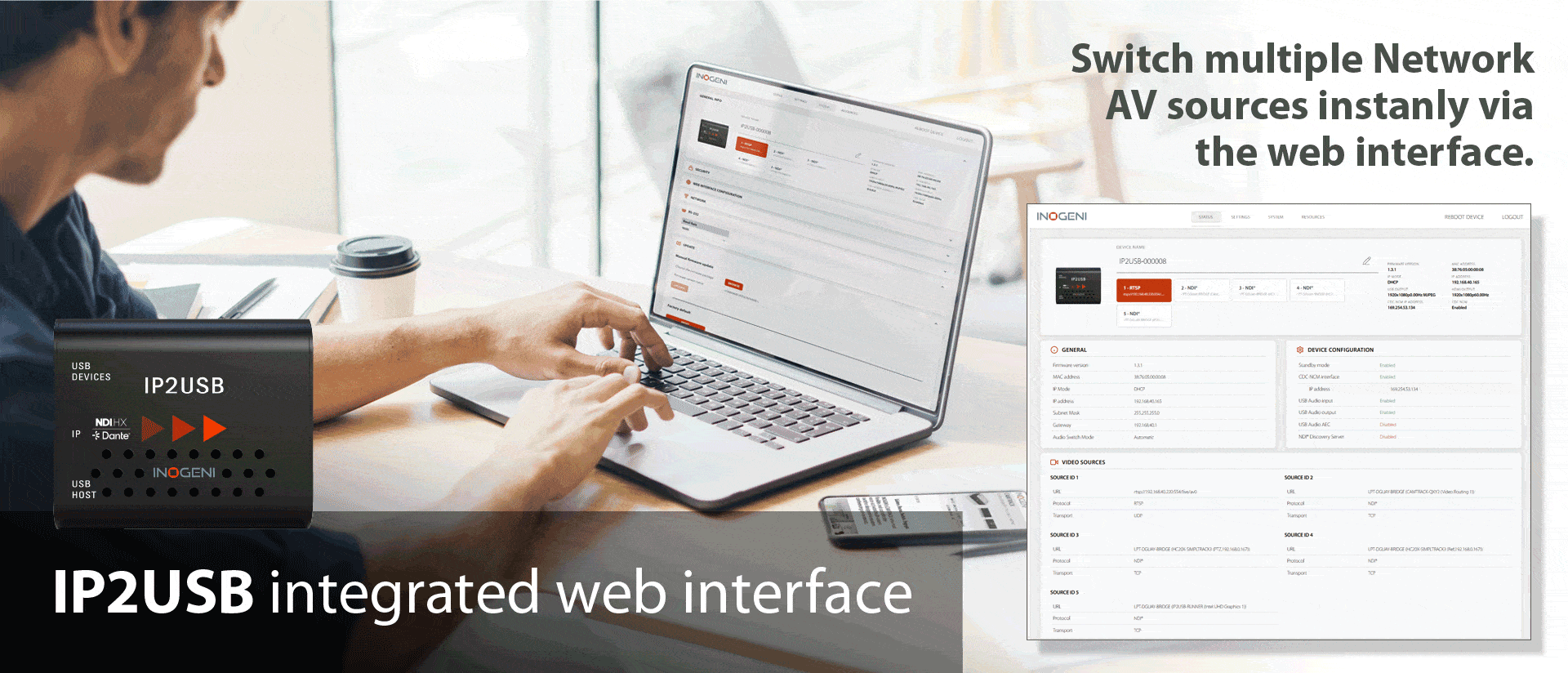

Centralized commands: IP2USB integrated web interface

The IP2USB features a powerful integrated web interface for managing multiple IP camera sources. This intuitive interface allows integrators to perform live camera switching, monitor connection status at a glance, and recall precise PTZ presets. Designed for mission-critical stability, it streamlines the full lifecycle of your AV deployment—from initial configuration and friendly source naming to simplified, one-click firmware updates.

  • Real-time diagnostics and control: Instantly toggle between IP and NDI® feeds and monitor live signal health without interrupting meeting flow.

  • Streamlined management: Customize device settings and maintain peak performance with simple remote configuration tools and full API support for deep third-party integration.

Technical Specifications

  • Description

    IP2USB is a driverless, hardware-based switcher converting NDI HX and RTSP streams into USB/HDMI. It supports multi-camera feeds with PTZ control, integrated web interface switching, and RS-232 integration for mission-critical UC&C environments.

    • Dante audio integration: Simplifies professional audio routing via the Dante Controller.

    • Pro AV ecosystem: Supports a wide range of peripherals for a complete, integrated solution.

    • Premium reliability: Backed by a 5-year warranty, made in Canada, and fully TAA-compliant.

  • Connector

    1x RJ45

    Supported standards

    NDI HQ/HX/HX2/HX3 (H.264/H.265)
    RTSP

    Video resolutions

    Up to 1920x1080p60

  • Supported USB devices

    DSPs & speakerphones

    Supported Dante devices

    DSPs, microphones and speakers
    Audio Channels: 2 in, 2 out
    Sample rate: 48kHz

  • Video scaler

    1x USB 2.0 Type-B
    UVC interface supports up to 1080p30 MJPEG
    UAC interface with audio I/O
    PTZ control supported

    Color space conversion

    Automatic hardware-based

    Sampling conversion

    Automatic hardware-based

    Frame rate conversion

    Automatic hardware-based

  • Connector

    1x HDMI

    Video resolutions

    3840x2160p24/25/30/50/60 fps
    1080p50/60 fps
    720p50/60 fps

    Color space

    YUV422 and YUV420 to RGB conversion

    Embedded audio

    The device will capture embedded audio from IP or an external USB device and will output through HDMI.

    Chroma subsampling

    YUV/RGB
    4:4:4, 4:2:2

  • IP interface

    10/100 Mbps
    Supports DHCP or static IP addressing

    RS-232 interface

    3x positions – Terminal block
    Baud rate: 9600
    Data bits: 8
    Stop bits: 1
    Parity: None
    Flow control: None

    Presets

    Able to recall camera presets from single and multiple cameras.

  • Operating systems

    NO driver installation necessary!
    Windows 10 or later
    macOS 10.10 or later
    Linux (kernel v2.6.38) or later

    Consumed USB tiers

    1 tier

    Supported cameras

    Any NDI HX and RTSP camera source that supports up to 1080p60 are supported.

    Software compatibility

    UVC-compliant
    Runs with all software compatible with DirectShow, AVFoundation, and V4L2
    Compatible with: Teams, Zoom, Webex, Google Meet, etc.

  • Dimensions (W x L x H)

    7.0 cm x 8.3 cm x 2.3 cm
    2.76” x 3.76” x 0.9”

    Power supply

    12V (100-240 VAC 50/60Hz to 12V/1.2A DC)

    Weight

    140 g (0.31 lb)

    Package contents

    1x IP2USB converter
    1x 1 m (3 ft.) USB 2.0 cable (Type-A to Type-B)
    1x RS-232 terminal block adapter
    1x Quick Start Guide
    1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
    International adapters included in the box (AUS, EUR, UK, and US)

    Operating temperature

    0° to 45° C
    32° to 113° F

    Storage temperature

    -40° to 105° C
    -40° to 221° F

    Relative humidity

    0% to 90% non-condensing

  • UPC code

    051497480424

    Origin

    Canada

    Warranty

    5 years

  • Certifications – Device

    FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP, NOM

    TAA-compliant

    Yes

    • 1x IP2USB converter

    • 1x 1 m (3 ft.) USB 2.0 cable (Type-A to Type-B)

    • 1x RS-232 terminal block adapter

    • 1x Quick Start Guide

    • 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC

      • International adapters included in the box (AUS, EUR, UK, and US)
