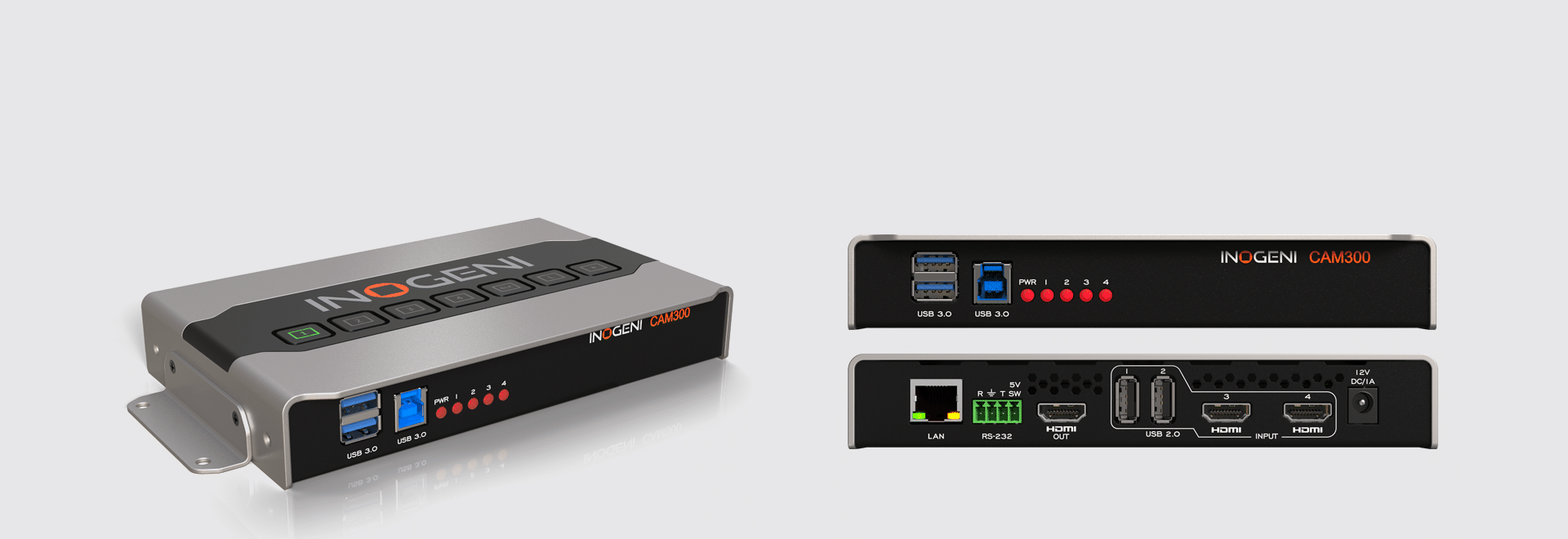

CAM300

Switch 1 of 4 USB/HDMI cameras to USB 3.0

Ideal for classrooms, with this 4 video sources selector (switcher), benefit from instant seamless switching and automatic connection to any app—without drivers.

Next-level pro AV integration with IP-to-USB conversion
The INOGENI IP2USB is a specialized converter and switcher that enables users to connect NDI or RTSP IP-based cameras and Dante audio to USB peripherals, eliminating the need for costly USB extenders. It bridges IP cameras with your favorite web communication platform, delivering a cost-effective way to integrate cameras and audio devices.

How it works

The CAM300 4-in-1 pro AV camera selector offers maximum versatility for both local and remote control. It is the best choice for standalone applications because it includes an HDMI output to monitor the selection. You can also use it with INOGENI’s SHARE2 or SHARE2U camera mixers.

Plug & Go

INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our professional camera selectors.

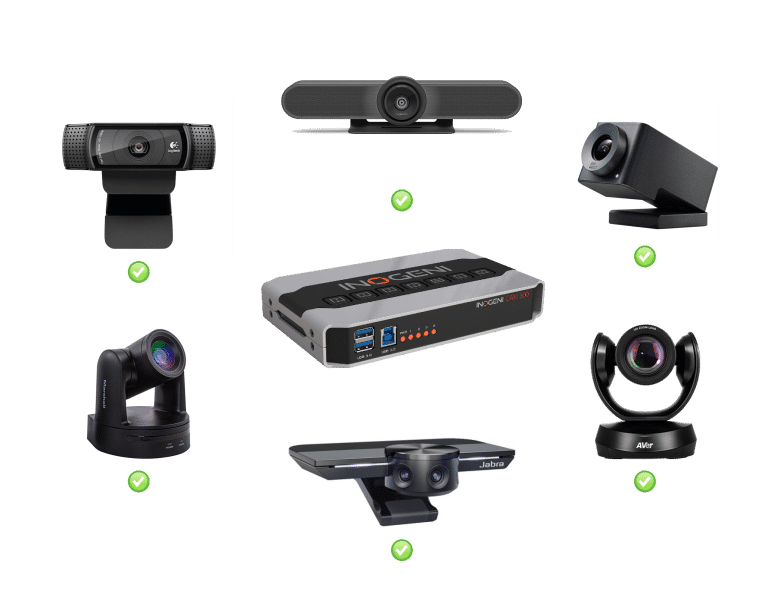

Compatible with all USB cameras

This pro AV camera switcher is fully compatible with all cameras, including professional-caliber equipment, such as Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

Technical Specifications

  • 4:1 Camera selector

    4:1 Camera selector
    (Smooth video switch)

    4 inputs: 2x HDMI & 2x USB 2.0
    2 outputs: HDMI 1080p60 & USB 3.0 output

  • #1 Connector & video resolutions

    1 x USB camera 2.0
    MJPEG or H264 (*)
    Depends on the camera specifications

    Compatible USB cameras

    #2 Connector & video resolutions

    1 x USB camera 2.0
    MJPEG or H264 (*)
    Depends on the camera specifications

    Compatible USB cameras

    #3 Connector & Video Resolutions

    1x HDMI
    1080p60, 1080p30, 720p60 and 480p60
    (1080p60 supported for S/N greater than KC2111xxx and KCM111xxx)

    #4 Connector & video resolutions

    1x HDMI
    1080p60, 1080p30, 720p60 and 480p60
    (1080p60 supported for S/N greater than KC2111xxx and KCM111xxx)

    1080p notes for MJPEG and H264

    *CAM300 USB limitations and optimizations for up to 1080p

    The USB 2.0 or USB 3.0 cameras that only support uncompressed video will have reduced video resolution to optimize fluidity. Due to hardware limitations, only 1x 1920x1080p30 MJPEG and 1x 1280x720p30 MJPEG video resolutions can be captured simultaneously.

    For better performance and video fluidity, use USB 3.0 or 2.0 cameras that support MJPEG or H264 CODECs.

    You have two options to achieve 1080p on two video sources for the CAM300:

    Option 1

    • 1x USB camera (1080p MJPEG or H264 CODECs)

    • 1x 1080p HDMI camera

    Option 2

    • 1x USB camera (1080p MJPEG or H264 CODECs)

    • 1x USB camera (1080p or higher) connected to the CAM300 HDMI input via the INOGENI U-CAM converter (4K USB to HDMI converter)

    Color space

    HDMI : RGB, YCbCr 4:4:4 and 4:2:2

  • HDMI

    1x HDMI up to 1080p60
    (One mixed video stream)

    USB

    1x USB 3.0 uncompressed up to 1080p60
    (One mixed video stream)

    USB - Color Space ou CODEC

    USB 3.0: YCbCr (YUY2) 4:2:2 8-bit.
    USB 2.0: MJPEG

    USB - Video scaler

    Automatic hardware-based

    USB - Color space conversion

    Automatic hardware-based

    USB - Sampling conversion

    Automatic hardware-based

    USB - Frame rate conversion

    Automatic hardware-based

  • Digital audio I/O

    HDMI embedded PCM
    USB camera audio
    USB 3.0 PCM stereo, audio follow input

  • Control options

    Front buttons
    RS-232
    LAN
    USB

    IP interface

    DHCP not supported.
    Static IP address configuration through our Control App

  • USB expansion port

    Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.

  • Barco ClickShare compatible

    Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

    Q-SYS Core processors compatible

    Compatible with the Q-SYS Core processors

    Operating systems

    NO driver installation necessary!

    Windows 7 and above (32/64-bit)
    macOS 10.10 and above
    Linux (kernel v2.6.38)

    Consumed USB tiers

    2 tiers
    The device is a USB composite device connected to an embedded USB hub.
    USB tiers between USB cameras and the device are not reported to the connected host. The device acts in some way as a “tier resetter.”

    Minimum host requirements

    USB 2.0 port – We recommend USB 3.0 for uncompressed video
    4GB RAM
    Intel Core i5 or equivalent
    Graphic card with dedicated memory

    Motherboard & laptop

    Compatible with all processors and chipsets. Intel, Renesas, ASMedia and Fresco Logic.

    Supported cameras

    Cameras with an HDMI, DVI or USB 2.0 output

    Software Compatibility

    UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.
    Compatible to: Teams, Zoom, Webex, Google Meet, etc.

  • Video switch speed

    Less than 0.2 second for switching between USB inputs.
    Less than 0.2 second for switching between HDMI inputs with same video resolution.
    Less than 0.2 second for switching between USB input and “active” HDMI input and vice-versa.
    Up to 2 seconds switching between HDMI inputs if video resolutions are different.

    *Active HDMI input is the last selected HDMI input.

  • Dimensions (W x L x H)

    18.5 cm x 11.0 cm x 3.0 cm
    7.28” x 4.33” x 1.18”

    Power supply

    12V (100-240 VAC 50/60Hz to 12V/1.2A DC)

    Weight

    570 g (1.26 lb)

    Package content

    1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
    1x RS-232 terminal block adapter
    1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
    International adapters included in the box (AUS, EUR, UK and US)

    Operating temperature

    0° to 45° C
    32° to 113° F

    Storage temperature

    -40° to 105° C
    -40° to 221° F

    Relative humidity

    0% to 90% non-condensing

  • UPC code

    040232633836

    Origin

    Canada

    Warranty

    5 years: Products purchased by the end-user after August 1, 2024
    2 years: Products purchased by the end-user before to August 1, 2024

  • HDCP-compliant

    The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.

    Certifications

    FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP, NOM

    TAA-compliant

    Yes

    • 1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)

    • 1x RS-232 terminal block adapter

    • 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC

      • International adapters included in the box (AUS, EUR, UK and US)
