TOGGLE

USB 3.0 devices to 2 PCs switcher

INOGENI’s TOGGLE USB 3.0 PRO AV switcher allows anyone in a conference room to access high-quality USB devices (cameras, microphones) in mere seconds.

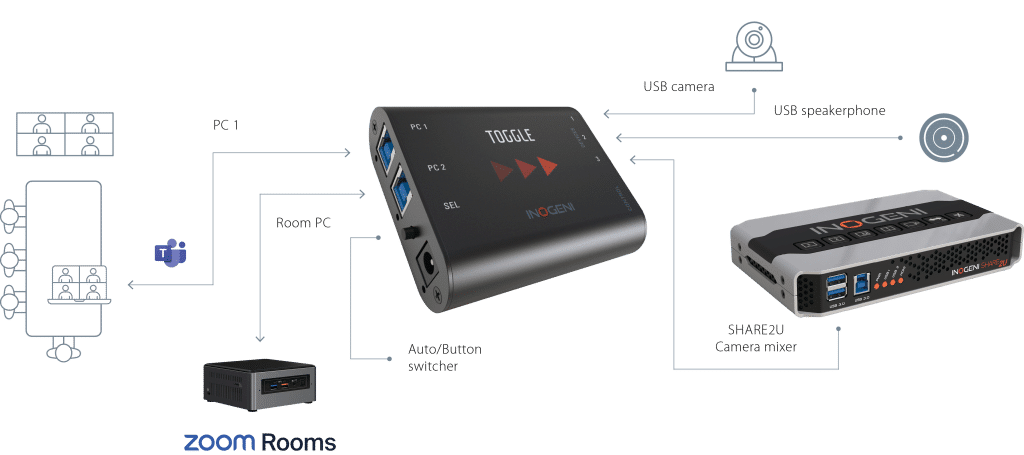

How it works

The TOGGLE USB 3.0 professional switcher can connect to three USB 3.0 devices and switch them between two hosts. It will automatically switch to a laptop when it is connected, and revert back to the conference room’s computer when disconnected. It can also be controlled remotely by RS-232 or GPI.

Features

The TOGGLE USB 3.0 switcher offers an array of features for a smooth and seamless BYOD or BYOM experience:Three USB 3.0 device portsAutomatically switch between two USB 3.0 hostsCompatible with USB 2.0Automatic, manual or remote controlRS-232 controlGPI controlRugged full-metal enclosureExternal power supply can provide power to USB 3.0 devicesTwo USB 3.0 cables includedDevice configuration via the  INOGENI Control AppFirmware upgrade available via the  INOGENI Control AppCompatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

Plug & Go with INOGENI’s TOGGLE ROOMS XT!

These videoconferencing systems (Room PCs) need TOGGLE ROOMS XT to enable BYOM and BYOD so that users can easily switch peripherals (cameras, microphones, speakerphones, display screens or videobars) to the guest laptop in the meeting room.

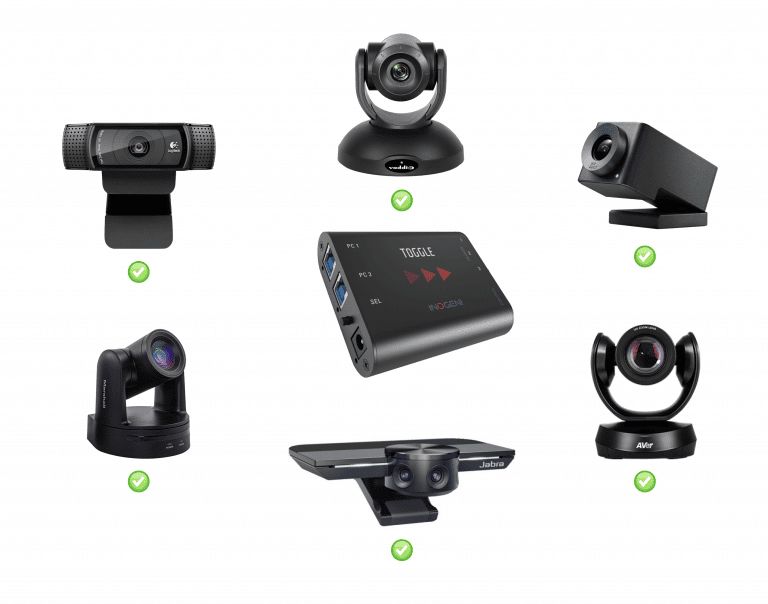

Compatible with all cameras and devices (microphones, etc.)

This 4K pro AV camera converter is fully compatible with all cameras, including professional-caliber equipment such as Vaddio, Huddly, HuddleCAMHD, Aver, Jabra, Logitech, Marshall cameras, and web cameras.

Technical Specifications

  • Description

    BYOD/BYOM Solution.
    TOGGLE USB Switcher connect to three USB 3.0 devices and can switch them between two hosts. It will switch automatically to a laptop when it is connected, and revert back to the room pc when disconnected. It can also be controlled remotely by RS-232 or GPI.

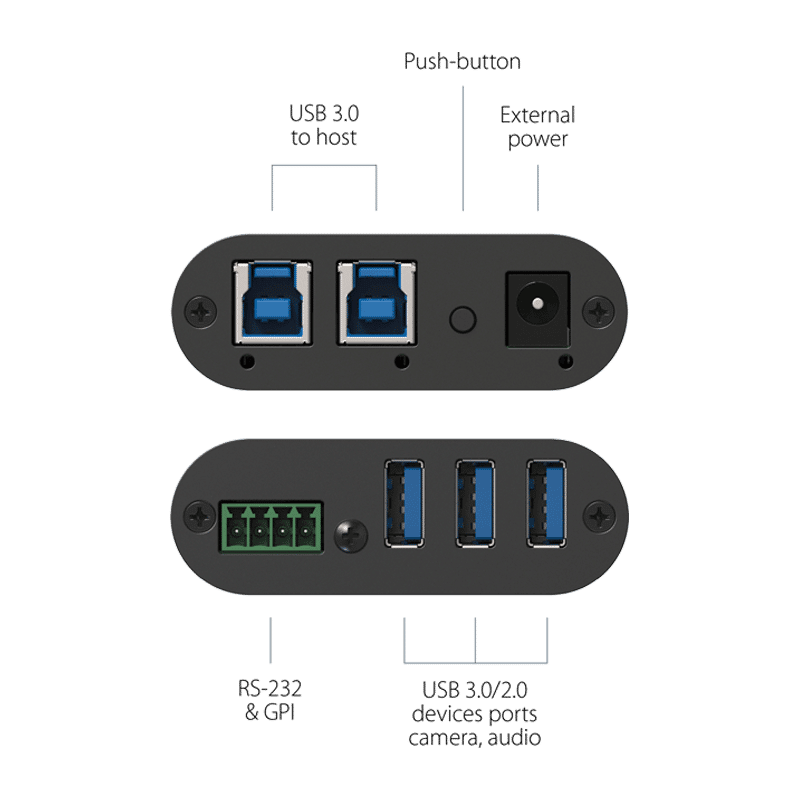

  • USB device ports Connector & Video Resolutions

    3 x Type-A USB 3.0/2.0 compatible

    USB host ports Connector & Video Resolutions

    2 x Type-B USB 3.0/2.0 compatible

  • Software

    Automatic, manual or remote control. Current configuration is saved onboard.

    Device control

    RS-232 control
    GPI control

  • Barco ClickShare compatible

    Compatible with Barco ClickShare Conference (CX-20, CX-30 & CX-50)

    Consumed USB tiers

    1 tier
    The device adds 1 tier to the USB chain because of the embedded USB hub.

    Serial interface

    Baud rate: 9600 bps For control purpose. See Serial communication protocol section for more details.

    Push-button

    Physical switch to select host.

    GPIN

    Contact-closure control. Controlled by open-drain IO (short to ground) or driven IO. Supported voltage range: 0V to +12V max. Voltage threshold is 2.3V.

    Device current limit

    1.8A shared current limit for all 3 x USB device ports. You can monitor current consumption through RS-232 and our Control App.

  • Upgrade

    Field upgradable through our  INOGENI Control App.

  • Dimensions (W x L x H)

    7.0cm x 8.3cm x 2.3cm
    2.76” x 3.27” x 0.9”

    Power supply

    12V (100-240 VAC 50/60Hz to 12V/1.2A DC)

    Weight

    120 g (0.26 lb)

    Package content

    2x 3 ft USB 3.0 cables (Type-A to Type-B)
    1x RS-232 terminal block adapter
    1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
    International adapters included in the box (AUS, EUR, UK and US)

    Operating temperature

    0° to 45° C
    32° to 113° F

    Storage temperature

    -40° to 105° C
    -40° to 221° F

    Relative humidity

    0% to 90% non-condensing

  • UPC code

    040232609022

    Origin

    Canada

    Warranty

    5 years: Products purchased by the end-user after August 1, 2024
    2 years: Products purchased by the end-user before to August 1, 2024

  • Certifications

    FCC, CE, RoHS, IEC62368, SoV, RCM, KC, NOM

    TAA-compliant

    Yes

    • 2x 3 ft USB 3.0 cables (Type-A to Type-B)

    • 1x RS-232 terminal block adapter

    • 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC

      • International adapters included in the box (AUS, EUR, UK and US)
