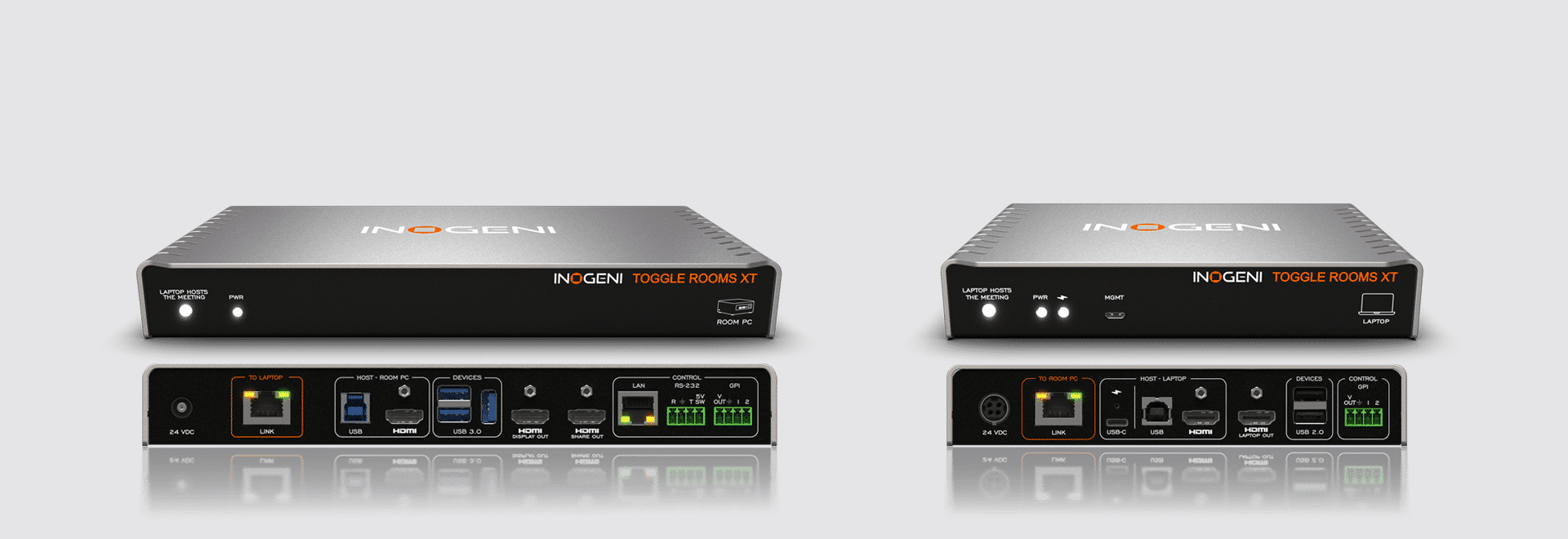

TOGGLE ROOMS XT for larger spaces

3 host switcher for USB/HDMI with an extension

One cable to own the room! Any room!

ONE USB-C CABLE (100W) TO TAKE CONTROL OF YOUR LARGE ROOM

4K BYOD/BYOM FOR LARGE ROOMS: 3 host switcher for USB/HDMI devices with extension

Switch 5 USB peripherals + 1 display between 3 hosts: Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility for various meeting scenarios via a push button or control pad.

How it works

ONE CABLE SOLUTION TO TAKE CONTROL OF A LARGE ROOM

Switch up to 5 USB peripherals + 1 display between 3 hosts: This flexibility extends across various settings, from large boardrooms to classrooms and auditoriums, making it an ideal solution for unified videoconferences.

Features

TOGGLE ROOMS XT – SWITCH from BYOD to BYOM modes with only one cable for a Room PC and laptop

Switch up to 5 USB peripherals + 1 display between 3 hosts and use one USB-C (100W) cable to connect the laptop. Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility for various meeting scenarios via a push button or control pad.

Plug & Go with INOGENI’s TOGGLE ROOMS XT!

These videoconferencing systems (Room PCs) need TOGGLE ROOMS XT to enable BYOM and BYOD so that users can easily switch peripherals (cameras, microphones, speakerphones, display screens or videobars) to the guest laptop in the meeting room.

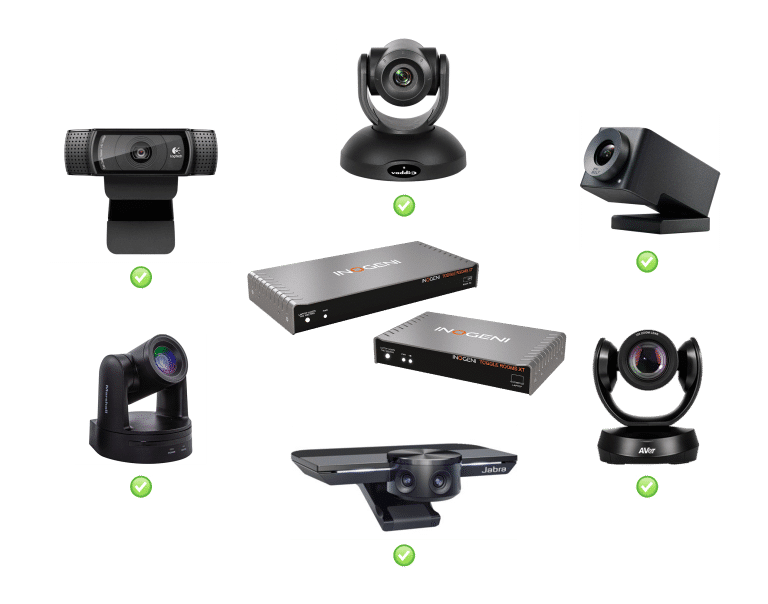

Compatible with all USB cameras, video bars and pro-AV audio devices

Unlock ultimate versatility with INOGENI’s TOGGLE ROOMS XT! It is fully compatible with all USB cameras, videobars and pro-AV audio speakerphones, microphones, or speakers, including Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

Technical Specifications


  • The TOGGLE ROOMS XT 4K60 USB/HDMI switcher effortlessly connects to five USB devices and an HDMI display. Seamlessly switching between 3 hosts, it automatically transitions to a connected laptop, providing convenient charging capabilities of up to 100W via USB-C. In addition, this versatile solution allows for remote control through RS-232 or GPI and ensures a seamless and user-friendly experience in any videoconference setting.

  • Technology

    HDBaseT 3.0

    Range

    Up to 40 m (132 ft) when using 4K60
    Up to 70 m (230 ft) when using 1080p60

    Medium

    CAT6A U/FTP (Discover the INO-CAT6A cable)

    NOTE: We do not recommend using a crimp tool for attaching terminations. Instead, we highly recommend utilizing toolless terminations to ensure the preservation of signal integrity.

  • USB-C connector (host #1)

    Supports USB-C DisplayPort Alternate Mode

    • DisplayPort up to 3840x2160p60 / 4096x2160p60

    • USB 2.0 (480 Mbps)

    • Charges up to 100W

    • USB-C cable locking option

    USB connector (host #2)

    USB 2.0 Type-B

    HDMI input connector (host #2)

    Up to 3840x2160p60 / 4096x2160p60
    Cable locking option

    HDMI output connector

    Up to 3840x2160p60 / 4096x2160p60
    Cable locking option

    USB devices connectors

    USB 2.0 Type-A ports for peripherals

    LINK connector

    HDBaseT 3.0 interface

    GPI

    4-POS terminal block connector
    2x Contact-closure control

    GPI:

    • Controlled by open-drain IO (short to ground) or driven IO

    • Supported voltage range: 0 to 12V max

    • Voltage threshold is 2.3V

    VOUT:

    • Able to power up the LED on the button of our INO-Button accessory

    • Logic-low level: 0 @ 0.5V

    • Logic-high level: 4.5 @ 5V

    Power connector

    24 VDC/160W

  • LINK connector

    HDBaseT 3.0 interface

    USB connector (host #3)

    USB 3.0 Type-B/5 Gbps

    HDMI input connector (host #3)

    Up to 3840x2160p60 / 4096x2160p60
    Cable locking option

    HDMI display output

    Up to 3840x2160p60 / 4096x2160p60
    HDMI with cable locking option

    HDMI share output

    Up to 3840x2160p60 / 4096x2160p60
    HDMI with cable locking option

    USB devices

    3x USB 3.0 Type-A ports.
    1.8A shared between downstream ports

    GPI

    4-POS terminal block connector
    2x Contact-closure control

    GPI:

    • Controlled by open-drain IO (short to ground) or driven IO

    • Supported voltage range: 0 to 12V max

    • Voltage threshold is 2.3V

    VOUT:

    • Able to power up the LED on the button of our INO-Button accessory

    • Logic-low level: 0 @ 0.5V

    • Logic-high level: 4.5 @ 5V

    IP interface

    10/100Mbps
    Supports DHCP or static addressing
    IP control available through RESTAPI and Telnet connections

    RS-232 interface

    4-pos terminal block connector
    Baud rates: 9600 [default], 19200, 38400 and 115200
    Data bits: 8
    Stop bits: 1
    Parity: None
    Flow control: None

    Power connector

    24 VDC/36W

  • HDCP compliance

    Compliant with HDCP2.3, HDCP2.2 and HDCP1.4

    HDMI compliance

    Compliant with HDMI2.0b, HDMI1.4 and DVI1.0

    Sampling frequency

    600 MHz

    Video scaling

    Crosspoint switch supports video downscaling from 4K to 1080p

    Chroma subsampling

    YUV/RGB
    4:4:4, 4:2:2

    CEC

    Ability to send CEC commands to connected HDMI display sink

  • Audio

    Audio passthrough from input to output

    Formats

    LPCM, Dolby Digital and DTS up to 192kHz

  • Control options

    Front button – For laptop selection
    RS232
    GPI
    LAN
    USB

  • Operating systems

    NO driver installation necessary!

    Windows 7 and above (32/64-bit)
    macOS 10.10 and above
    Linux (kernel v2.6.38 and above)

    Consumed USB tiers

    1 tier for local devices
    2 tiers for remote devices through HDBaseT link

  • Room PC hub - Dimensions (W x L x H)

    25.10 cm x 11.57 cm x 3.26 cm
    9.88” x 4.56” x 1.28”

    Room PC hub - Power supply

    36W (85-264VAC 50/60Hz to 24V/1.5A DC)

    Room PC hub - Weight

    760 g (1.68 lbs)

    Laptop hub - Dimensions (W x L x H)

    18.4 cm x 11.57 cm x 3.26 cm
    7.24” x 4.56” x 1.28”

    Laptop hub - Power supply

    160W (85-264VAC 50/60Hz to 24V/6.67A DC)

    Laptop hub - Weight

    580 g (1.28 lbs)

    Package contents

    1 x TOGGLE ROOMS XT – ROOM PC device
    1x TOGGLE ROOMS XT – LAPTOP device
    1 x USB-C to USB-C cable – 1.8 m/6 ft.
    1 x USB 3.0 cable (USB-A to USB-B) – 1 m/3 ft.
    3 x terminal block 4-pos
    1 x power supply 85-264VAC 50/60Hz to 24V/6.67A DC for a LAPTOP hub
    1 x power supply 85-264VAC 50/60Hz to 24V/1.5A DC for a ROOM PC hub
    2x International adapters included in the box (USA/CA or EU/UK/AU/BIS)
    Mounting brackets hardware included (see all details in What’s in the box below)

    Operating temperature

    0°C to 45°C
    32°F to 113°F

    Storage temperature

    -40°C to 105°C
    -40°F to 221°F

    Relative humidity

    0% to 90% non-condensing

    Mounting options

    Ability to mount under the table or on a wall

  • UPC code - US & CAN

    051497418717

    UPC code - International market EU/UK/AU/BIS/

    051497418724

    Origin

    Canada

    Warranty

    5 years: Products purchased by the end-user after August 1, 2024

  • Certifications device

    FCC, CE, UKCA, RoHS, IEC62368, SoV

    Certifications - Power supply 160W

    FCC, CE, UKCA, CB, CB IEC62368-1:2018, UL, TUV, Test report

    Certifications - Power supply 36W

    FCC, CE, UKCA, CB, UL, TUV, EMC

    TAA-Compliant

    Yes

    • 1 x TOGGLE ROOMS XT – ROOM PC device

    • 1 x TOGGLE ROOMS XT – LAPTOP device

    • 1 x USB-C to USB-C cable – 1.8 m /6 ft.

    • 1 x USB 3.0 cable (USB-A to USB-B) – 1 m/3 ft.

    • 3 x terminal block 4-pos

    • 4 x mounting brackets

    • 8 x M2.5 mounting screws for brackets on product

    • 8 x screws for Toggle Rooms devices for table/wall mount

    • 1 x power supply 85-264VAC 50/60Hz to 24V/6.67A DC for a LAPTOP hub

    • 1 x power supply 85-264VAC 50/60Hz to 24V/1.5A DC for a ROOM PC hub

    • 2 x international adapters included in the box (USA/CA or EU/UK/AU/BIS)

    • 1 x Quick Start Guide / Thank You card

    • 4 x PSU mounting bracket

    • 8 x screws for PSU table/wall mount

    • 8 x rubber feet
