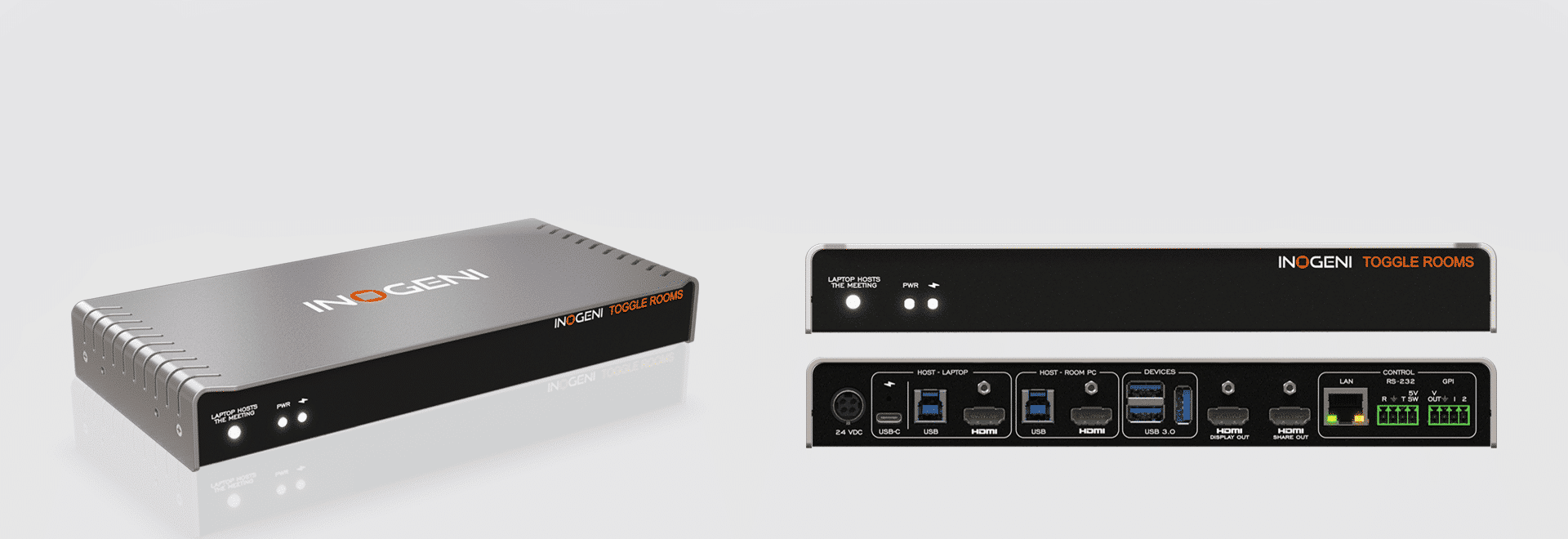

TOGGLE ROOMS

3 host switcher for USB/HDMI devices

4K BYOD/BYOM: 3 HOST SWITCHER FOR USB 3.0/HDMI DEVICES

TOGGLE ROOMS provides a 4Kp60 pro-AV and unified communication system enabling users to seamlessly switch from a Room PC to laptop host, ensuring a user-friendly and efficient meeting experience.

How it works

TOGGLE ROOMS seamlessly integrates into a Room PC environment, allowing users to connect peripherals and charge their laptops via versatile options, such as USB-C or USB-B and HDMI for older laptop models.

 This flexibility extends across various settings, from huddle rooms to large boardrooms, classrooms, and auditoriums, making it an ideal solution for unified videoconferences.

 ONE CABLE SOLUTION TO TAKE CONTROL OF THE ROOM

  • 1.8 meter USB-C 100W cable included

  • USB-C solutions tested up to 10 meters (view the list)

  • 2x HDMI output up to 4k60, one for Room Display, one for content sharing or compatible with a 5Kp30 widescreen in 21:9

Features

SWITCH BYOD/BYOM with one cable for Room PC and laptop:
Switch 3 USB peripherals + 1 display between 3 hosts: Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility via a push button or control pad for various meeting scenarios.

Plug & Go with INOGENI’s TOGGLE ROOMS XT!

These videoconferencing systems (Room PCs) need TOGGLE ROOMS XT to enable BYOM and BYOD so that users can easily switch peripherals (cameras, microphones, speakerphones, display screens or videobars) to the guest laptop in the meeting room.

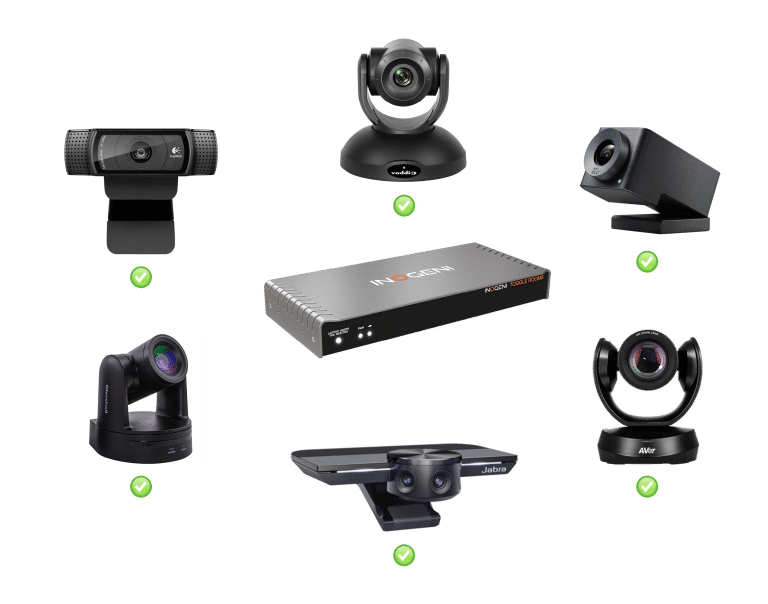

Compatible with all USB cameras, videobars and pro-AV audio devices

Unlock ultimate versatility with INOGENI’s TOGGLE ROOMS XT! It is fully compatible with all USB cameras, videobars and pro-AV audio speakerphones, microphones, or speakers, including Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

Technical Specifications

  • Description

    The TOGGLE ROOMS 4Kp60 USB/HDMI switcher effortlessly connects to three USB 3.0 devices and an HDMI display. Seamlessly switching between tree hosts, it automatically transitions to a connected laptop, providing convenient charging capabilities of up to 100W via USB-C. Additionally, this versatile solution allows for remote control through RS-232 or GPI, ensuring a seamless and user-friendly experience in any videoconference setting.

  • 1x USB-C connector

    Supports USB-C DisplayPort Alternate Mode

    • DisplayPort up to 3840x2160p60 / 4096x2160p60

    • USB 3.0 (USB 3.1 Gen 1 / 5 Gbps)

    • USB 2.0 (480 Mbps)

    • Charges up to 100W

    • USB-C cable locking option

    1x USB connector

    USB 3.0 Type-B

    1x HDMI connector

    Up to 3840x2160p60 / 4096x2160p60
    Cable locking option

    Host - Room PC

    1x USB connector

    USB 3.0 Type-B

    1x HDMI connector

    Up to 3840x2160p60 / 4096x2160p60
    Cable locking option

    HDMI display output

    Resolution

    Up to 3840x2160p60 / 4096x2160p60 /  Compatible with a 5Kp30 widescreen in 21:9

    Connector

    HDMI with cable locking option

    HDMI share output

    Resolution

    Up to 3840x2160p60 / 4096x2160p60 /  Compatible with a 5Kp30 widescreen in 21:9

    Connector

    HDMI with cable locking option

    USB devices

    Connectors

    3 x USB 3.0 Type-A ports

    Power

    1.8A shared between downstream ports

    Video - HDMI

    HDCP compliance

    Compliant with HDCP2.3, HDCP2.2 and HDCP1.4

    HDMI compliance

    Compliant with HDMI2.0b, HDMI1.4 and DVI1.0

    Sampling frequency

    600MHz

    Video scaling

    Crosspoint switch supports video downscaling from 4K to 1080p

    Chroma subsampling

    YUV/RGB
    4:4:4, 4:2:2

    CEC

    Ability to send CEC commands to connected HDMI display sink

    Audio - HDMI

    Audio

    Audio passthrough from input to output

    Formats

    LPCM, Dolby Digital and DTS up to 192kHz

    Control

    Control options

    Front button – For laptop selection
    RS232
    GPI
    LAN
    USB

    IP interface

    10/100Mbps
    Supports DHCP or static addressing
    IP control available through RESTAPI and Telnet connections

    RS-232 interface

    4-POS. terminal block connector
    Baud rates: 9600 [default], 19200, 38400 and 115200
    Data bits: 8
    Stop bits: 1
    Parity: None
    Flow control: None

    GPI interface

    4-POS. terminal block connector
    2x Contact-closure control

    GPI:
    – Controlled by open-drain IO (short to ground) or driven IO
    – Supported voltage range: 0 to 12V max
    – Voltage threshold is 2.3V

    VOUT:
    – Able to power up the led on the button of our INO-Button accessory
    – Logic-low level: 0 @ 0.5V
    – Logic-high level: 4.5 @ 5V

  • Operating system

    NO driver installation necessary!

    Windows 10 and above
    macOS 10.10 and above
    Linux (kernel v2.6.38) and above

    Compatible videoconferencing systems

    Crestron – Flex Series
    Crestron – Flex Advanced Series
    Poly – Studio Room Kit with HP Mini Conferencing PC
    MAXHUB – MAXHUB XCore Kit
    Logitech – Tap with Rally
    Logitech – Tap with MeetUp
    Logitech – Rally Bar Tap room systems
    Lenovo – ThinkSmart Hub Gen 2 Microsoft Teams Rooms
    Lenovo – ThinkSmart Core + Controller
    Lenovo – ThinkSmart Core & IP Controller Kit
    Jabra – PanaCast 50 Room System
    Airtame – Airtame Hub

    Consumed USB tiers

    1 tier
    The device adds 1 tier to the USB chain because of the embedded USB hub.

  • Dimensions (W x L x H)

    25.1 cm x 11.57 cm x 3.26 cm
    9.88” x 4.56” x 1.28”

    Power supply

    160W (85-264VAC 50/60Hz to 24V/6.67A DC)

    Weight

    790 g (1.74 lb)

    Package content

    1 x TOGGLE ROOMS
    1 x USB-C to USB-C cable – 1.8 m (6 ft.)
    1 x USB 3.0 cable (USB-A to USB-B) – 1 m (3 ft.)
    2 x terminal block 4-pos
    1 x power supply 85-264VAC 50/60Hz to 24V/6.67A DC/160W
    International adapters included in the box (USA/CA or EU/UK/AU/BIS)
    Mounting brackets hardware included (see all details in What’s in the box below)

    Operating temperature

    0° to 45° C
    32° to 113° F

    Storage temperature

    -40° to 105° C
    -40° to 221° F

    Relative humidity

    0% to 90% non-condensing

    Mounting options

    Ability to mount under the table or on a wall

  • Code UPC - US & CAN

    051497418694

    Code UPC - International market EU/UK/AU/BIS/

    051497418700

    Origin

    Canada

    Warranty

    5 years: Products purchased by the end-user after August 1, 2024
    2 years: Products purchased by the end-user before to August 1, 2024

  • Certifications device

    FCC, CE, UKCA, RoHS, IEC62368, RCM, SoV, NOM, SDIP27/2 TEMPEST B ready (Certification number: 250709GB1231LB)

    Certifications power supply

    FCC, CE, UKCA, CB, CB IEC62368, UL, TUV, Test report

    TAA - Compliant

    Yes

    • 1 x TOGGLE ROOMS

    • 1 x USB-C to USB-C cable – 6 ft.

    • 1 x USB 3.0 cable (USB-A to USB-B) – 3 ft.

    • 2 x terminal block 4-pos

    • 2 x mounting brackets

    • 4 x M2.5 mounting screws for brackets on product

    • 4 x screws for Toggle Rooms table/wall mount

    • 1 x power supply 85-264VAC 50/60Hz to 24V/6.67A DC/160W

      • International adapters included in the box (USA/CA or EU/UK/AU/BIS)

    • 1 x PSU mounting bracket

    • 4 x screws for PSU table/wall mount

    • 4 x rubber feet
