TOGGLE DOCK 2×1

2 host switcher for USB/HDMI devices

4K BYOM: 2 HOST SWITCHER FOR USB 3.0/HDMI DEVICES

TOGGLE DOCK 2x1 is a controllable 4K60 pro-AV switcher dock station that enables seamless switching between two laptop hosts. Effortlessly switch 3 USB peripherals + 1 display between the two hosts; it is the ultimate AV dock for professional installers. No Room PC required. With USB-C 100W Power Delivery, it ensures efficient power and connectivity. Versatile control options (push button, control pad, RS-232, or API) and simplified setup make it ideal for AV installers. This solution guarantees a user-friendly, efficient meeting experience with enhanced flexibility.

How it works

Enable BYOM Videoconferencing in huddle rooms with TOGGLE DOCK 2×1 – No Room PC required. Run professional-grade video meetings directly from your laptop using your preferred conferencing application—Teams, Zoom, or Google Meet—with seamless AV switching powered by TOGGLE DOCK 2×1. Designed for professional UC environments, TOGGLE DOCK 2×1 effortlessly connects peripherals while providing flexible laptop charging and connectivity via USB-C, USB-B, and HDMI, ensuring compatibility with both modern and legacy devices.

This flexibility extends across various settings, from huddle rooms to large boardrooms, classrooms, and auditoriums, making it an ideal solution for unified videoconferences.

 ONE CABLE SOLUTION TO TAKE CONTROL OF THE ROOM

  • 1.8 m (6 ft.) USB-C 100W cable included

  • USB-C solutions tested up to 15 m (50 ft.) View the list here

  • 1x HDMI output up to 4k60 for display compatible with a 5Kp30 widescreen in 21:9

Effortless professional UC Room connectivity

TOGGLE DOCK 2×1 seamlessly connects professional AV devices to your laptop:

  • USB cameras, videobar, speakerphone and HDMI display

  • Wireless conferencing systems, like Barco ClickShare or Airtame

  • The INO-BUTTON KIT enables manual switching between a wired USB-C 100W connection and wireless laptop connectivity

Features

SWITCH BYOM with one cable between two laptops – No Room PC required:

Switch 3 USB peripherals + 1 display between 2 hosts: Redefine collaboration and an easy switching of all peripherals between two laptops enables Bring Your Own Meeting (BYOM) support, offering the flexibility of a push button or control pad for various meeting scenarios. Run professional-grade video meetings directly from your laptop using your preferred videoconferencing application—Teams, Zoom, or Google Meet—with seamless AV switching powered by TOGGLE DOCK 2×1.

Seamless laptop-to-wireless collaboration with INOGENI’s TOGGLE DOCK 2x1!

Effortlessly switch between your USB-C 100W laptop connection and wireless presentation systems, like Barco ClickShare and Airtame with TOGGLE DOCK 2×1. This user-friendly switcher requires no drivers, ensuring a smooth transition between devices for a hassle-free collaboration experience. Compatible with MTR, Zoom Rooms, and pro-AV systems, it enhances your meetings with INOGENI’s reliable and robust technology.

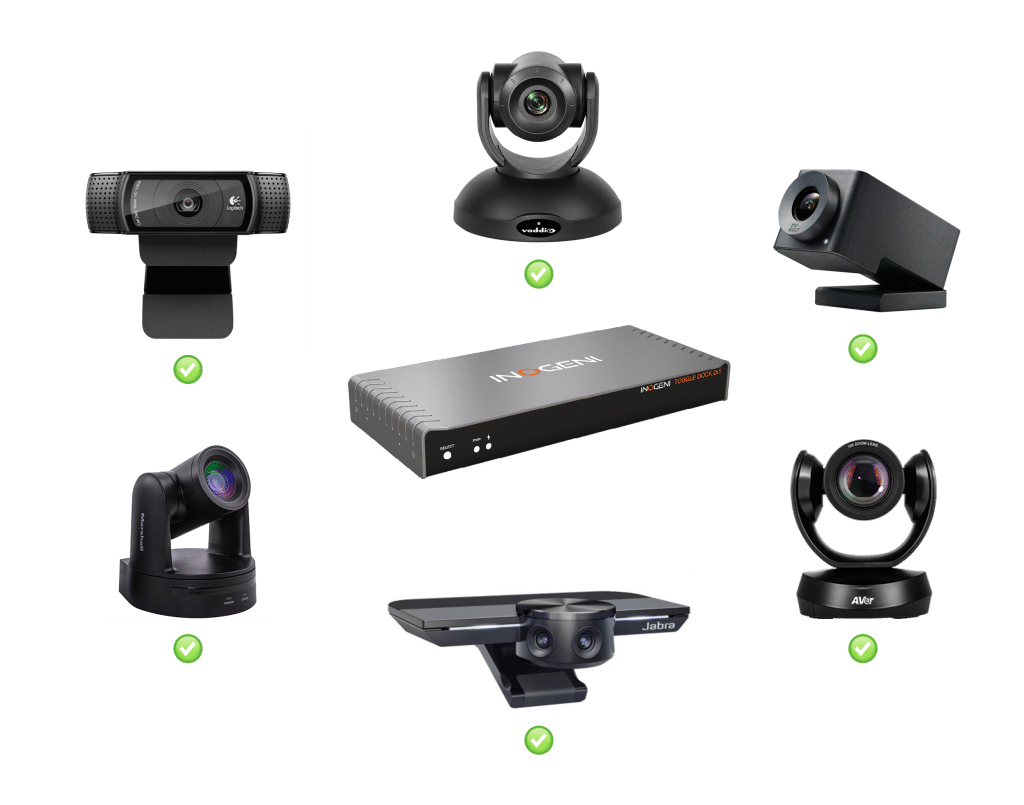

Compatible with all USB cameras, videobars and pro-AV audio devices

Unlock ultimate versatility with INOGENI’s TOGGLE DOCK 2×1! It is fully compatible with all USB cameras, videobars and pro-AV audio speakerphones, microphones, or speakers, including Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

Technical Specifications

  • Description

    TOGGLE DOCK 2×1 4K60 USB/HDMI switcher effortlessly connects to three USB 3.0 devices and an HDMI display. No Room PC required. Seamlessly switch between 2x hosts provides convenient charging capabilities of up to 100W via USB-C. Run professional-grade video meetings directly from your laptop using your preferred conferencing application—Teams, Zoom, or Google Meet—with seamless AV switching powered by TOGGLE DOCK 2×1. In addition, this versatile solution offers seamless integration with professional AV control systems via RS-232, LAN, API, and GPI, enabling remote management, automated switching, and effortless troubleshooting for a smooth and reliable video conferencing experience.

  • 1x USB-C connector

    Supports USB-C DisplayPort Alternate Mode

    • DisplayPort up to 3840x2160p60 / 4096x2160p60

    • USB 3.0 (USB 3.1 Gen 1 / 5 Gbps)

    • USB 2.0 (480 Mbps)

    • Charges up to 100W

    USB-C cable locking option

    1x USB connector

    USB 3.0 Type-B

    1x HDMI connector

    Up to 3840x2160p60 / 4096x2160p60
    Cable locking option

  • Resolution

    Up to 3840x2160p60 / 4096x2160p60 /
    Compatible with a 5Kp30 widescreen in 21:9

    Connector

    HDMI with cable locking option

  • Connectors

    3 x USB 3.0 Type-A ports

    Power

    1.8A shared between downstream ports

  • HDCP compliance

    Compliant with HDCP2.3, HDCP2.2 and HDCP1.4

    HDMI compliance

    Compliant with HDMI2.0b, HDMI1.4 and DVI1.0

    Sampling frequency

    600MHz

    Chroma subsampling

    YUV/RGB
    4:4:4, 4:2:2

    CEC

    Ability to send CEC commands to connected HDMI display sink

  • Audio

    Audio passthrough from input to output

    Formats

    LPCM, Dolby Digital and DTS up to 192kHz

  • Control options

    Front button – For laptop selection
    RS232
    GPI
    LAN
    USB
    Or via INO-BUTTON KIT

    IP interface

    10/100Mbps
    Supports DHCP or static addressing
    IP control available through RESTAPI and Telnet connections

    RS-232 interface

    4-POS. terminal block connector
    Baud rates: 9600 [default], 19200, 38400 and 115200
    Data bits: 8
    Stop bits: 1
    Parity: None
    Flow control: None

    GPI interface

    4-POS. terminal block connector
    2x Contact-closure control

    GPI:
    – Controlled by open-drain IO (short to ground) or driven IO
    – Supported voltage range: 0 to 12V max
    – Voltage threshold is 2.3V

    VOUT:
    – Able to power up the led on the button of our INO-Button accessory
    – Logic-low level: 0 @ 0.5V
    – Logic-high level: 4.5 @ 5V

  • Operating system

    NO driver installation necessary!
    Windows 10 and above
    macOS 10.10 and above
    Linux (kernel v2.6.38) and above

    Consumed USB tiers

    1 tier
    The device adds 1 tier to the USB chain because of the embedded USB hub.

  • Dimensions (W x L x H)

    25.1 cm x 11.57 cm x 3.26 cm
    9.88″ x 4.56″ x 1.28″

    Power supply

    160W (85-264VAC 50/60Hz to 24V/6.67A DC)

    Weight

    790 g (1.74 lb)

    Package contents

    1 x TOGGLE DOCK 2×1
    1 x USB-C to USB-C cable – 1.8 m (6 ft.)
    1 x USB 3.0 cable (USB-A to USB-B) – 1 m (3 ft.)
    2 x terminal block 4-pos
    2 x mounting brackets
    4 x M2.5 mounting screws for brackets on the product
    4 x screws for TOGGLE DOCK 2×1 table/wall mount
    1 x PSU mounting bracket
    4 x screws for the PSU table/wall mount
    4 x rubber feet
    1 x power supply 85-264VAC 50/60Hz to 24V/6.67A DC / 160W
    International adapters included in the box (USA/CA or EU/UK/AU/BIS)

    Operating temperature

    0°C to 45°C
    32°F to 113°F

    Storage temperature

    -40°C to 105°C
    -40°F to 221°F

    Relative humidity

    0% to 90% relative humidity, non-condensing

    Mounting options

    Ability to mount under the table or on a wall

  • UPC code

    051497468064

    Origin

    Canada

    Warranty

    5 years

  • Certifications device

    FCC, CE, UKCA, RoHS, IEC62368, RCM, SoV, NOM

    Certifications power supply

    FCC, CE, UKCA, CB, CB IEC62368, UL, TUV, Test report

    TAA - Compliant

    Yes

    • 1 x TOGGLE DOCK 2×1

    • 1 x USB-C to USB-C cable – 1.8 m (6 ft.)

    • 1 x USB 3.0 cable (USB-A to USB-B) – 1 m (3 ft.)

    • 2 x terminal block 4-pos

    • 2 x mounting brackets

    • 4 x M2.5 mounting screws for brackets on the product

    • 4 x screws for TOGGLE DOCK 2×1 table/wall mount

    • 1 x PSU mounting bracket

    • 4 x screws for the PSU table/wall mount

    • 4 x rubber feet

    • 1 x power supply 85-264VAC 50/60Hz to 24V/6.67A DC / 160W

      • International adapters included in the box (USA/CA or EU/UK/AU/BIS)
