• Integrated temperature, humidity or air pressure sensor

• 2 ports for addtional plug-and-play sensors

• Fast and easy mounting, also on DIN rail

• NTP function can be activated

• Robust and compact sheet steel housing

• Power supply also via Power-over-Ethernet (PoE) possible

Security

• 2 connectors for combined plug-&-play sensors (temperature, humidity and air pressure) to prevent frequently occurring physical hazards such as overheating and increased humidity or air pressure

• Additional power supply via Power-over-Ethernet (PoE) possible

• Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)

• Encrypted e-mails (SSL, STARTTLS)

• Access protection by IP access control

• Support for the 802.1X standard for port authentication in the network

• Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH

• Password protected access

Operation

• Firmware update via Ethernet during operation (no restart required)

• Simple and flexible configuration via web browser, Windows or Linux program

• Dynamic assignment of an IP address via DHCP or manual assignment of static IP address

• Rapid commissioning thanks to free and reliable drivers from our technology partners

• Mounting on DIN rail thanks to mounting clip

• Robust sheet steel housing with versatile mounting options

Technical Details

• Powdered sheet steel case, LxWxH: 100 x 34 x 90 mm (incl. brackets, excl. sensor pipe)

• Plastic sensor pipe, Length: 94 mm, Diameter: 15 mm

• Weight: approx. 300 g

• Operating temperature: 0 – 50 °C

• Operating temperature sensor pipe: -20 – 80 °C

• Storage temperature: -20 – 70 °C

• Relative humidity: 0-95% (non-condensing)

• Temperature measuring range: -20 °C to +80 °C at ±2 °C (maximum) and ±1 °C (typical)

• Humidity measuring range: 0-100% at ±3% (typical) and 10-80% at ±2% (typical)

• Air pressure measuring range 300-1100 hPa: -20 °C to 0 °C at ±1.7 hPa (typical) and 0 °C to +65 °C at ±1 hPa (typical)

Electrical Connections

• 1 connector for external power supply (industrial clamp, 2-fold)

• 2 sensor connectors RJ45 for optional sensors for temperature, humidity, air pressure sensor

• 1 Ethernet connector RJ45 (10/100 Mbit/s)

• Power supply also via Power-over-Ethernet (7213-11, 7213-12, 7213-1

Order code

• 7213-2: Temperature and humidity sensor

• 7213-11: Temperature sensor, PoE

• 7213-12: Temperature and humidity sensor, PoE

• 7213-13: Temperature, humidity and air pressure sensor, PoE

Scope of delivery

• Expert Sensor Box 7213-2, 7213-11, 7213-12, 7213-13

• Power supply 7903 (only with 7213-2)

• Quick start guide

• Support for: HTTP/HTTPS (REST API) JSON, SNMP, Modbus TCP, Telnet, SSH und MQTT 3.1.1

• Overview of GUDE’s comprehensive API (Application Programming Interface)

• HTTP/HTTPS, E-Mail (SSL, SSH, STARTTLS)

• Configuration and control via Telnet and SSH

• NTP function can be activated

• Supports Syslog

• Supports RADIUS authentication

• 802.1X port authentication

• SNMPv1, v2c, v3 (Get/Traps)

• TLS 1.1, 1.2, 1.3

• IPv6-ready

Manual

Product Brief

Block Diagram

Quick start guide

3D model

CE Declaration

EU Data Act Notice

PSTI Decleration

Firmware ESB 7213

Windows System Tool

Linux System Tool

Locations

• Industrial environments: Production facilities, solar installations, manufacturing rooms, warehouses or test labs

• IT installations: distributed infrastructures, equipment rooms, KVM, network closets, server racks, 19″ cabinets, data centers or server rooms

• AV environments: Huddle rooms, conference rooms, theaters, cinemas, marine environments, smart home, meeting rooms, courtrooms, lecture halls in universities, LED walls or digital signage systems (DooH)

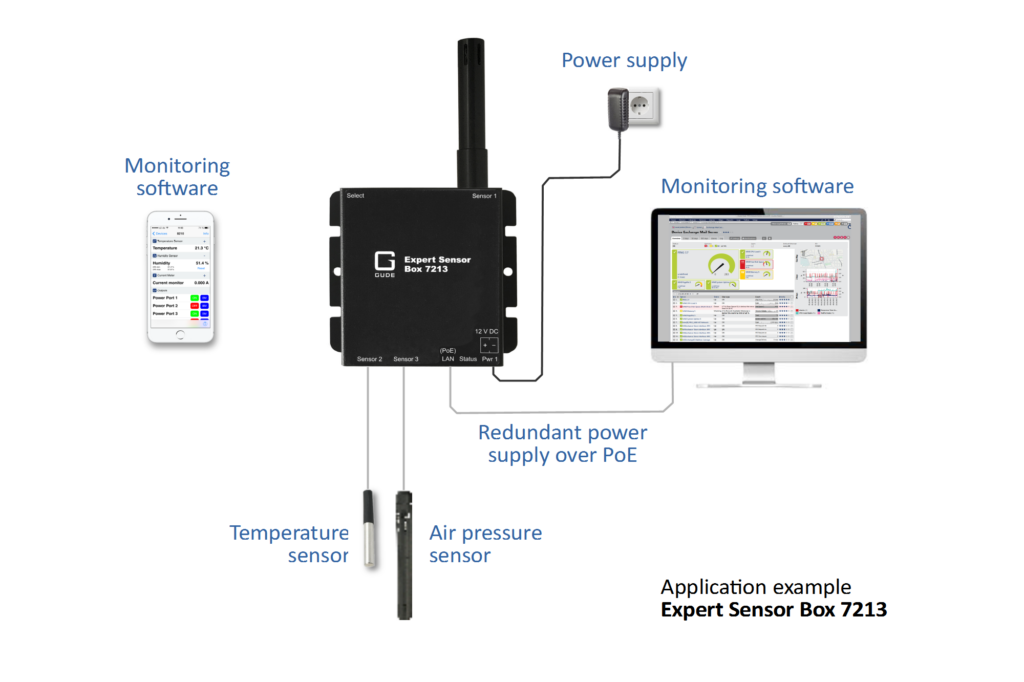

Application

• Real-time environment monitoring via plug-and-play sensors

• Monitoring of operation-critical technical rooms via query of addtional plug-and-play sensors

• Remote control over IT devices in server room, data center and IT rack

• Network monitoring via integration with monitoring software (PRTG, Icinga, Nagios, Power IQ, Tivoli)
