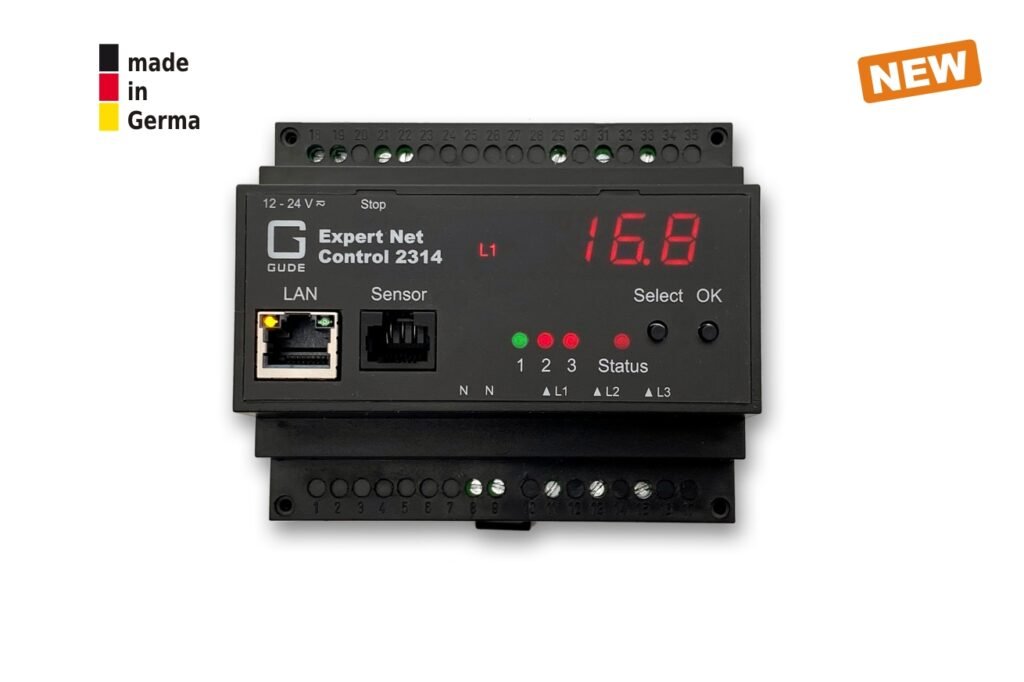

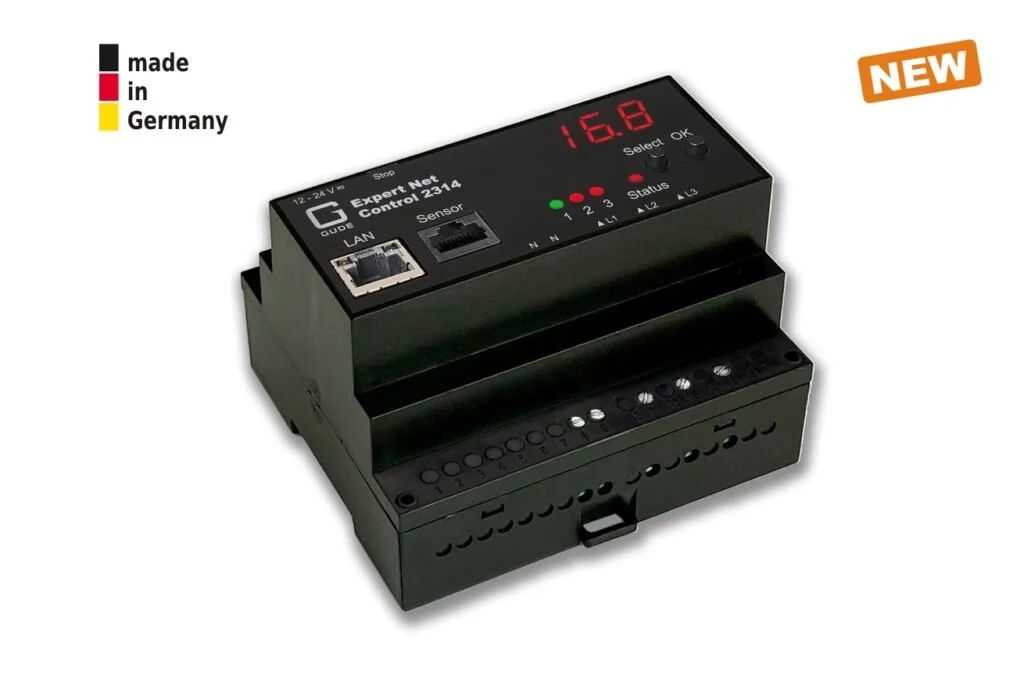

IP relay control with 3 channels and energy metering

Expert Net Control 2314-1 for more security and surveillance in IT infrastructure

Top Features:

  • Demonstrably fewer and shorter downtimes of your critical IT and AV infrastructure

  • More control through remote access to switchable relay outputs

  • Detect AV and IT problems at an early stage: Proactive power and environment monitoring

  • Increased energy efficiency (Green IT and AV): Reduction of electricity costs and CO2 emissions

    • Remote switching of 3 relay outputs

    • Detailed energy measurement per output

    • Connector for plug-and-play sensors

    • Fast and easy mounting on DIN rail

    • NTP function can be activated

    • Special High-Inrush relays prevent sticking of relay contacts during witch on pulse peaks

    Switching functions

    • 3 switchable, potential-free relay outputs with 16 A switching capacity

    • Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH, MQTT and serial interface

    • Automatic switching of relay outputs depending on sensor thresholds or inputs possible

    • Programmable switch-on/switch-off sequence

    • Simultaneous switching on of several switching outputs is prevented by automatic latency of 1 second

    • Output states are indicated by two-color LEDs on the front panel

    • Relays have high contact reliability even with very small loads

    • Self-healing function thanks to 3-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary

    Metering functions

    • Power consumption metering (kwH) with 2 energy counters per output: one counter counts consistently, the other counter is resettable

    • Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)

    Security

    • 1 connector for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure

    • Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)

    • Encrypted e-mails (SSL, STARTTLS)

    • Access protection by IP access control

    • Support for the 802.1X standard for port authentication in the network

    • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH

    • Password protected access

    Operation

    • Easy-to-read LED display for displaying total current, IP address and sensor values

    • Firmware update via Ethernet during operation (no restart required)

    • Simple and flexible configuration via web browser, Windows or Linux program

    • Dynamic assignment of an IP address via DHCP or manual assignment of static IP address

    • Rapid commissioning thanks to free and reliable drivers from our technology partners

  • Technical Details

    • Measurement of key electrical parameters: current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)

    • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH

    • LxWxH: 10.5 x 9 x 7 cm

    • Weight: approx.  280 g

    • Operating temperature: 0-50 °C

    • Storage temperature: -20 – 70 °C

    • Relative humidity: 0 – 95 % (non condensing)

    Electrical Connections

    • Terminal clamps for power supply with 12-24 V AC/DC voltage

    • 3 switchable outputs (industrial clamp, 3 fold)

    • 1 sensor connector (RJ45) for plug-and-play sensor

    • 1 Ethernet connector RJ45 (10/100 Mbit/s)

    Order code

    • 2314-1

    Scope of delivery

    • Expert Net Control 2314-1

    • Quick start guide

    • Support for: HTTP/HTTPS (REST API) JSON, SNMP, Modbus TCP, Telnet, SSH und MQTT 3.1.1

    • Overview of GUDE’s comprehensive API (Application Programming Interface)

    • HTTP/HTTPS, E-Mail (SSL, SSH, STARTTLS)

    • Configuration and control via Telnet and SSH

    • NTP function can be activated

    • Supports Syslog

    • Supports RADIUS authentication

    • 802.1X port authentication

    • SNMPv1, v2c, v3 (Get/Traps)

    • TLS 1.1, 1.2, 1.3

    • IPv6-ready

  • Manual

    Product Brief

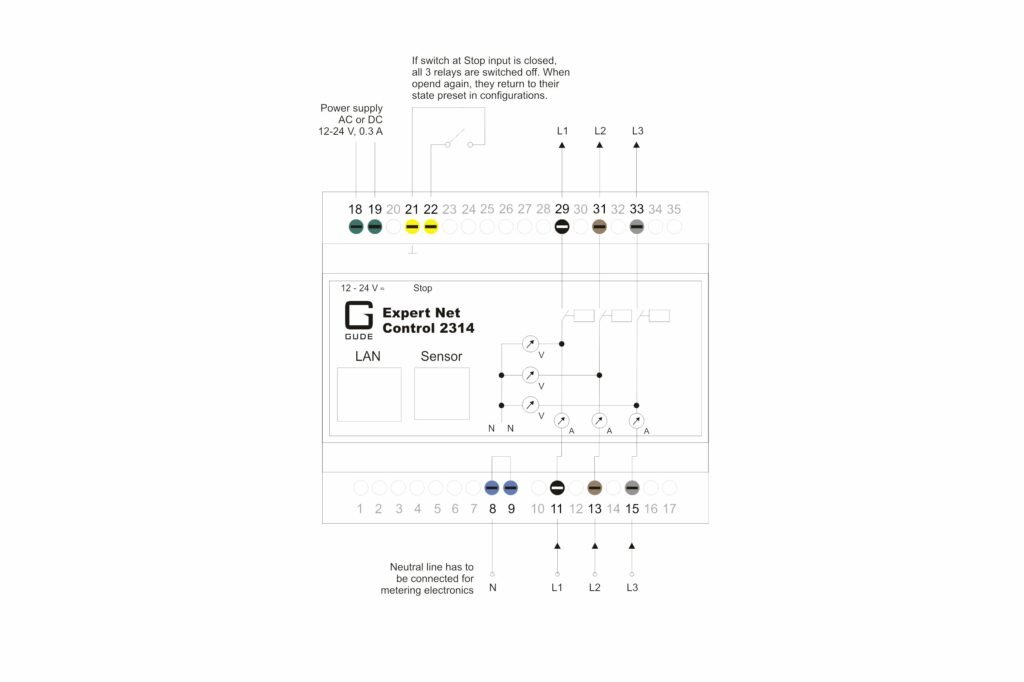

    Block Diagram

    Quick start guide

    CE Declaration

    PSTI Declaration

    Firmware ENC 2314-1

    Windows System Tool

    Linux System Tool

  • Locations

    • Industrial environments: Production facilities, solar installations, manufacturing rooms, warehouses or test labs

    • IT installations: distributed infrastructures, equipment rooms, KVM, network closets, server racks, 19″ cabinets, data centers or server rooms

    • AV environments: Huddle rooms, conference rooms, theaters, cinemas, marine environments, smart home, meeting rooms, courtrooms, lecture halls in universities, LED walls or digital signage systems (DooH)

    Application

    • Real-time environment monitoring via plug-and-play sensors

    • Monitoring of operation-critical technical rooms via query of addtional plug-and-play sensors

    • Remote control over IT devices in server room, data center and IT rack

    • Network monitoring via integration with monitoring software (PRTG, Icinga, Nagios, Power IQ, Tivoli)
