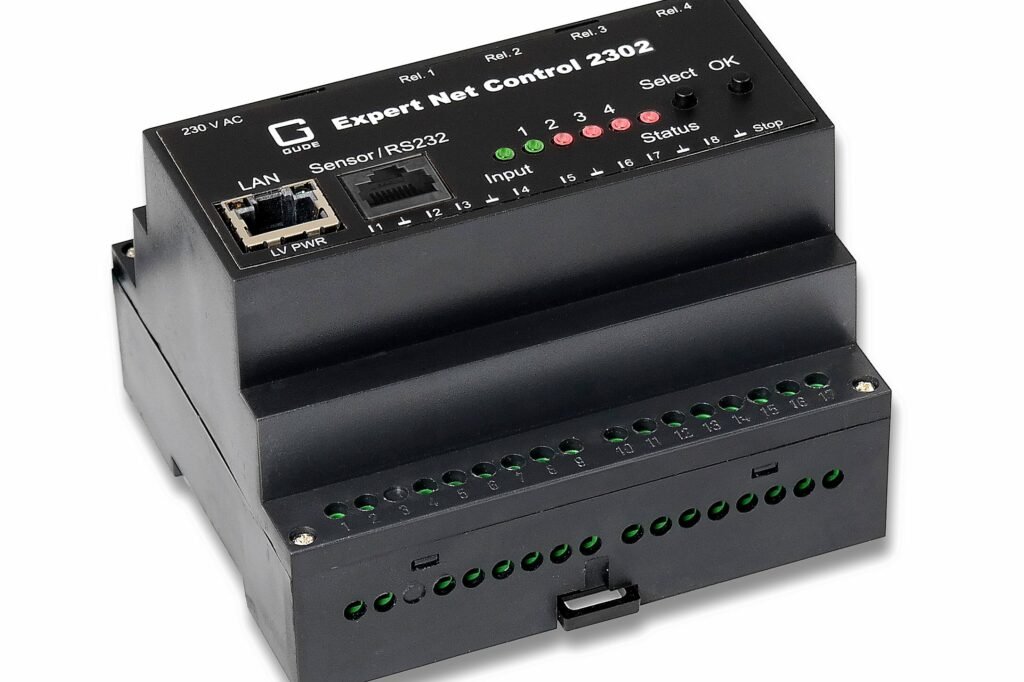

• Remote switching of 4 relay outputs

• 8 signal inputs allow query of NO/NC devices

• Connector for plug-and-play sensors

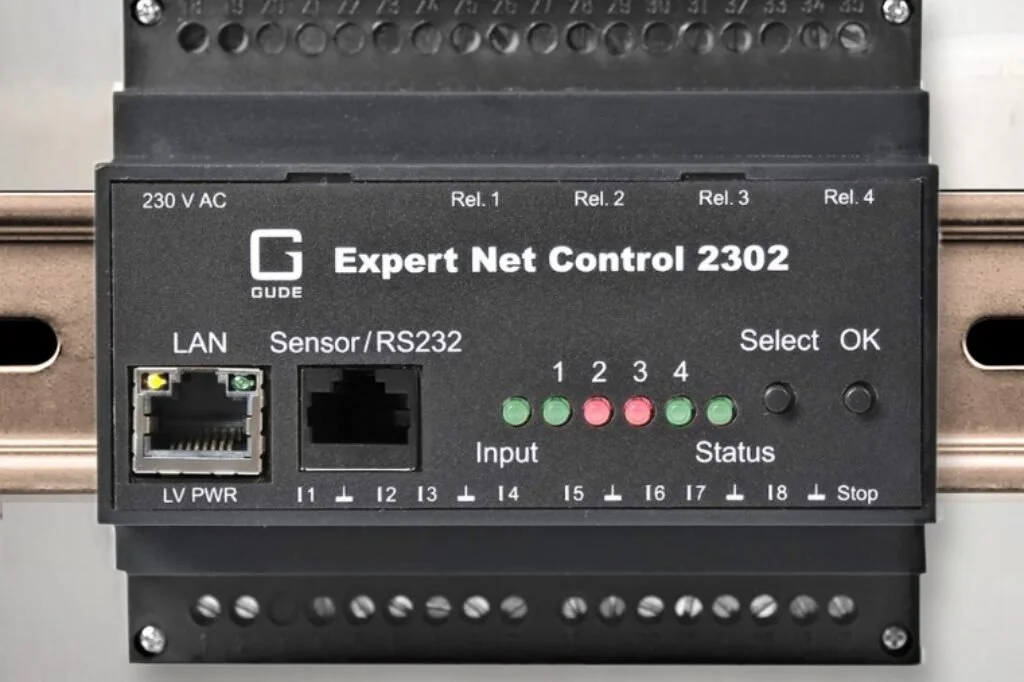

• Fast and easy mounting on DIN rail

• NTP function can be activated

• Special High-Inrush relays prevent sticking of relay contacts during witch on pulse peaks

Switching functions

• 4 switchable, potential-free relay outputs with changeover connector (NO and NC) and 16 A switching capacity

• Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH und MQTT/MQTTS 3.1.1and serial interface

• Switching voltage 230 V AC, 16 A / 24 V DC, 10 A

• Automatic switching of relay outputs depending on sensor thresholds or inputs possible

• Simultaneous switching of several switching outputs is prevented by automatic latency of 1 second

• Relays have high contact reliability even with very small loads

• States of inputs/outputs are indicated by two-color LEDs on the front panel

• Self-healing function thanks to 4-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary

Security

• 1 connector for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure

• Robust High-Inrush relays ensure safe switching operations

• Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT/MQTTS, SSH, Telnet)

• Encrypted e-mails (SSL, STARTTLS)

• Access protection by IP access control

• Support for the 802.1X standard for port authentication in the network

• Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH

• Password protected access

Operation

• Easy-to-read LED display for displaying total current, IP address and sensor values

• Firmware update via Ethernet during operation (no restart required)

• Simple and flexible configuration via web browser, Windows or Linux program

• Dynamic assignment of an IP address via DHCP or manual assignment of static IP address

• Rapid commissioning thanks to free and reliable drivers from our technology partners

Technical Details

• Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH

• LxWxH: 10.5 x 9 x 7 cm

• Weight: approx.  300 g

• Operating temperature: 0-50 °C

• Storage temperature: -20 – 70 °C

• Relative humidity: 0 – 95 % (non condensing)

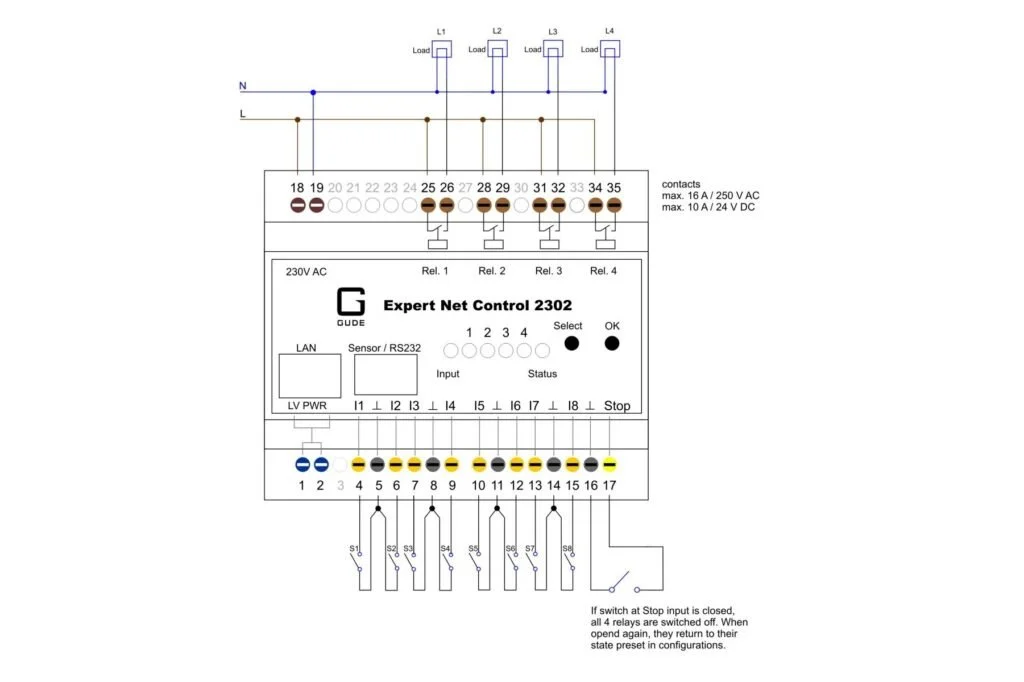

Electrical Connections

• Industrial clamp for power supply with 230 V AC or 24 V DC

• 4 switchable outputs (industrial clamp, 3-fold)

• 8 passive signal inputs (industrial clamp, 2-fold)

• 1 sensor connector (RJ45) for plug-and-play sensors or serial interface (RS232)

• 1 Ethernet connector RJ45 (10/100 Mbit/s)

Order code

• 2302-1

Scope of delivery

• Expert Net Control 2302-1

• Quick start guide

• Support for: HTTP/HTTPS (REST API) JSON, SNMP, Modbus TCP, Telnet, SSH und MQTT 3.1.1

• Overview of GUDE’s comprehensive API (Application Programming Interface)

• HTTP/HTTPS, E-Mail (SSL, SSH, STARTTLS)

• Configuration and control via Telnet and SSH

• NTP function can be activated

• Supports Syslog

• Supports RADIUS authentication

• 802.1X port authentication

• SNMPv1, v2c, v3 (Get/Traps)

• TLS 1.1, 1.2, 1.3

• IPv6-ready

Manual

Product Brief

Block Diagram

Quick start guide

3D model

CE Declaration

EU Data Act Notice

PSTI Declaration

Firmware ENC 2302

Windows Config Tool

Linux System Tool

Locations

• Industrial environments: Production facilities, solar installations, manufacturing rooms, warehouses or test labs

• IT installations: distributed infrastructures, equipment rooms, KVM, network closets, server racks, 19″ cabinets, data centers or server rooms

• AV environments: Huddle rooms, conference rooms, theaters, cinemas, marine environments, smart home, meeting rooms, courtrooms, lecture halls in universities, LED walls or digital signage systems (DooH)

Application

• Real-time environment monitoring via plug-and-play sensors

• Monitoring of operation-critical technical rooms via query of addtional plug-and-play sensors

• Remote control over IT devices in server room, data center and IT rack

• Network monitoring via integration with monitoring software (PRTG, Icinga, Nagios, Power IQ, Tivoli)
