• Redundant power supply in 19″ racks

• Industry standard switching times

• Power supply of up to 11 loads

• Precise current metering of up to 9 units and fault current

• 2 sensor connectors for plug-and-play sensors

• Simple and quick mounting due to integrated mounting brackets

• NTP function can be activated

Switching functions

• Automatic switchover to alternative power supply in the event of failure of the primary power supply (A or B)

• Switchover also in case of phase shift

• On return of primary power supply (A or B), automatic switchback possible

• Industry standard switching times without interrupting the operation

• Typical switching times: 7-10 ms

Metering functions

• Power consumption metering (kwH) with 2 energy counters: one counter counts consistently, the other counter is resettable

• Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)

• 2 energy counters per output: one counter counts consistently, the other counter is resettable

• Metering of differential current type A (mA)

• 2 connectors for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure

Security

• Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)

• Encrypted e-mails (SSL, STARTTLS)

• Access protection by IP access control

• Support for the 802.1X standard for port authentication in the network

• Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH

• Password protected access

• 4 power outlets procted by thermofuse in case of overvoltages

• Beeper for audible alarm when sensor limits are exceeded/deceeded

Operation

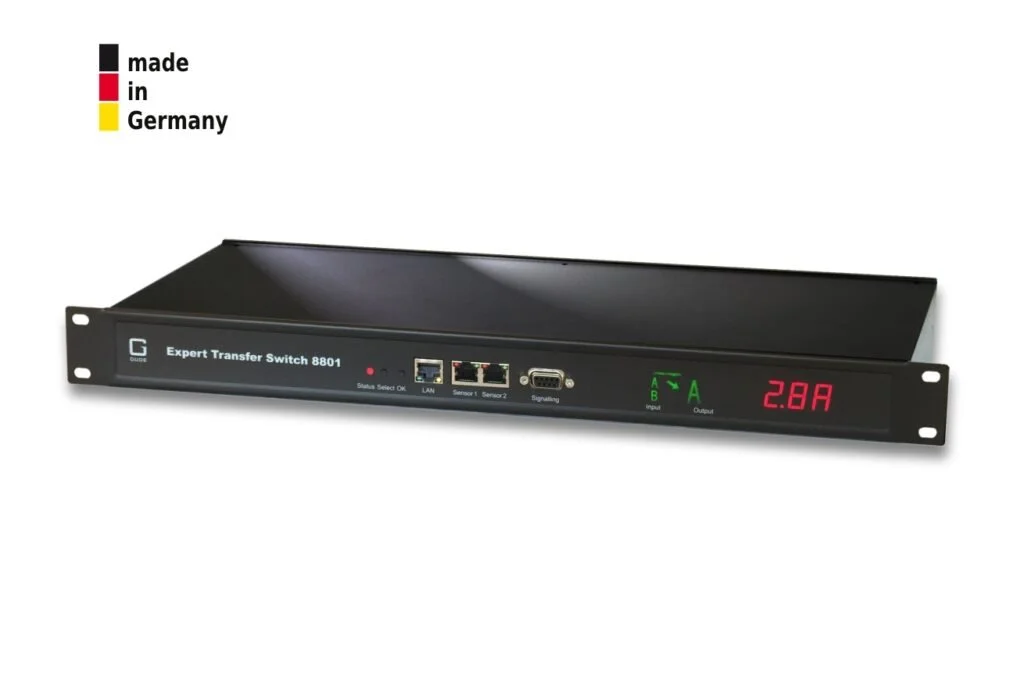

• Easy-to-read LED display for displaying total current, IP address and sensor values

• Firmware update via Ethernet during operation (no restart required)

• Simple and flexible configuration via web browser, Windows or Linux program

• Dynamic assignment of an IP address via DHCP or manual assignment of static IP address

• Rapid commissioning thanks to free and reliable drivers from our technology partners

Technical Details

• Measurement of key electrical parameters: current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)

• Measurement of residual current type A (mA)

• Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH

• WxHxD: 43.9 x 4.4 x 21.0 cm (without mounting brackets)

• Weight: approx. 2.5 kg

• Operating temperature: 0-50 °C

• Storage temperature: -20 – 70 °C

• Relative humidity: 0 – 95 % (non condensing)

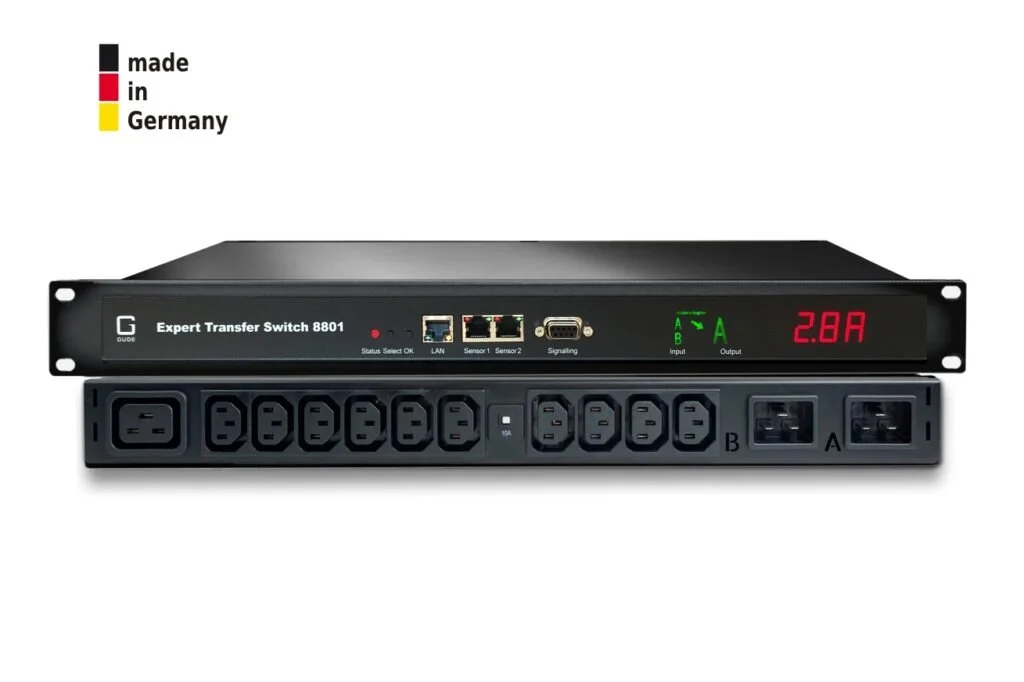

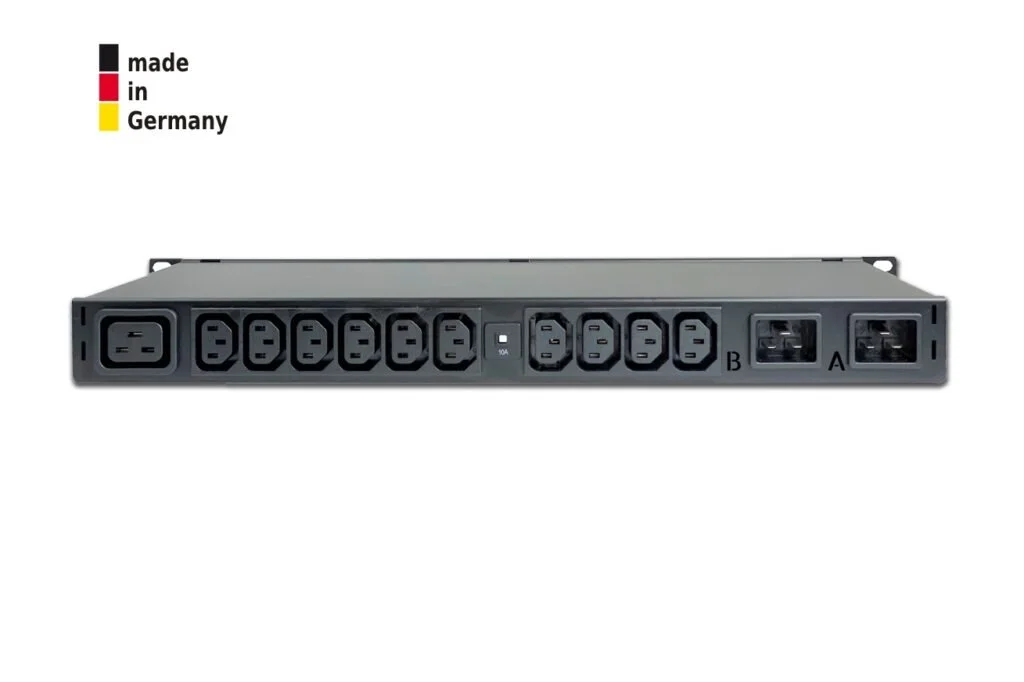

Electrical Connections

• 2 power supplies (IEC C20, max. 16 A, 230 V)

• 6 power ports IEC C13 (max. 10 A)

• 4 power ports IEC C13 (max. 10 A), protected by thermofuse

• 1 power port IEC C19 (max. 16 A)

• 1 Ethernet connector RJ45 (10/100 Mbit/s)

• Galvanic isolated signal output (Sub-D 9-pin)

• 2 sensor connectors (RJ45) for optional sensors

Order code

• 8801-3

Scope of delivery

• Expert Transfer Switch 8801-3

• 2 connector cables (saftey socket – IEC C19), length: 2 m

• Quick start guide

• Support for: HTTP/HTTPS (REST API) JSON, SNMP, Modbus TCP, Telnet, SSH und MQTT 3.1.1

• Overview of GUDE’s comprehensive API (Application Programming Interface)

• HTTP/HTTPS, E-Mail (SSL, SSH, STARTTLS)

• Configuration and control via Telnet and SSH

• NTP function can be activated

• Supports Syslog

• Supports RADIUS authentication

• 802.1X port authentication

• SNMPv1, v2c, v3 (Get/Traps)

• TLS 1.1, 1.2, 1.3

• IPv6-ready

Manual

Product Brief

Quick start guide

3D model

CE Declaration

PSTI Declaration

Firmware ETS 8801

Windows Config Tool

Linux System Tool

Locations

• Industrial environments: Production facilities, solar installations, manufacturing rooms, warehouses or test labs

• IT installations: distributed infrastructures, equipment rooms, KVM, network closets, server racks, 19″ cabinets, data centers or server rooms

• AV environments: Huddle rooms, conference rooms, theaters, cinemas, marine environments, smart home, meeting rooms, courtrooms, lecture halls in universities, LED walls or digital signage systems (DooH)

Application

• Protection of server and IT/AV devices

• Uninterrupted operation of PCs, servers, routers and switches

• Reduction of power consumption leading to less CO2 emmissions with detailed power monitoring

• Environment monitoring with plug-and-play sensors (temperature, humidity and air pressure)
