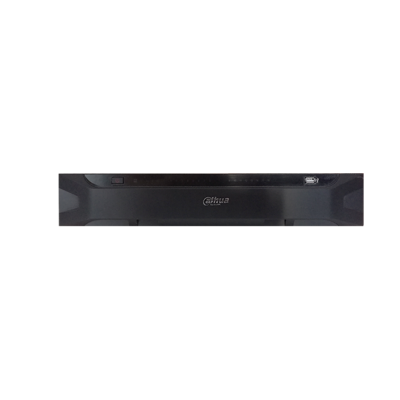

Dahua NVD0905DH-4I-4K
Ultra-HD Network Video Decode
Features
Designed for standalone operator viewers
H.265+/H.265/H.264/MJPEG/MPEG4/MPEG2 video decoding
Ultra-high decoding ability, up to 32MP
2ch HDMI and 2ch DVI-I input, 9ch HDMI output
Supports 1/4/6/8/9/16/25/36 and free split
Supports alarm, RS232, RS485
Splicing screens control for zoom/merge/roam/overlay
Description / Specs
-
Processor: Embedded processor
Operating System: LINUX
-
Video Format: H.265+/ H.265/ H.264/ MPEG4/ MPEG2/ MJPEG
Audio Format: PCM/G711/AAC
Decoding Capacity Separately: Port 1,2,3
Port 4,5,6
Port 7,8,9
1CH@32M
1CH@32MP(25fps)/3CH@12MP(15fps)/4CH@8MP/16CH@1080P/64CH@D1
1CH@32MP(25fps)/3CH@12MP(15fps)/4CH@8MP/16CH@1080P/64CH@D1 P(25fps)/3CH@12MP(15fps)/4CH@8MP/16CH@1080P/64CH@D1
Total Video Decoding: 3CH@32MP(25fps)/9CH@12MP(15fps)/12CH@8MP/48CH@1080P/108CH@720P/192CH@D1
Decoding Resolution: 32MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF
Video Output: 9ch HDMI
Display Resolution: 3840×2160(30fps)/2560×1600/1920×1080/1280×1024/1280×720/1024×768, only 6 ports support 3840×2160, the remaining 3 ports support 2560×1600
Video Input: 2 HDMI, 2 DVI-I
Collection Resolution: 3840×2160(HDMI 1)/1920×1080/1600×1200/1680×1050/1440×900/1400×1050/1366×768/1280×1024/1280×960/1280×800/1280×720/1152×864/1024×768/800×600, etc
Audio Output: 9ch HDMI (embedded)
Communication Interface: 2 RJ45 network port (10M/100M/1000M); 3 RS232(1 DB9, 2 RJ45); 1 RS485
Bi-directional Talk: 1 Pair 3.5mm jack (reserved) (2.0V Line in/50mV Mic in/10KΩ, 2.0V/16Ω out)
Alarm Input: 4ch
Alarm Output: 4ch relay out (30VDC 1A, 125VAC, 0.5A)
