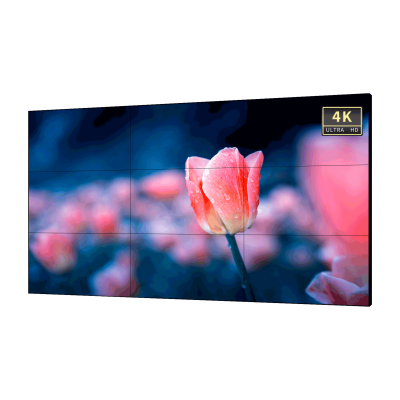

Dahua LS650KCM-EF

65’’ UHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm)

LS650KCM-EF
Enquire Us Now

Features

  • Industrial level ADS LCD panel, suitable for continuous 24h/7 operation

  • Ultra-narrow 3.5mm bezel-to-bezel design

  • Anti-glare panel, vivid and memorable image quality

  • Professional LED backlight technology for high color uniformity

  • Built-in 3D noise reduction system and picture splicing function

  • Abundant interfaces HDMI, DVI, VGA, DP (UHD daisy chain),

  • RS232, OPS, Audio

  • Up to 4K@60Hz signal input by DP IN or HDMI 1 interface, up to 4K@30Hz signal output by DP OUT interface

  • Infrared, RS232 dual mode, supporting remote control by computer

  • Professional thermal design to extend device lifespan

  • Built-in power, low energy consumption, ultra-quiet

  • Modular structure design, multiple installation modes

  • Widely used in surveillance center, command center, meeting room, commercial display scenes, etc.

Description / Specs

  • Model: DHI-LS650KCM-EF

    Diagonal Size: 65″(16:9)

    Panel Type: ADS

    Resolution: 3840×2160 (UHD)

    Bezel Width: 2.3mm (T/L), 1.2mm (B/R)

    Backlight: Direct LED

    Brightness: 500 cd/m²

    Contrast Ratio: 1200:1

    Pixel Density: 68dpi

    Viewing Angle: H178°, V178°

    Response Time (G-to-G): 8ms

    Color Depth: 8bit (16.7M)

    Color Temperature: 10,000K

    Surface Treatment: Haze 25%, 3H

    MTBF: 50,000h

  • Input: VGA(D-Sub)×1, DVI-D×1, HDMI×2, DP×1, RS232×1, Audio×1, OPS×1, IR×1

    Output: DP×1, RS232×1, Audio×1

    External Control: RJ45(LAN), USB

    Wi-Fi: Optional

    Speaker: 5W×2

    Smart Signage Platform: Media Publish System 3.0
