The new Promethean
experience

ActivPanel 10: The new
Promethean smart whiteboard

Tech your way, built to last.
The ideal workplace solution
designed for you.

You’re in control of your experience

Don’t conform. ActivPanel 10 fits your world.

A customized solution meets you exactly where you are.

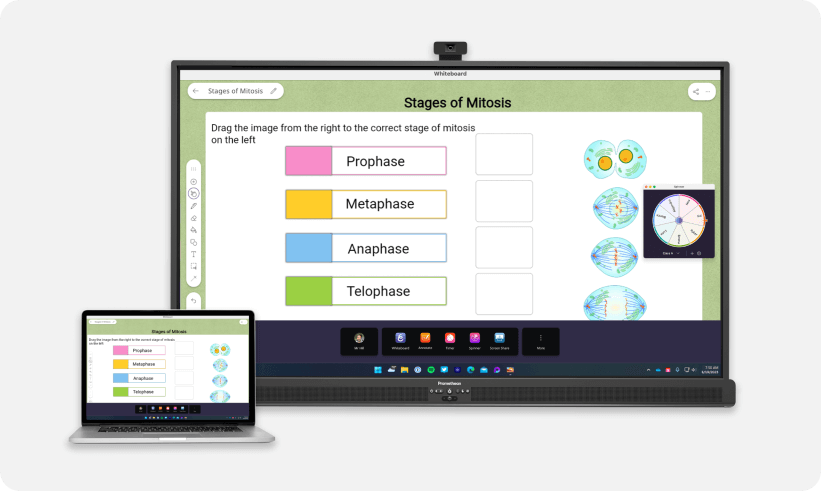

Stages of Mitosis on ActivPanel with connected laptop

Goodbye, cookie-cutter tech. Hello, custom fit.

ActivPanel 10 is all about intelligent options. Choose your ideal panel configuration—model, size, operating system, and accessories—with no compromises.

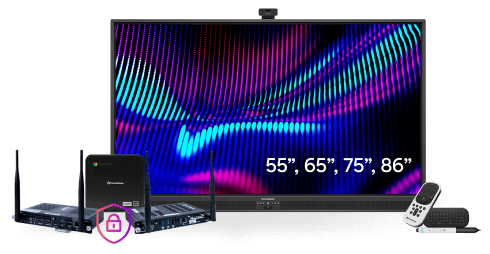

Custom fit hardware options

User-friendly, made friendlier

The ActivPanel 10 experience supports the most creative, productive you.

Classroom scene with ActivPanel

Raise the bar of excellence

Promethean ActivSuite

With our new software, your favorite ActivPanel engagement apps are accessible on your device to use at and away from the panel. Hello, enhanced freedom and flexibility!

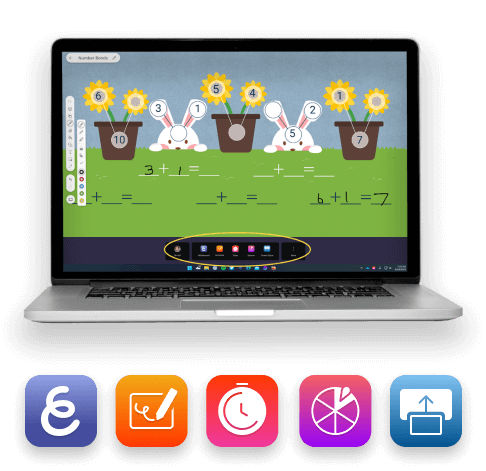

ActivSuite running on a laptop

An industry-leading display1

Get the full picture with reduced reflection, every-angle views, highly accurate color, and true-black contrast thanks to optical bonding, QLED, and FALD2. All that, and it saves energy3.

ActivPanel with vivid display

High tech, low footprint

ActivPanel 10 is Energy Star Certified, durably designed, consumes less power3, and comes with less packaging.

Aerial view of forest shaped like a heart

Intelligent features and accessories

Picture-in-picture

No more source switching, with touch-enabled Picture-in-picture! View and interact with two connected sources at the same time, change the layout, and choose what to bring into focus.

Meet your new experience

Book an ActivPanel 10 and Promethean ActivSuite demo to learn more!

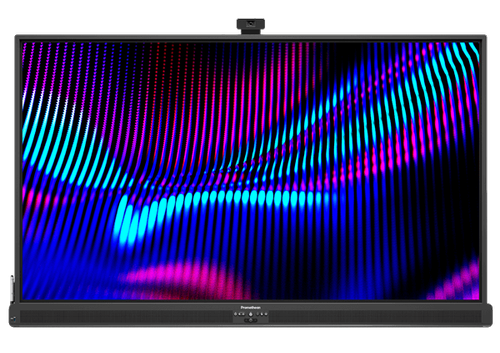

ActivPanel 10 Premium

ActivPanel 10 Premium

Available in

  • 55″ / 4K
  • 65″ / 4K
  • 75″ / 4K
  • 86″ / 4K

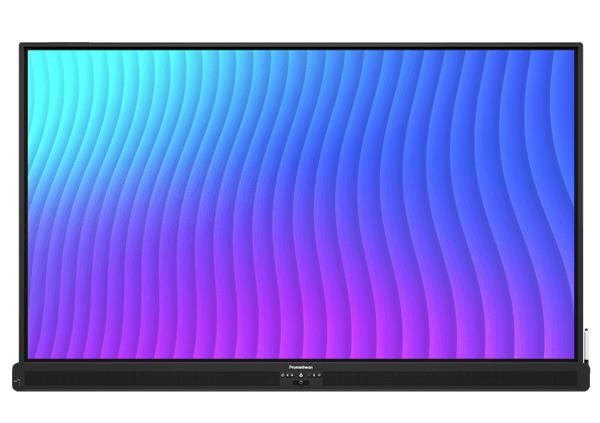

ActivPanel 10

ActivPanel 10

Available in

  • 65″ / 4K
  • 75″ / 4K
  • 86″ / 4K

Display

Optical bonded glass
Zero bonded glass
QLED high density direct LED backlight
Direct LED backlight
From 940 cd/m²
From 500 cd/m²
9H glass hardness
9H glass hardness
Up to 900,000:1 dynamic contrast ratio
5000:1 dynamic contrast ratio
Blue light reduction
Blue light reduction
Ambient light sensor
Ambient light sensor
LED Lifespan
50,000 hours
LED Lifespan
50,000 hours

Interactivity

Vellum Writing Technology
Vellum Writing Technology
50 Continuous touch points
40 Continuous touch points
Pen and touch differentiation
Pen and touch differentiation
Palm erase
Palm erase
Palm rejection
Palm rejection
Writing-hand rejection
Writing-hand rejection
Touch-enabled Picture-in-picture
Touch-enabled Picture-in-picture
1 × Active pen
(air mouse, pressure sensitivity, red dot highlighter, pagination control)
—
On-panel active pen charging
On-panel active pen charging capability
Passive pens
Yes, 2
Passive pens
Yes, 2

Connectivity

OPS Slot — 1
OPS Slot — 1
HDMI in — 2
HDMI in — 2
HDMI out — 1
HDMI out — 1
100 W power delivery USB-C — 1
100 W power delivery USB-C — 1
65 W power delivery USB-C — 1
—
USB-A Ports — 6
USB-A Ports — 5
USB-B Ports (Touch) — 3
USB-B Ports (Touch) — 3
Display port — 1
Display port — 1
LAN — In/Out (10/100/1000)
LAN — In/Out (10/100/1000)
Promethean ePTZ 4K Cam mount (USB-C) — 1
—

Audio

Integrated soundbar
2 × 25 W
—
—
Front Facing Speakers
2 × 20 W
Subwoofer
1 × 20 W
—
Microphone Array
8
—

Computing

Intelligent, OS-agnostic
Intelligent, OS-agnostic
Promethean Chromebox (Chrome OS) compatible
Promethean Chromebox (Chrome OS) compatible
Promethean OPS-M (Windows) compatible
Promethean OPS-M (Windows) compatible
Promethean OPS-A (Android, EDLA certified) compatible
Promethean OPS-A (Android, EDLA certified) compatible

Promethean software included

Promethean ActivSuite™
Promethean ActivSuite™
Promethean Lesson Delivery Software (ActivInspire)
ActivInspire Professional Single User
Promethean Lesson Delivery Software (ActivInspire)
ActivInspire Professional Single User

Spec Sheets

Download Download
  1. ActivPanel 10 Premium visual specifications include the above, plus 950,000:1 dynamic contrast ratio, and brightness from 880 cd/m².
  2. ActivPanel 10 has best-in-class specifications including 5,000:1 dynamic contrast ratio, brightness from 500 cd/m², and blue light reduction.
  3. FALD – full array local dimming.
  4. Energy savings results are variable.
  5. Intelligent accessories vary by model and region.
  6. ePTZ – electronic pan, tilt, and zoom.
